Features

• Secure Electrical Connection - Users can maintain a proper electrical connection between EMT and flexible metal conduit or duplex AC/MC cable
• Zinc Die Cast Body - The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
• Easier And Faster Installation - This coupling is easier and faster to install and offers labor savings as compared to traditional junction box installation
• Set Screw Type - The combination transition coupling features a set screw type end to secure the EMT

Certifications and Standards

• UL-514B

Specifications

• Country of Origin: China
• Length: 2.99 in
• Width: 1.98 in
• Weight: 2.73 lbs
• BPT Trade Size: 1/2"

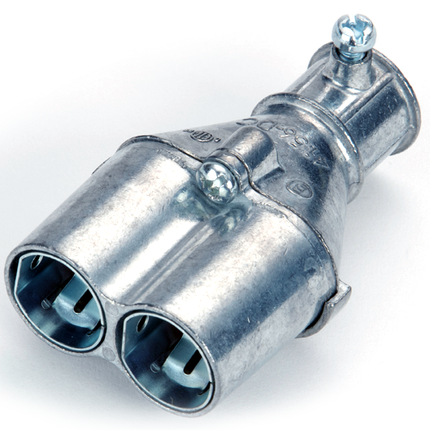

• Field Application: Set Screw EMT to duplex push-in cable type transition fitting, ideal for commercial and institutional facilities. The 4156-DC is used to securely join 1/2" EMT to two 14/2 to 10/3 (.43" to .61" Diameter) AC/MC/MCI-A/HCF/HCFMCI-A or 3/8" flexible metal conduit. These fittings provide a huge labor savings, compared to the traditional junction box or fitting assembly installation. When using AC/MC/FMC cable simply remove the armor and expose the conductors to the desired length needed to reach the device box or enclosure. The inspection holes will provide a visual end stop for the cable or flex conduit. The use of anti short bushings is recommended. Tighten the steel screws for the 1/2" EMT conduit. Patented.
• FINISH: Ball burnished, mirror smooth
• MATERIAL: Zinc Die Cast
• NEMA Rating: FB-1
• WARRANTY: 1 Year
