Features

• Fast and Easy Installation - Simply remove center screw and slide fitting over one end of the conduit and move the other conduit into place
• Steel Body - The steel body is naturally resistant to corrosion for long-term use in non-acidic environments
• Tight Installations - The slip coupling is perfect for tight conduit installations or limited access applications
• Tri-Drive Set Screws - The slip coupling comes equipped with set screws to ensure both ends of EMT conduit are held securely in place

Certifications and Standards

• Listed ETL Conforms to UL STD 514B Certified to CAN/CSA STD. C22.2 No. 18.3

Specifications

• Country of Origin: China
• Length: 5.252 in
• Width: 4.995 in
• Weight: 15.54 lbs
• BPT Trade Size: 4"

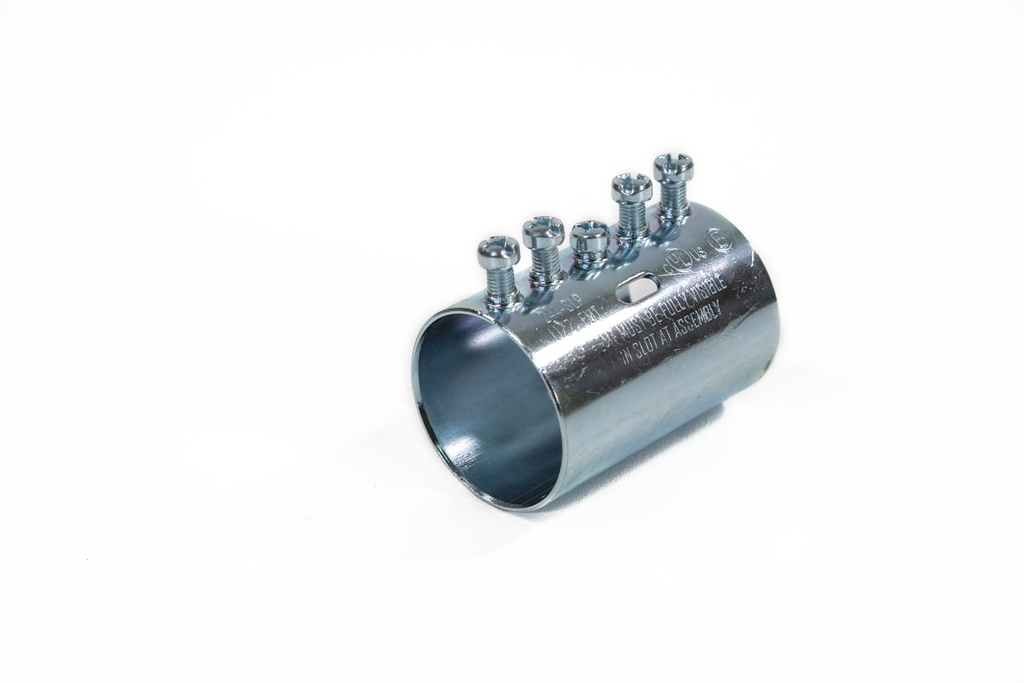

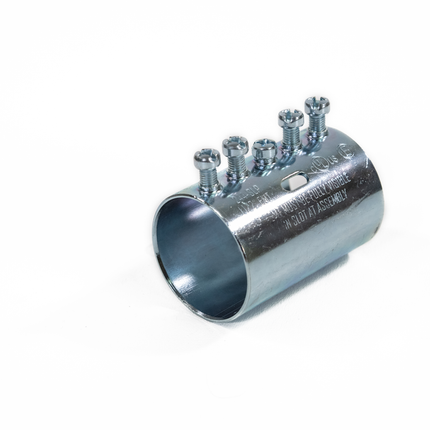

• Field Application: Mighty-Align® "Slip" Style Coupling - Used to join two lengths of EMT together. Backing out center screw allows the slip coupling to be temporarily located on one cut end while adjacent end is slid into place. Back out center screw stop as necessary to slip coupling over conduit. Fully install center screw stop between conduits. Ensure that both ends of conduit are visible in sight hole. Tighten all set screws. Patented
• FINISH: Zinc Plated
• MATERIAL: Steel
• NEMA Rating: FB-1
• WARRANTY: 1 Year
