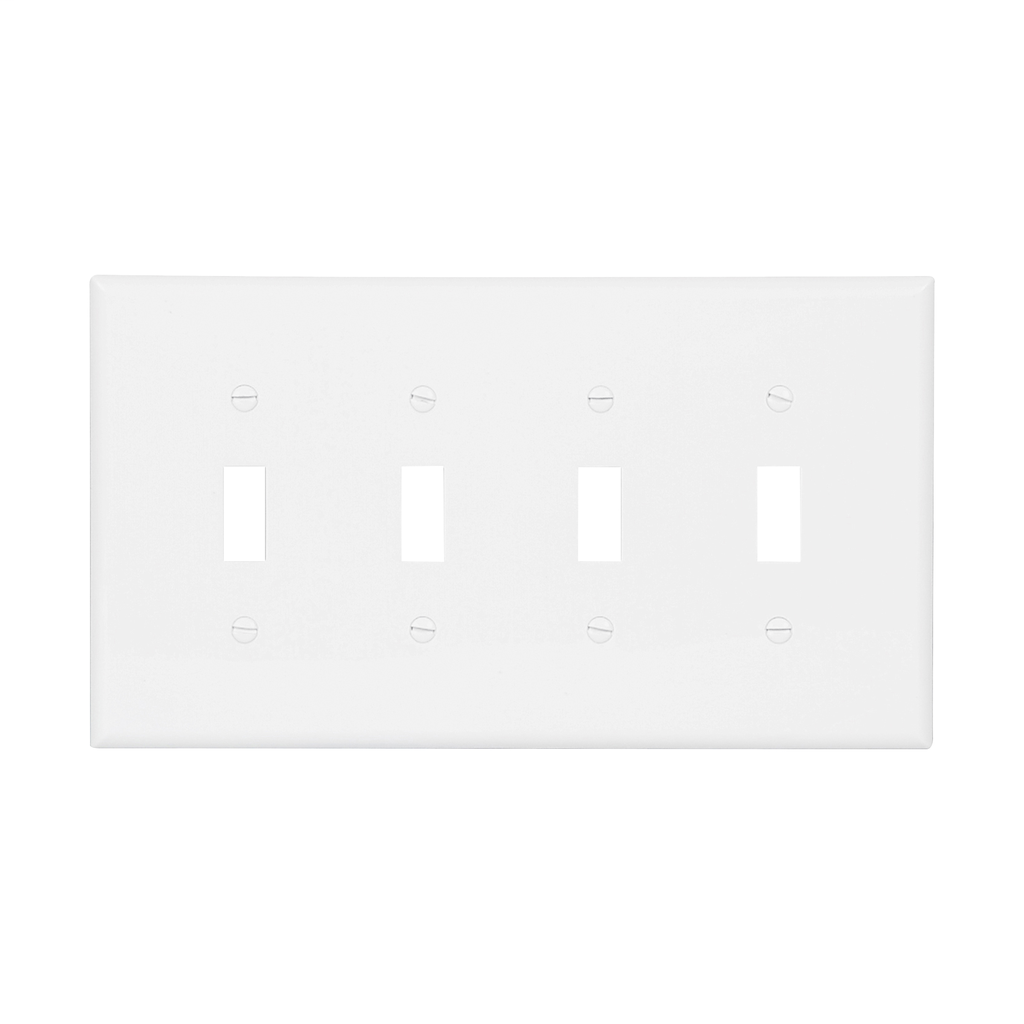

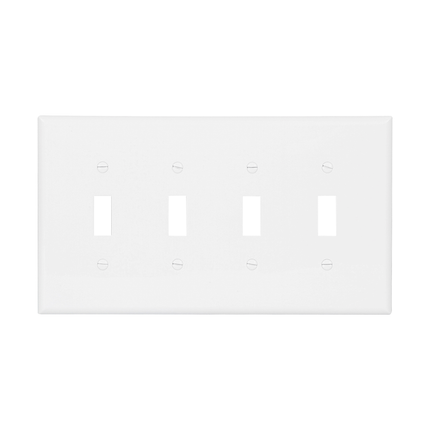

Mid-size Toggle Switch Wallplate - Polycarbonate Electrical Wallplate

The Mid-size Toggle Switch Wallplate by Cooper Wiring Devices is designed for use in electrical distribution and lighting solutions where a durable, specification-grade wallplate is required. This product is suitable for commercial, institutional, and industrial applications, providing reliable coverage for toggle switches with a mid-size configuration that offers additional wall coverage compared to standard sizes. Made from polycarbonate, it ensures high impact resistance and a high gloss, soil-resistant finish, making it ideal for high-traffic areas served by wire and cable and switchgear suppliers.

Specifications

• Material: Polycarbonate
• Color: White
• Product Weight: 0.1450 lbs
• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: PJ4W
• Wallplate Size: Mid-size (4.87" height x 3.12" width per gang)
• UL Listing: UL Listed to UL 514D, file no. E33216; cUL Listed to C22.2, no. 42.1
• Flammability Rating: UL94, 5VA rated
• Temperature Rating: -40º to 70ºC (-40ºF to 158ºF)
• Inner Wallplate Thickness: 0.071" thick polycarbonate (PJS Series)

Features

• Specification-grade thermoplastic construction for durability and impact resistance
• High gloss finish that is soil-resistant for easy maintenance
• Mid-size configuration provides additional wall coverage for retrofit or new installations
• Injection molded manufacturing process ensures consistent quality and strength
• Compatible with 1 to 6 gang toggle switch configurations
• Exclusive time-saving screw catch feature holds mounting screws captive and simplifies installation (general to Arrow Hart wallplates)

Downloads & Links

• Spec Sheet
