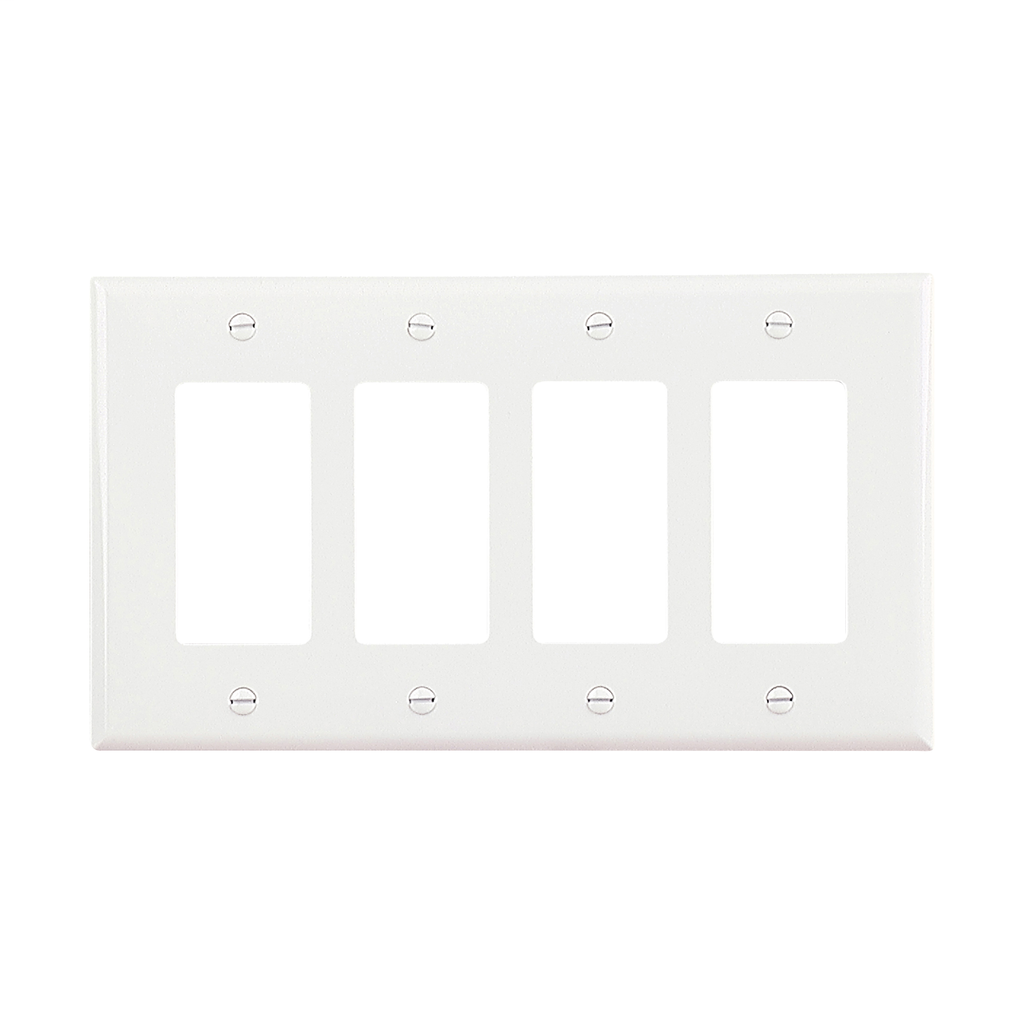

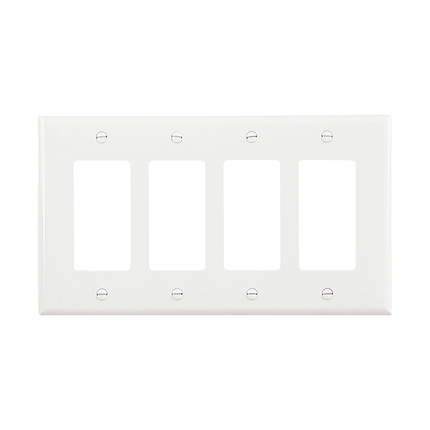

Mid-size Decorator Wallplate – Electrical Wallplate Solutions

The Mid-size Decorator Wallplate by Cooper Wiring Devices is designed for electrical distributors and lighting solutions providers seeking durable and precise wallplate options for wire and cable installations. This polycarbonate wallplate is suitable for commercial, industrial, and institutional applications requiring additional wall coverage beyond standard sizes. It offers a balance of rugged construction and aesthetic appeal for switchgear suppliers and electrical contractors.

Specifications

• Material: Polycarbonate
• Color: White
• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: PJ264W
• Product Weight: 0.1250 lbs
• Wallplate Size: Mid-size (approx. 4.87" height x 8.56" width for 4-gang, per Eaton K-5 and K-14)
• Flammability Rating: UL94 5VA rated
• Temperature Rating: -40º to 70º C (-40ºF to 158ºF)
• UL Listed to UL 514D, file no. E33216
• cUL Listed to C22.2, no. 42.1
• Inner Wallplate Thickness: 0.071" thick polycarbonate (PJS Series)

Features

• Injection molded polycarbonate construction for impact resistance and durability
• Mid-size design provides additional wall coverage for retrofit and new installations
• High gloss finish that is soil-resistant for easier maintenance
• Exclusive time-saving screw catch feature holds mounting screws captive for simplified installation
• Specification grade thermoplastic preferred for industrial and high-traffic environments
• Compatible with decorator-style devices and outlets
• Meets industry standards for mounting hole spacing and plate opening dimensions

Downloads & Links

• Spec Sheet
