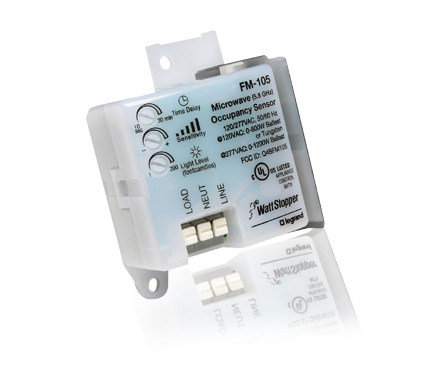

Microwave Occupancy Sensor FM-105 - High Frequency Occupancy Sensor

The FM-105 Microwave Occupancy Sensor is a line voltage sensor designed to control lighting based on occupancy detection and ambient daylight levels. Utilizing high frequency electromagnetic waves and the Doppler principle, it detects motion even through many non-metallic materials, allowing installation behind fixture lenses or hidden from view. This sensor is suitable for applications requiring reliable occupancy sensing, such as stairwells, hallways, outdoor wall sconces, wall packs, and pedestrian-scale luminaires. It is an effective solution for electrical distributors and lighting solutions providers offering wire and cable and switchgear products integrated with advanced sensor technology.

Specifications

• Voltage: 120/277VAC, 50/60 Hz
• Load Capacity: 0-800W ballast or tungsten at 120VAC; 0-1200W ballast at 277VAC
• Light Level Adjustment: 2-200 footcandles
• Range/Sensitivity: Up to 20 feet (6.1 meters)
• Time Delay: Adjustable from 10 seconds to 30 minutes
• Operating Frequency: 5.8 GHz
• Power Output: 1 mW (similar or less than a cell phone)
• Dimensions: 2.0" x 3.09" x 1.63" (51.0 mm x 78.5 mm x 41.4 mm) L x W x D
• Weight: 2.3 oz (65.2 g)
• Operating Temperature Range: -4°F to 131°F (-20°C to 55°C)
• Certifications: FCC approved, UL and CUL listed
• Country of Origin: China
• Warranty: Five year warranty

Features

• Detects motion through low-density fixture materials such as polycarbonate, acrylic, and glass diffusers
• Hold-off daylighting control to prevent lighting activation when ambient light exceeds setpoint
• Adjustable time delay, sensitivity, and daylighting setpoint via trimpots
• Omni-directional coverage pattern with up to 20-foot detection range
• Mounts behind fixture lenses or inside luminaires, hidden from view
• Simple line voltage wiring without need for a power pack
• Mounting bracket and foot provide flexible installation options and multiple mounting positions
• Complies with RoHS material restrictions
