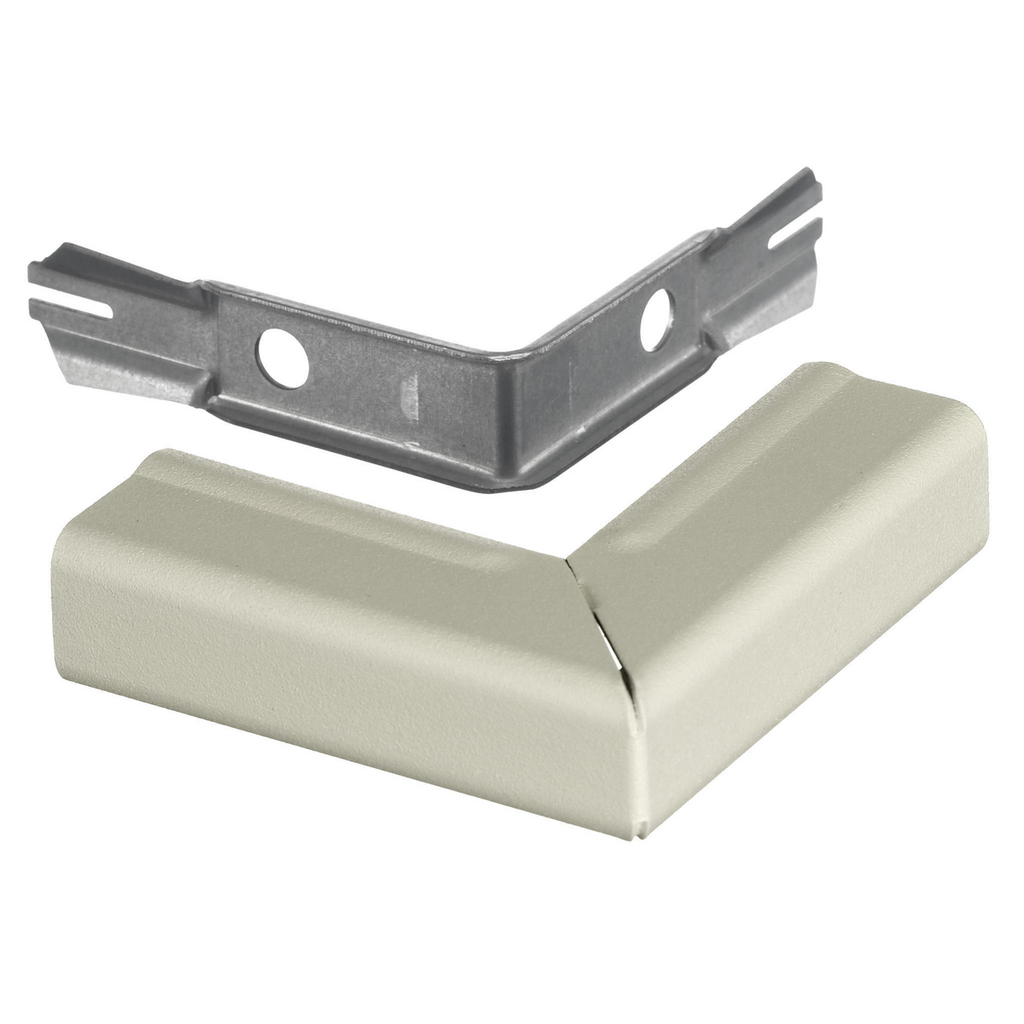

Metal Raceway External Elbow HBL500/700 Series

This Metal Raceway External Elbow is designed for use in electrical distribution systems, providing a reliable solution for wire and cable routing in lighting and switchgear applications. It is compatible with the HBL500, HBL700, and HBL750 series raceways, facilitating smooth directional changes in metal raceway installations. Ideal for electrical distributors and contractors requiring durable raceway components for non-hazardous locations.

Specifications

• Application: External Elbow
• Material: Steel
• Finish: Ivory
• Color: Ivory
• Construction: Roll Form
• Dimensions: 2.59 in (Height) x 2.59 in (Length) x 0.9 in (Width)
• Nominal Cross Section: 0.40 Square Inches
• Product Weight: 0.2000 lbs
• Knockouts: None
• Non-Hazardous Location: Yes
• Country of Origin: China
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL718IVA

Features

• Designed for smooth directional transitions in metal raceway systems
• Durable steel construction with roll-formed design for strength and stability
• Ivory finish for consistent appearance with compatible raceway components
• Suitable for non-hazardous location installations
• Compatible with HBL500, HBL700, and HBL750 series raceways
• No knockouts, ensuring a clean and secure installation
