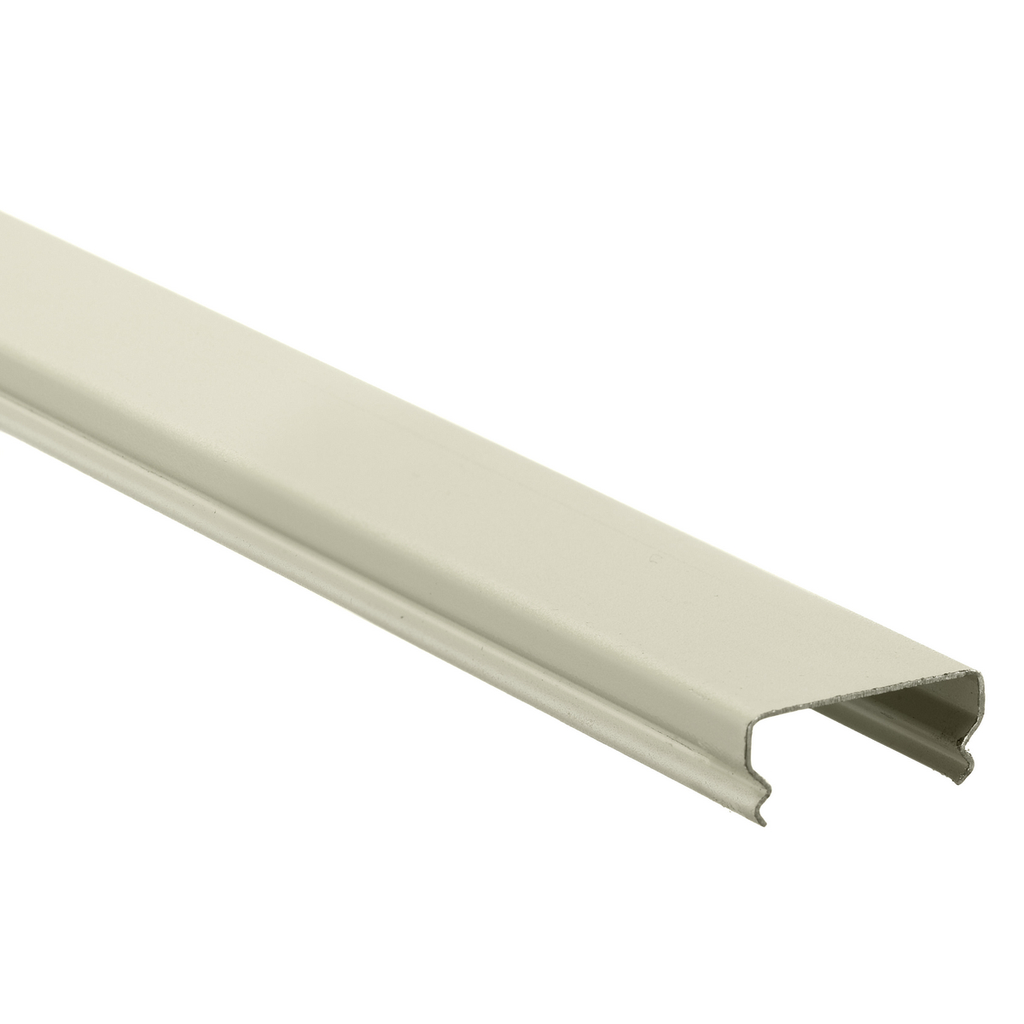

Metal Raceway, 5' Cover, HBL2000 Series, Ivory
SKU: #141826
Part: #HBL2000CAIV
UPC: 783585214078
Metal Raceway, 5' Cover, HBL2000 Series, Ivory
SKU: #141826
Part: #HBL2000CAIV
UPC: 783585214078
Next day delivery
Description
Metal Raceway, 5' Cover, HBL2000 Series, Ivory - Electrical Raceway Cover
This metal raceway cover from the HBL2000 Series by Bryant is designed for electrical distributors and switchgear suppliers requiring durable wire and cable management solutions. It serves as a removable cover only, rated for up to 600V AC applications, suitable for higher capacity power installations in non-hazardous locations. The cover is constructed of steel with an ivory finish, providing a reliable enclosure with a NEMA 1 rating.
Specifications
- Application: Cover Only (600V)
- Material: Steel
- Finish: Ivory
- Color: Ivory
- Length: 60 in
- Width: 1.31 in
- Height: 0.83 in
- Cover Thickness: 0.040 in (1.016 mm)
- Nominal Cross Section: 0.89 Square Inches
- Enclosure: NEMA 1 Rating
- Construction: Roll Form
- Knockouts: None
- Electrical Rating: 600V AC
- Non-Hazardous Location: Yes
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer Part Number: HBL2000CAIV
- UPC: 783585214078
- Industry Standards: CSA Standard C22.2 No. 62, UL Standard UL 5
Features
- Higher capacity power applications support
- Removable cover design for easy access and maintenance
- Durable steel construction with a galvanized finish for corrosion resistance
- Ivory color finish for aesthetic integration in various environments
- Complies with CSA and UL electrical safety standards
- Suitable for use with HBL2000 and HBL2000A raceway systems
