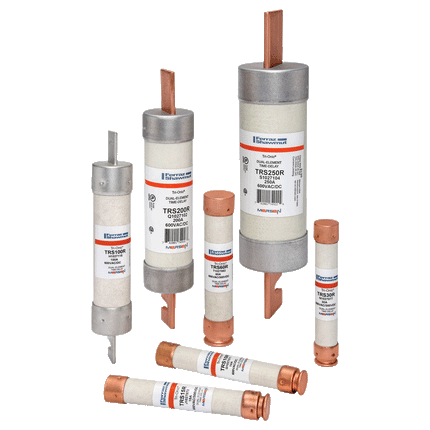

MERSEN TRS2R 600V 2A Fuse – Electrical Fuse for Motor Circuits and General-Purpose Equipment

The MERSEN TRS2R 600V 2A fuse is designed for use in motor circuits, mains feeders, branch circuits, transformers, service entrance equipment, and general-purpose electrical equipment. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable overcurrent protection in wire and cable installations and lighting solutions.

Specifications

• Manufacturer: Mersen (Formerly Ferraz Shawmut)
• Manufacturer Part #: TRS2R
• Voltage Rating: 600 V
• Amperage Rating: 2 A
• Interrupt Rating: 200 kA
• Class: Class RK5
• Dimensions (L x W x H): 5 in x 0.81 in x 0.81 in
• Weight: 0.1370 lb
• Connection Type: Ferrule
• Mounting: Clip
• UPC: 782001748647

Features

• High interrupting capacity of 200 kA for enhanced safety and reliability
• Compact size with standardized dimensions for easy integration into electrical panels
• Class RK5 fuse providing time-delay protection suitable for motor circuits and general-purpose equipment
• Clip mounting simplifies installation and replacement
• Ferrule connection ensures secure electrical contact

Downloads & Links

• Spec Sheet
