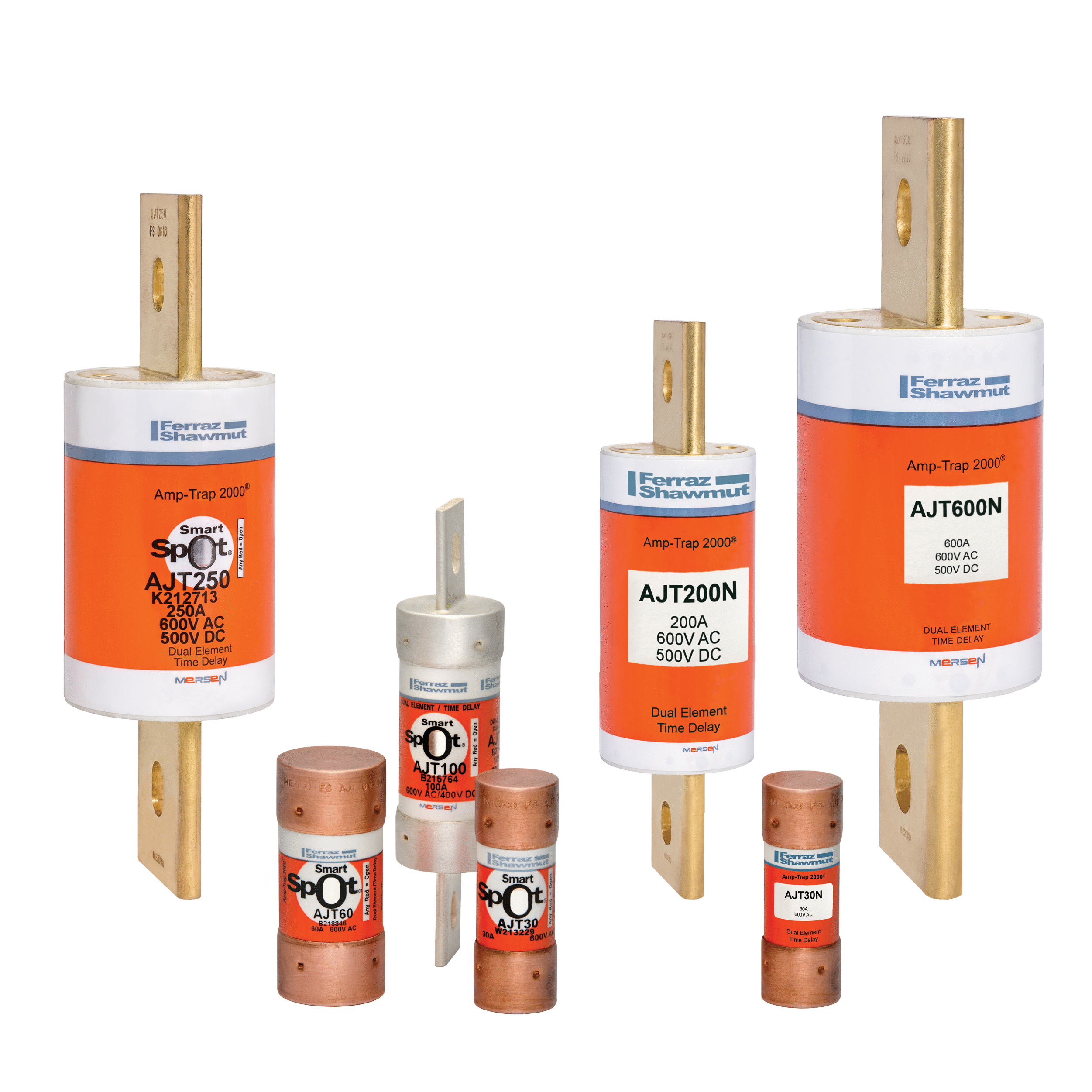

MERSEN AJT6N 600V 6A Class J Fuse – Electrical Distributor Lighting Solutions

The MERSEN AJT6N is a Class J time-delay fuse rated for 600 volts and 6 amperes, designed for use in motor circuits, mains feeders, branch circuits, lighting, heating, and general loads. This fuse is suitable for transformers, control panels, circuit breaker back-up, bus ducts, and load centers, making it a reliable component for electrical distributors and lighting solutions providers requiring durable wire and cable protection and switchgear supply.

Specifications

• Manufacturer: Mersen (Formerly Ferraz Shawmut)
• Manufacturer Part #: AJT6N
• Amperage Rating: 6 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kA
• Class: Class J
• Mounting: Clip
• Connection: Ferrule
• Dimensions (L x W x H): 2.25 in x 0.81 in x 0.81 in
• Product Weight: 0.0970 lbs
• UPC: 782001498122

Features

• Time-delay fuse providing reliable protection for motor and general electrical circuits
• Compact design with clip mounting for easy installation in control panels and load centers
• Ferrule connection ensuring secure and efficient electrical contact
• High interrupt rating of 200 kA for enhanced safety and fault tolerance
• Class J rating suitable for a wide range of industrial and commercial applications

Downloads & Links

• Spec Sheet
