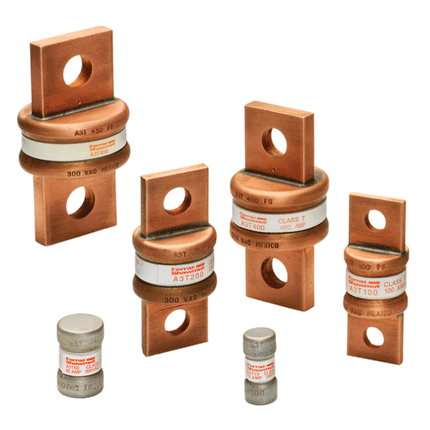

MERSEN A6T70 600V 70A CLASS T FUSE
SKU: #405688
Part: #A6T70
UPC: 782001891404
Mersen (Formerly Ferraz Shawmut)
MERSEN A6T70 600V 70A CLASS T FUSE
SKU: #405688
Part: #A6T70
UPC: 782001891404
Description
MERSEN A6T70 600V 70A CLASS T FUSE - Electrical Fuse for Load Centers and Panelboards
The MERSEN A6T70 Class T fuse is designed for use in electrical distribution systems, including load centers, panelboards, switchboards, circuit breakers, and metering centers. This fuse provides reliable overcurrent protection with a 600V rating and a 70A amperage capacity, suitable for industrial and commercial electrical applications. It is a critical component for electrical distributors and switchgear suppliers looking to ensure system safety and compliance.
Specifications
- Name: MERSEN A6T70 600V 70A CLASS T FUSE
- Amperage Rating: 70 A
- Voltage Rating: 600 V
- Class: Class T
- Interrupt Rating: 200 kA
- Mounting: Bolted
- Connection: Blade
- Dimensions (L x W x H): 2.95 in x 0.82 in x 0.82 in
- Product Weight: 0.1040 lbs
- Manufacturer: Mersen (Formerly Ferraz Shawmut)
- Manufacturer Part #: A6T70
Features
- High interrupting rating ensures protection against high fault currents.
- Class T fuse design for fast-acting overcurrent protection.
- Compact dimensions suitable for installation in confined electrical panels and switchgear.
- Bolted mounting and blade connection provide secure and reliable installation.
- Compatible with a wide range of electrical distribution equipment including load centers, panelboards, and switchboards.
