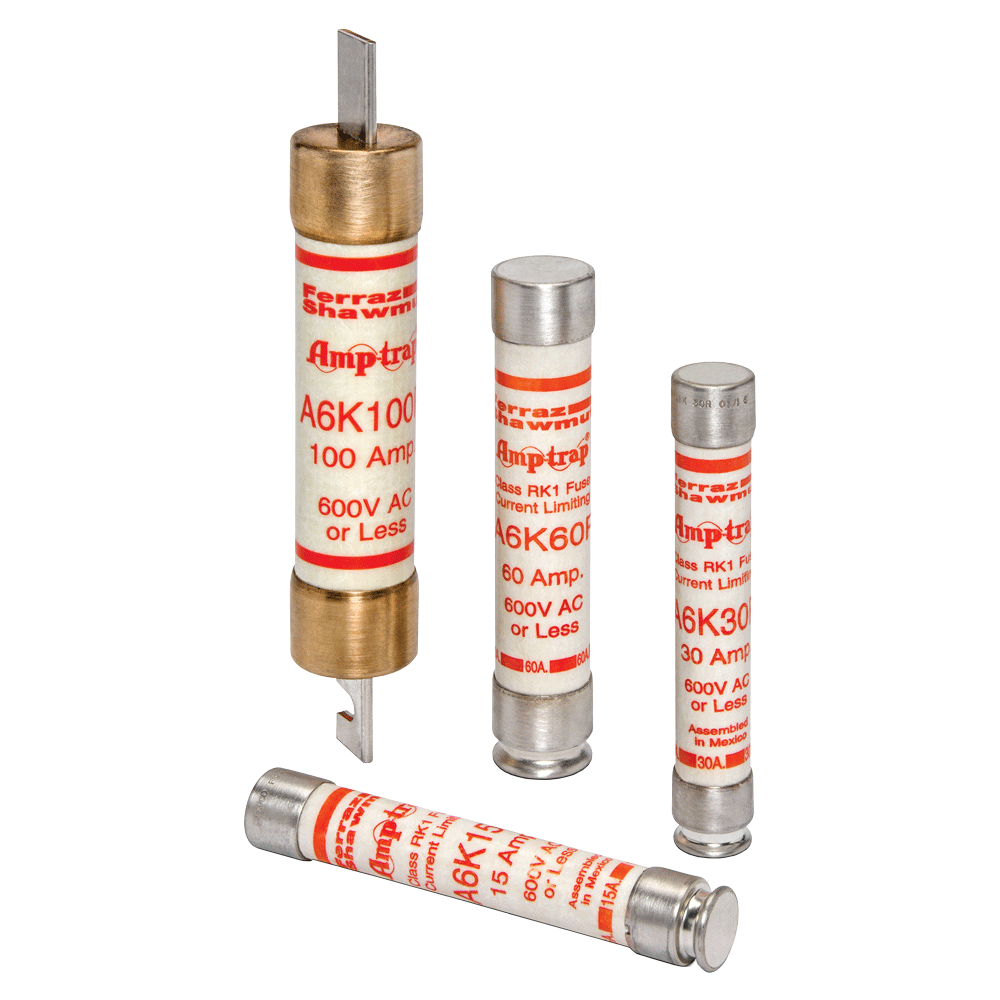

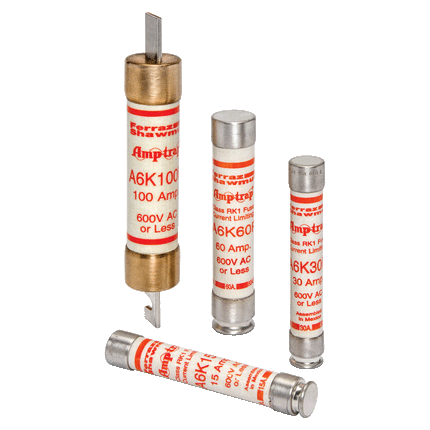

MERSEN A6K150R 600V 150A RK1 Fuse – Electrical Fuse for Load Centers and Switchgear

The MERSEN A6K150R is a Class RK1 fuse designed for use in electrical distribution systems, including load centers, panelboards, switchboards, bus ducts, feeder circuits, and lighting circuits. This 600V, 150A fuse provides reliable protection for non-inductive loads and lighting circuits, making it suitable for a variety of industrial and commercial electrical applications. As a component supplied by a trusted electrical distributor, it supports safe and efficient current interruption in switchgear assemblies.

Specifications

• Manufacturer: Mersen (Formerly Ferraz Shawmut)
• Manufacturer Part #: A6K150R
• Class: Class RK1
• Voltage Rating: 600 V
• Amperage Rating: 150 A
• Interrupt Rating: 200 kA
• Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
• Mounting: Clip
• Connection Type: Blade
• Product Weight: 1.46 lbs
• Application: Load centers, panelboards, switchboards, bus duct, feeder circuits, non-inductive loads, lighting circuits
• UPC: 782001915780

Features

• Class RK1 fuse providing high interrupting capacity of 200 kA for enhanced circuit protection
• Blade connection and clip mounting for secure and easy installation in electrical panels
• Compact dimensions suitable for standard fuse holders in commercial and industrial switchgear
• Rated for 600V operation, compatible with a wide range of electrical distribution equipment
