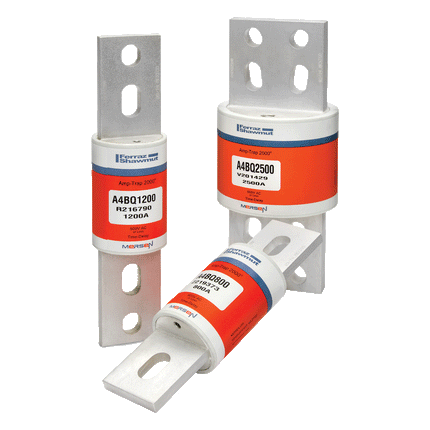

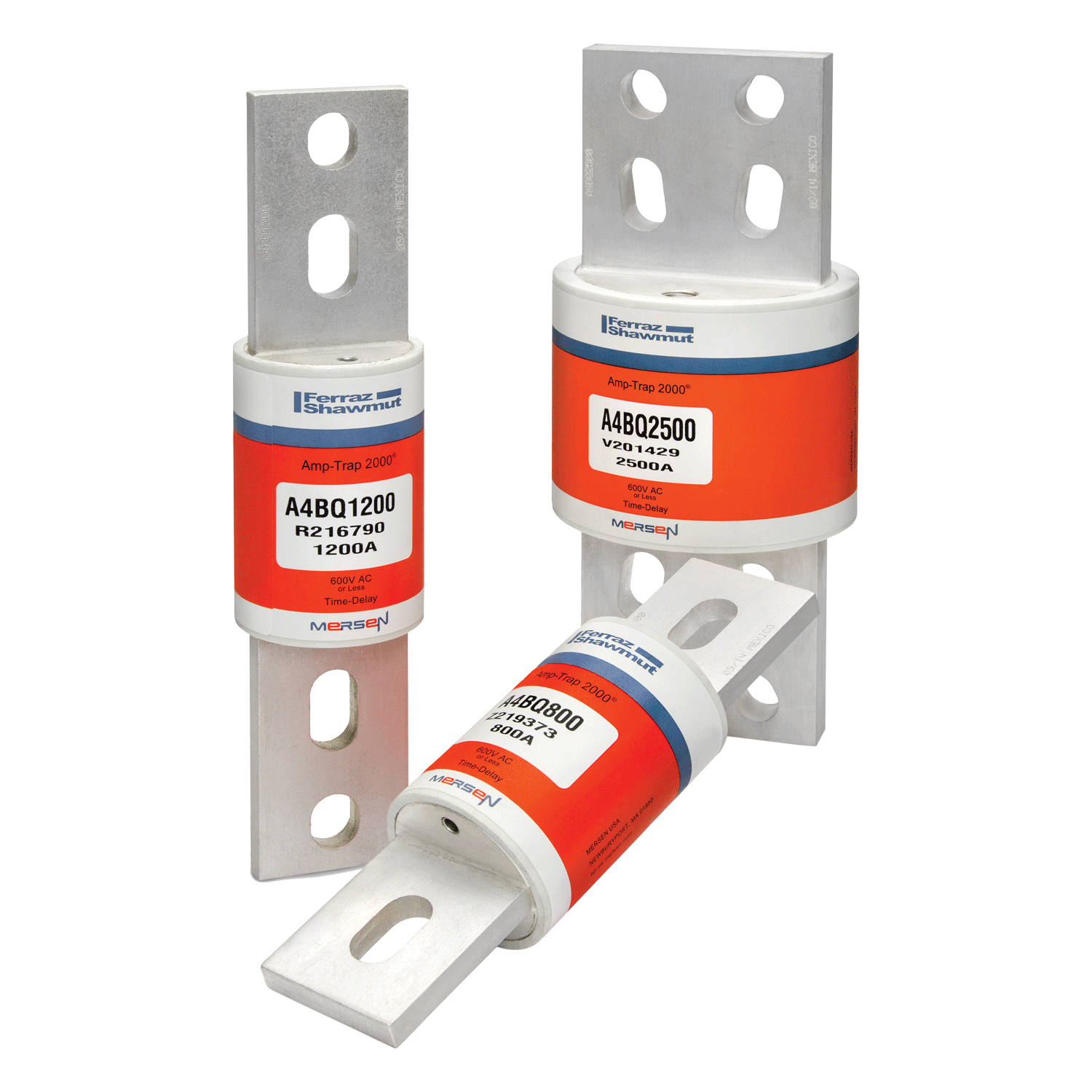

MERSEN A4BQ1500 L TD FUSE 600V 1500A A4BQ Fuse

The MERSEN A4BQ1500 L TD fuse is designed for high-capacity electrical protection in applications such as mains feeders, large motors, lighting, heating, and general loads. It is suitable for use as a circuit breaker backup and for DC-rated applications including UPS DC links and battery disconnects. This fuse is ideal for electrical distributors and switchgear suppliers seeking reliable, high-interrupt rating protection solutions.

Specifications

• Amperage Rating: 1500 A
• Interrupt Rating: 200 kA
• Voltage Rating: 600 V
• Class: Class L
• Connection: Blade
• Mounting: Bolted
• Dimensions (L x W x H): 10.75 in x 3 in x 3 in
• Product Weight: 5.97 lbs

Features

• High interrupt rating ensures safety in demanding electrical environments
• Class L fuse providing fast and reliable protection
• Blade connection allows for secure and easy installation
• Bolted mounting ensures stable and durable fixture
• Designed for both AC and DC applications, including UPS and battery systems
• Manufactured by Mersen (Formerly Ferraz Shawmut), a trusted name in electrical protection

Downloads & Links

• Spec Sheet
