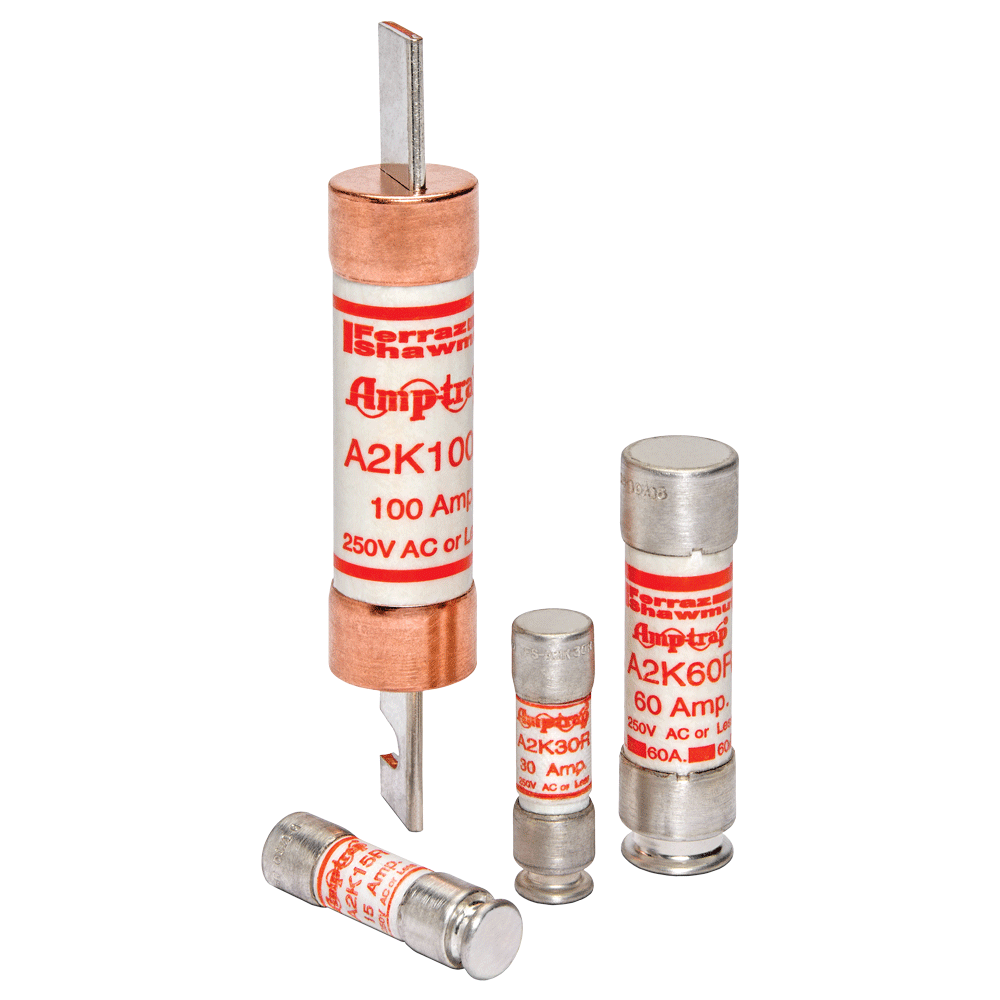

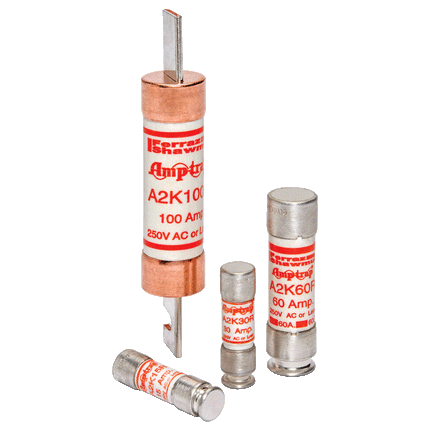

MERSEN A2K600R 250V 600A RK1 Fuse – Electrical Fuse for Load Centers and Switchgear

The MERSEN A2K600R is a Class RK1 amp-trap fuse designed for use in electrical distribution systems including load centers, panelboards, switchboards, bus ducts, feeder circuits, and lighting circuits. Suitable for non-inductive loads, this fuse provides reliable overcurrent protection with a 600 ampere rating and a 250-volt capacity. It is an essential component for electrical distributors and switchgear suppliers seeking durable and high-performance fuses for wire and cable protection.

Specifications

• Manufacturer: Mersen (Formerly Ferraz Shawmut)
• Manufacturer Part #: A2K600R
• Class: Class RK1
• Amperage Rating: 600 A
• Interrupt Rating: 200 kA
• Voltage Rating: 250 V
• Dimensions (L x W x H): 10.38 in x 2.56 in x 2.56 in
• Mounting: Clip
• Connection Type: Blade
• Product Weight: 2.9390 lbs
• UPC: 782001915414

Features

• Designed for use in load centers, panelboards, switchboards, bus ducts, feeder circuits, and lighting circuits
• Provides reliable overcurrent protection for non-inductive loads
• Class RK1 fuse type ensures fast and safe interruption of faults
• Blade connection and clip mounting facilitate easy installation and replacement
• High interrupt rating of 200 kA supports robust system protection

Downloads & Links

• Spec Sheet
