MEGS400QT Lighting Floodlight

The MEGS400QT is a high-performance 400-watt metal halide floodlight designed for commercial and industrial lighting applications. It delivers 50,000 lumens with an efficacy of 107 lumens per watt, making it suitable for outdoor illumination needs. This product is ideal for electrical distributors and lighting solutions providers seeking reliable, durable floodlighting with advanced features such as adjustable beam spread and weatherproof construction.

Specifications

• Input Wattage: 464 watts
• Lumens: 50,000 lumens
• Efficacy: 107 lumens per watt
• Lens Material: Thermal tempered shock resistant glass, 5/32" thick
• Product Weight: 35.2 lbs

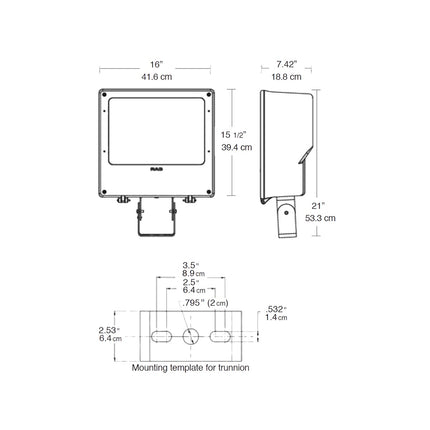

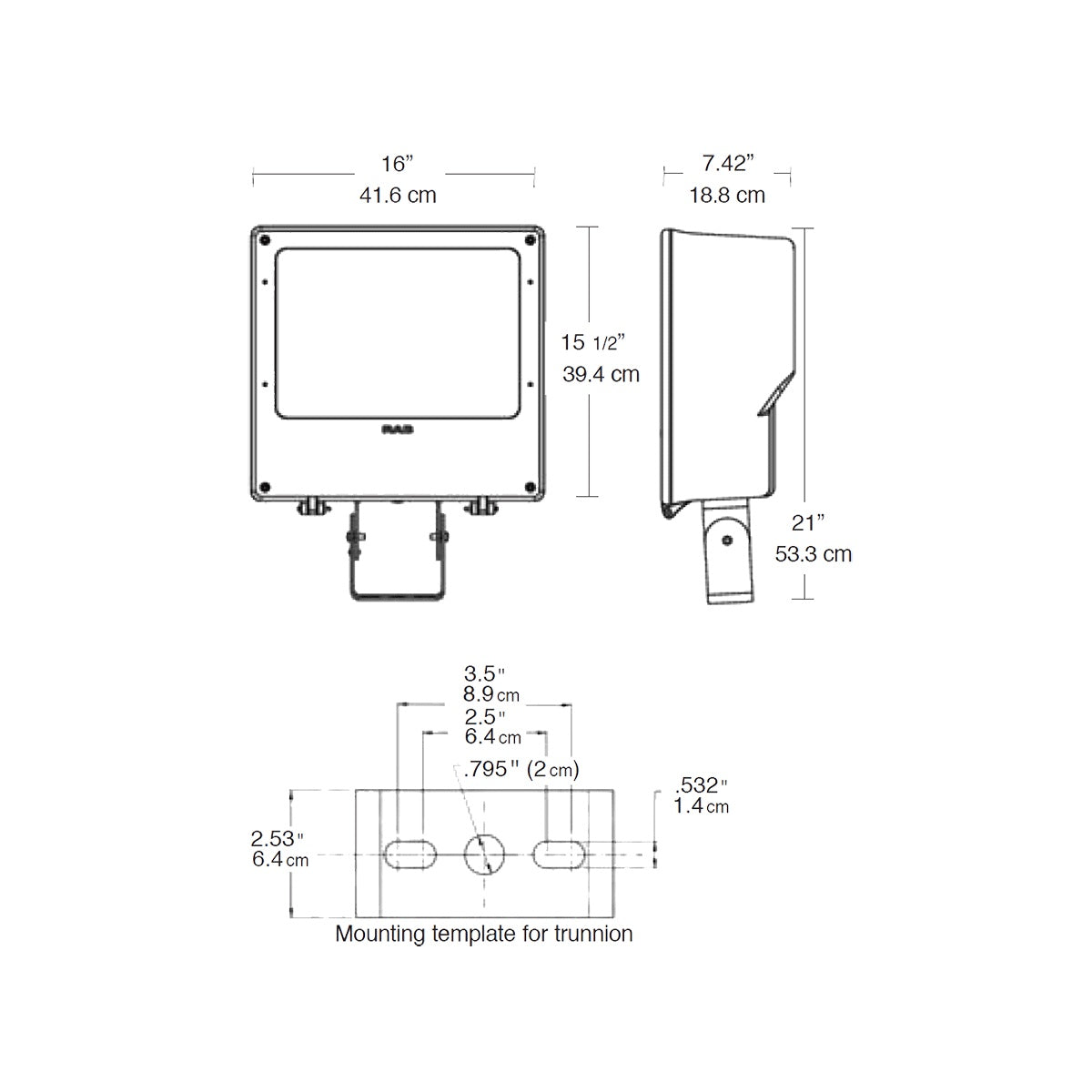

• Dimensions: 16" W x 15.5" H x 7.42" D (41.6 cm x 39.4 cm x 18.8 cm), with overall height including mount 21" (53.3 cm)
• Effective Projected Area (EPA): 2.1
• Socket: Porcelain, pulse rated 4kv, 1500 watts, 600 volts; 3 socket positions for customizable beam spread
• Voltage Compatibility: Quad tap for 120, 208, 240, and 277 Volts

Features

• One-piece die-cast aluminum housing with captive die-cast door frame
• High-quality anodized aluminum reflector designed for maximum horizontal and vertical beam dispersion
• Thermal tempered shock resistant glass lens with high-temperature silicone gasket for durable weatherproofing and easy relamping
• Smaller size with lower EPA for reduced wind load
• Water shedding design for enhanced weather resistance
• New adjustable reflector allowing customizable beam spread
• Separated ballast compartment by anodized aluminum die-formed wall for thermal management
• Stainless steel external hardware for corrosion resistance
• UL Listed and suitable for wet locations and ground mounting
