Morris Products

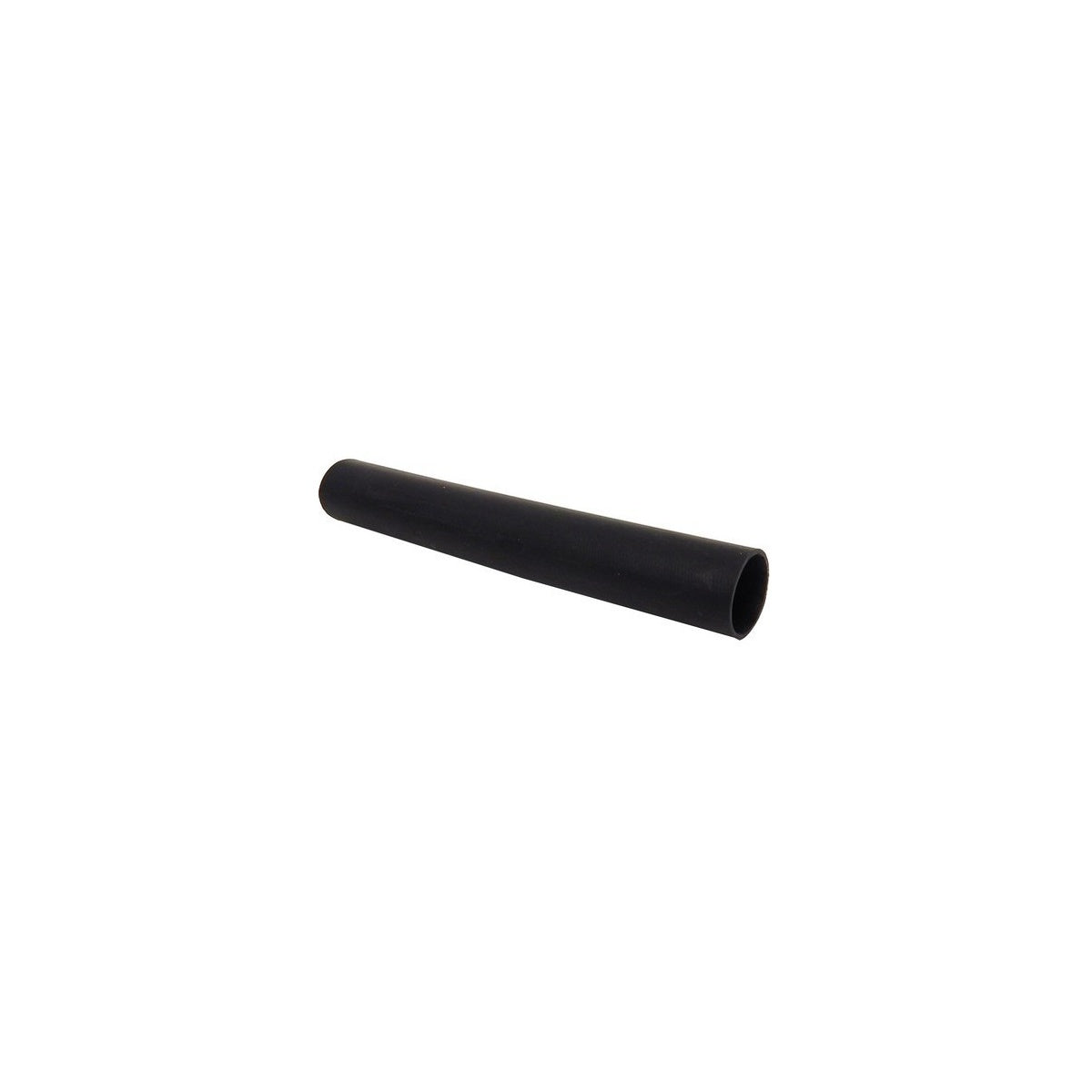

Medium Wall Heat Shrink Tubing- 3:1 Shrink Ratio 4' 3.50"-1.18” 800-1250MCM
SKU: #274413
Part: #68128
UPC: 601986681285
Morris Products
Medium Wall Heat Shrink Tubing- 3:1 Shrink Ratio 4' 3.50"-1.18” 800-1250MCM
SKU: #274413
Part: #68128
UPC: 601986681285
Description
Medium Wall Heat Shrink Tubing- 3:1 Shrink Ratio 4' 3.50"-1.18” 800-1250MCM Heat Shrink Tubing
This Medium Wall Heat Shrink Tubing is designed for low voltage applications up to 2500 volts, providing reliable insulation and protection for wire and cable in electrical distribution and lighting solutions. Manufactured from polyolefin, it offers a 3:1 shrink ratio to accommodate a range of cable sizes from 3.50" to 1.18" diameter, making it suitable for use by electrical distributors and switchgear suppliers requiring durable heat shrink tubing for medium wall thickness needs.
Specifications
- Material: Polyolefin
- Length: 4 ft
- Product Weight: 1.35 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 68128
- Voltage Rating: 2500 Volt and Below
- Shrink Ratio: 3:1
- Diameter Range (Recovered): 1.18" (30.0 mm)
- Diameter Range (Expanded): 3.50" (88.9 mm)
Features
- Medium wall thickness for robust mechanical protection
- Heat resistant up to 225°C with no cracking or flowing
- Excellent elongation and tensile strength for durability
- Resistant to fluids and corrosion, suitable for harsh environments
- Good adhesive properties with peel strength to steel, aluminum, and PVC
- Low temperature flexibility to -55°C without cracking
- High dielectric strength providing electrical insulation
