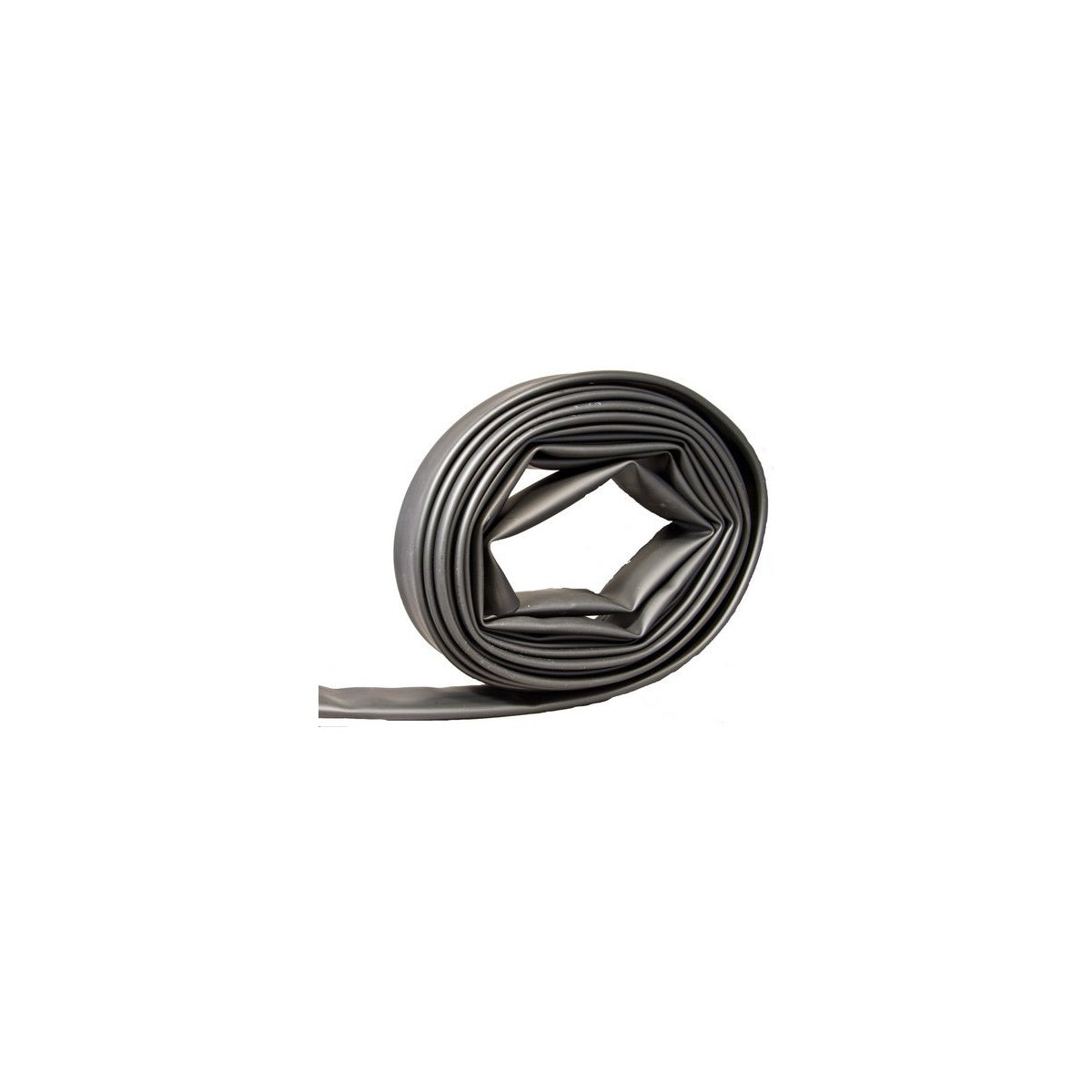

Medium Wall Heat Shrink Tubing- 3:1 Shrink Ratio 25' 2.05"-.750” 250-750MCM – Heat Shrink Tubing for Electrical Wire and Cable Insulation

This medium wall heat shrink tubing is designed for low voltage electrical applications up to 2500 volts. Manufactured from cross-linked polyolefin, it provides reliable insulation and protection for wire and cable in various electrical distribution and lighting solutions. Suitable for use by electrical distributors and switchgear suppliers, this tubing offers a 3:1 shrink ratio to accommodate a range of conductor sizes, ensuring a secure fit and enhanced durability.

Specifications

• Material: Polyolefin
• Length: 25 ft
• Product Weight: 4.65 lbs
• Manufacturer: Morris Products
• Manufacturer Part #: 68152
• Application Voltage: Low voltage (2500 Volt and below)

Features

• 3:1 shrink ratio for versatile fitting over 250-750 MCM conductor sizes
• Cross-linked polyolefin construction for enhanced mechanical and electrical properties
• Heat resistant withstanding temperatures up to 225¬∞C without cracking or flowing (Heat Shock test)
• Excellent elongation and tensile strength for durability and flexibility
• Good chemical and fluid resistance, including copper corrosion resistance
• Low temperature flexibility down to -55¬∞C without cracking
• High dielectric strength of 20 kV/mm for electrical insulation
• Water penetration resistant after extended immersion

Downloads & Links

• Spec Sheet
