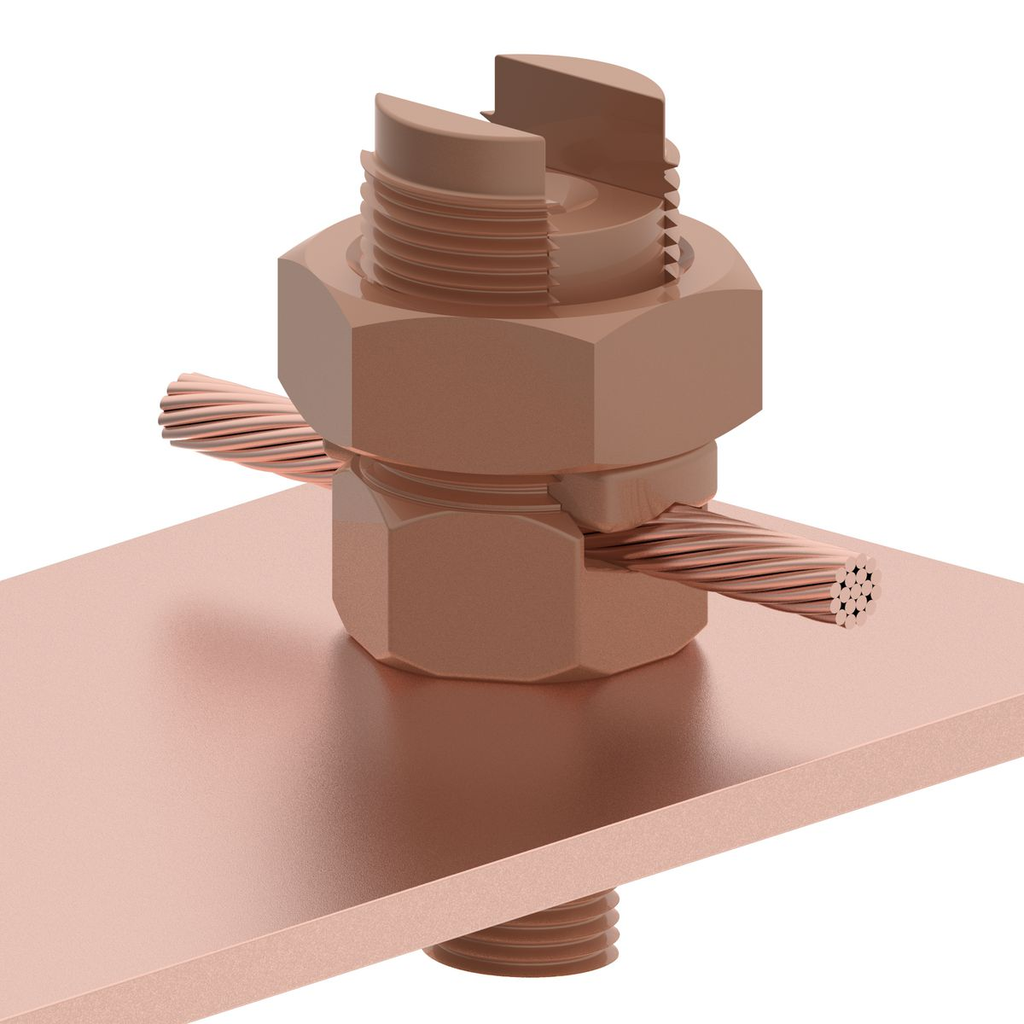

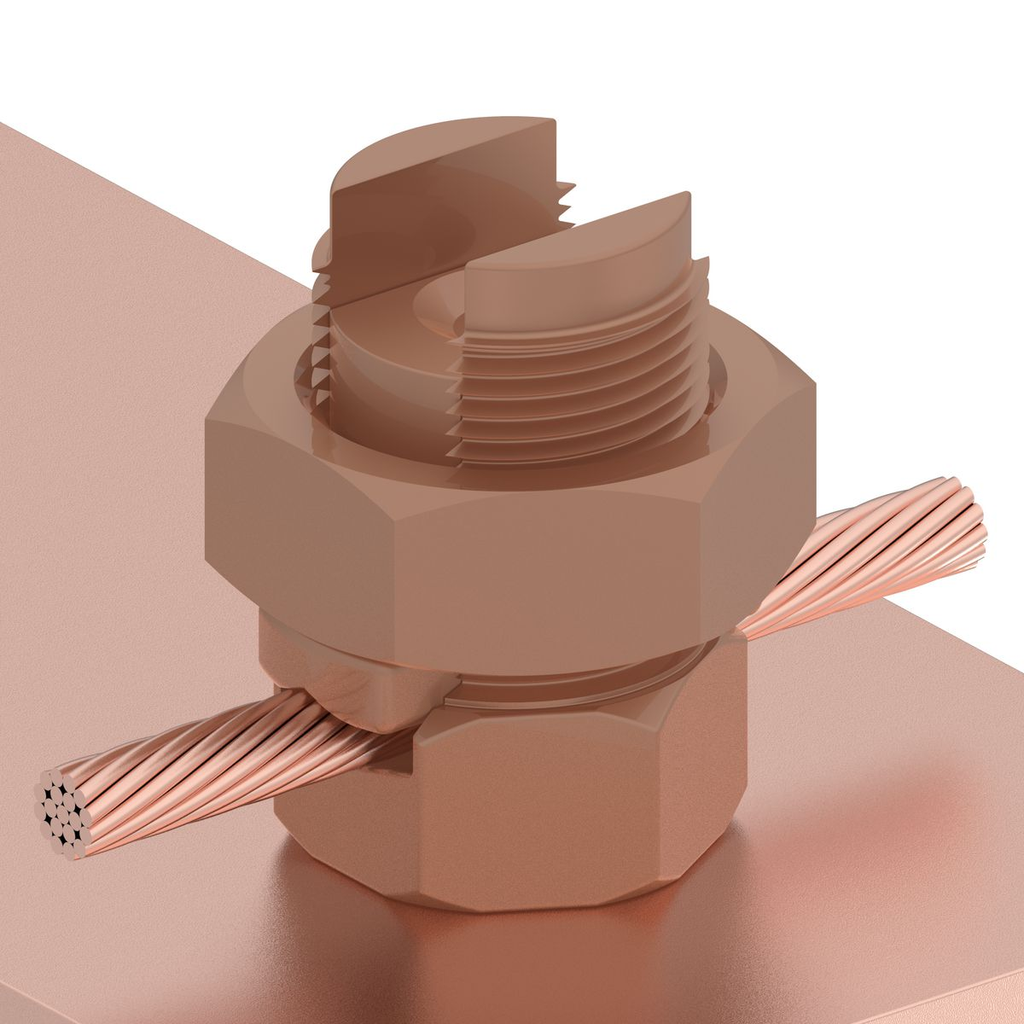

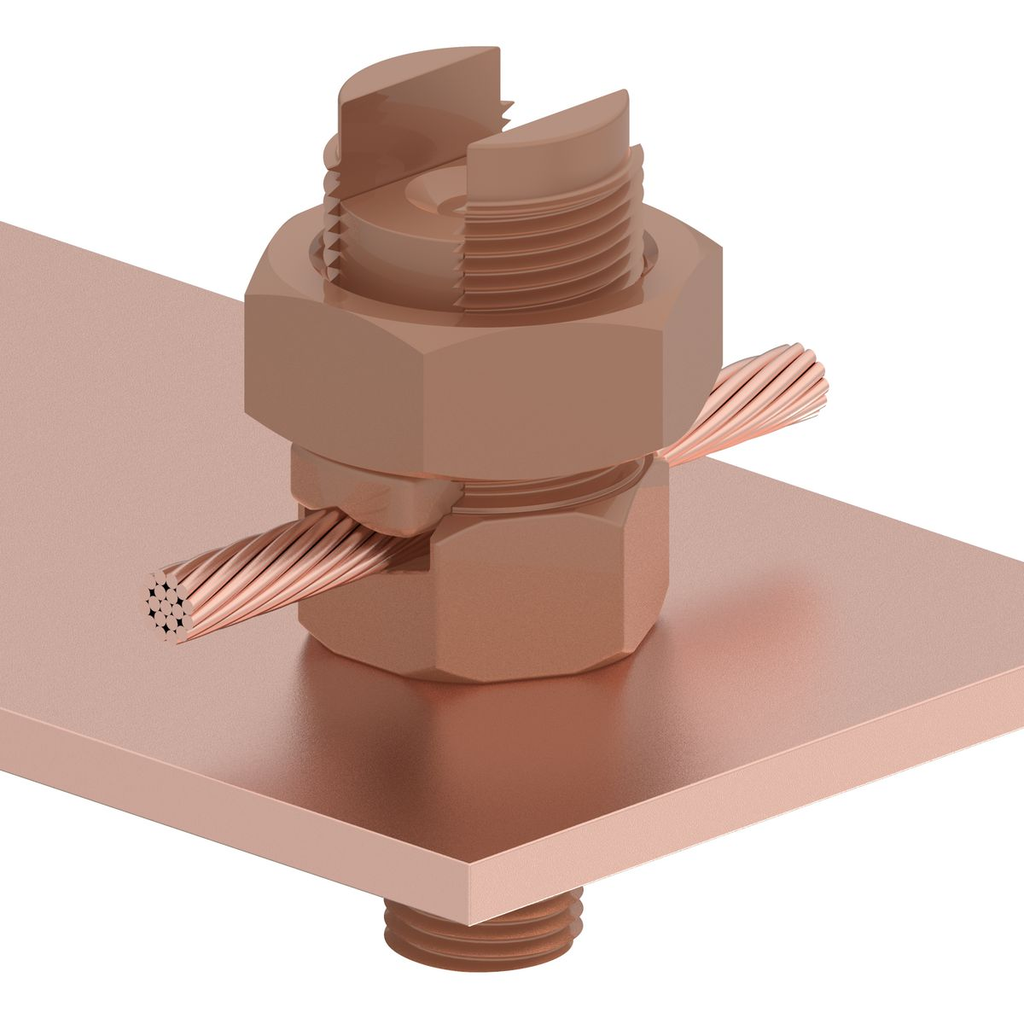

Mechanical SERVIT POST™ Connector; Cable to Flat – Mechanical Grounding Connector

The Mechanical SERVIT POST™ Connector is designed for grounding one or two copper cables to steel structures, fence posts, transformers, or for tapping one or two cables from bus bars. This connector is suitable for direct burial applications and is ideal for electrical distributors and lighting solutions requiring reliable grounding connections. It accommodates both stranded and solid copper conductors, providing secure mechanical grounding in wire and cable installations.

Specifications

• Application: For grounding one or two copper cables to steel structures, fence posts, transformers, tapping one or two cables from bus bar, and direct burial
• Material: Bronze, Leaded, Commercial
• Stud Size: 1/2" - 13 threads per inch
• Conductor Size Range (Stranded): 2 AWG to 2/0 AWG
• Conductor Size Range (Solid): 2 AWG to 3/0 AWG
• Dimensions (Length Overall): 2.12 in
• Dimension - Body Width: 0.88 in
• Dimension - Nut Width: 1.04 in
• Dimension - Height: 1-3/8 in
• Installation Torque: 480 lbs/in
• UL Listed: Yes, Direct Burial
• Industry Standards Met: UL467
• Made in USA
• Product Weight: 0.28 lbs

Features

• Mechanical grounding connector for cable to flat applications
• One-wrench installation for ease of use
• Suitable for grounding copper cables to steel structures, fence posts, and transformers
• Can tap one or two cables from bus bars
• Constructed from commercial leaded bronze for durability and conductivity
• Unplated finish
• Compatible with commercial stranded and solid copper conductors
