Mechanical KPU34A34AC Gutter Tap for Electrical Wire and Cable Connections

The Burndy Mechanical KPU34A34AC is a gutter tap designed for reliable electrical connections in industrial and multi-story structure applications. This component is suitable for use with all copper and aluminum conductor combinations, making it a versatile choice for electrical distributors and switchgear suppliers. It supports a wide range of conductor sizes for both run and tap connections, ensuring compatibility with various wire and cable configurations. The tap connector is UL listed and rated for 600 volts maximum, providing safe and durable performance in lighting solutions and electrical distribution systems.

Specifications

• Application: For All Copper And Aluminum Combinations
• Connection Type: Tap
• Material: Aluminum
• Plating Type: Tin
• Maximum Voltage: 600 volts
• Installation Torque Recommended: 450 in-lb
• Temperature Rating: 194°F

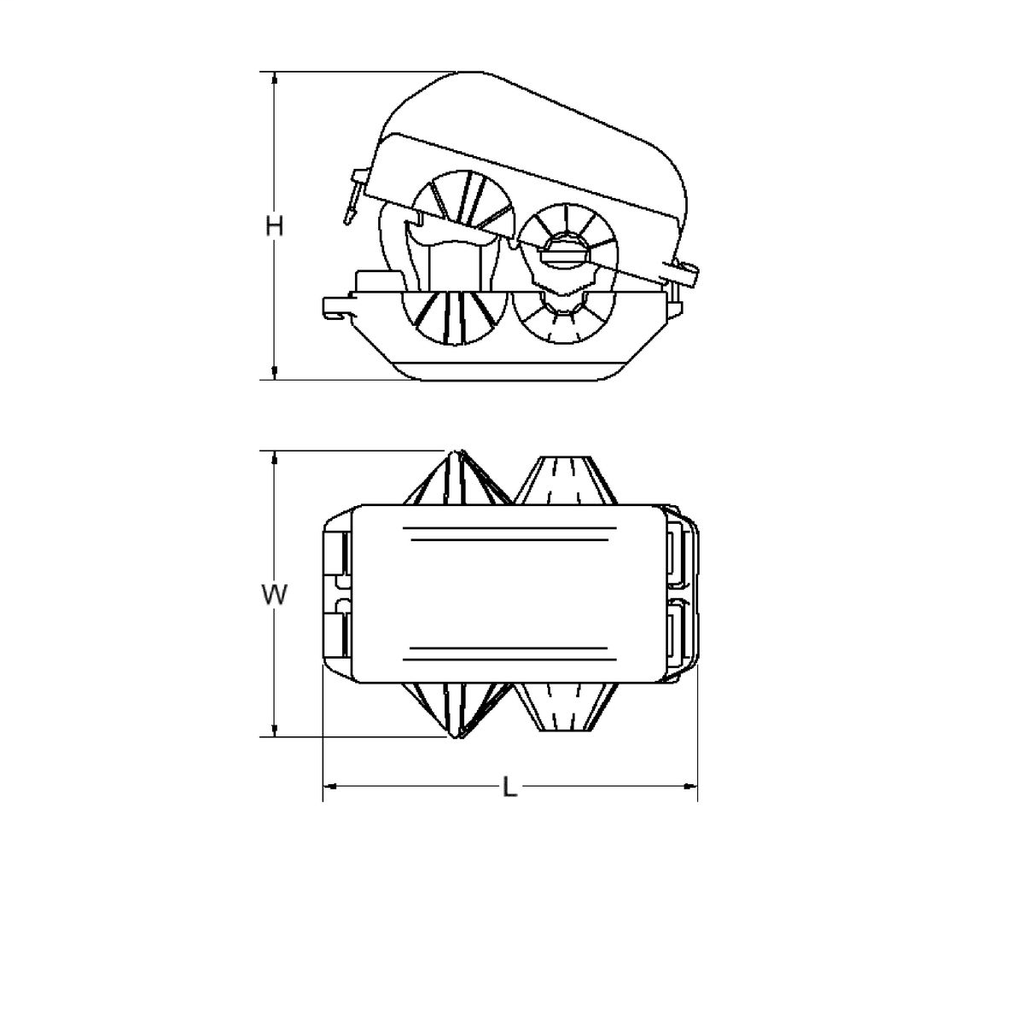

• Dimensions (L x W x H): 4.48 in x 3.50 in x 3.48 in (116 mm x 89 mm x 89 mm)
• Conductor Size Range (Run): 4/0 AWG to 500 kcmil (Aluminum and Copper)
• Conductor Size Range (Tap): 6 AWG to 500 kcmil (Aluminum and Copper)
• UL Listed: Yes

Features

• Wide range-taking tin-plated aluminum parallel clamp
• Insulating cover assembly with flexible fingers conforming to conductor
• Fully insulates the connection, eliminating the need for taping
• UL486B listed for 600 V maximum, 90°C service
• Cover and connector packaged together for ease of installation
• Covers conductor sizes from 14 AWG solid to 750 kcmil with only six connectors
