Features

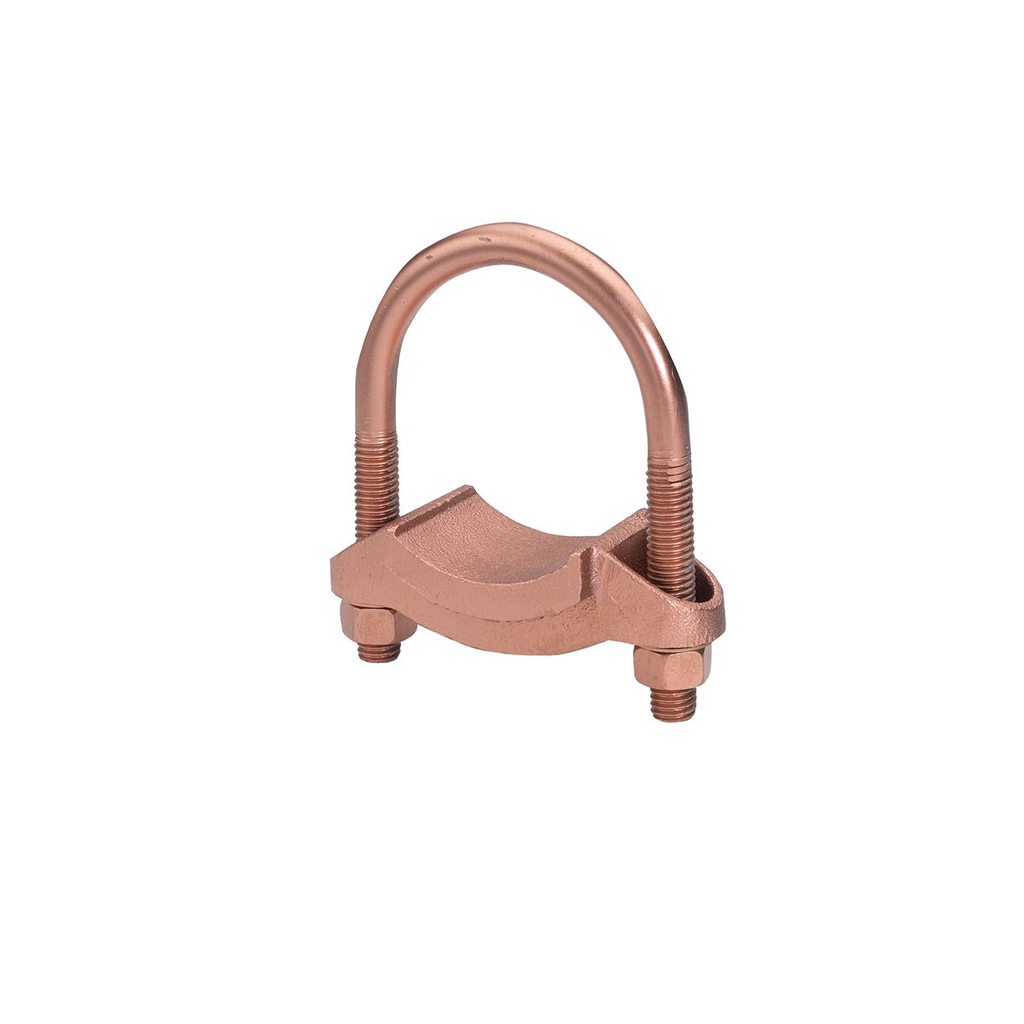

• High copper alloy ground connector for joining bar, strap, braid or cable to rod or tube
• Rated for Direct Burial in earth of concrete
• UL467 Listed
• One wrench installation
• High Copper Alloy Ground Connector For Joining Bar, Strap, Braid Or Cable To Rod Or Tube, High Copper Alloy Cast Body, DURIUM U-Bolts, Nuts And Lockwashers Make The GG Particularly Effective For Use With Braid For Ground Rods, Switch Handles, Fence Posts And Gates, One-Wrench Installation, Dimension A: 2 IN, Ground Rod Size: 3-1/2 - 4 IN, Tube (ips) Size: 3-1/2 IN, Height: 5-7/8 IN, Width: 5-3/4 IN, Installation Torque: 480 IN-LB

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Yes
• Dimension - B Length inch: 2.00 in
• Dimension - Width inch: 5.69 in
• Dimension - Width mm: 144 mm
• Width: 2 in
• Each - Width: 2 in
• Industry Standard(s): UL467
• Installation Torque Recommended in-lb: 480 LBS/in
• Material Type - Screw: DURIUM™ Silicon Bronze
• Plated: N
• Plating Type: Unplated
• Product Type: Mechanical
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: EX
• U Bolt Type: 263
• Application: For Joining Copper Bar, Strap, Braid Or Cable To Rod Or Tube, Direct Burial Cables
• Special Features: Features: High Copper Alloy Ground Connector For Joining Bar, Strap, Braid Or Cable To Rod Or Tube, High Copper Alloy Cast Body, DURIUM U-Bolts, Nuts And Lockwashers Make The GG Particularly Effective For Use With Braid For Ground Rods, Switch Handles, Fence Posts And Gates, One-Wrench Installation, Dimension A: 2 IN, Ground Rod Size: 3-1/2 - 4 IN, Tube (ips) Size: 3-1/2 IN, Height: 5-7/8 IN, Width: 5-3/4 IN, Installation Torque: 480 IN-LB
• Standard: UL467
• Sub Brand: MECHANICAL CONNECTOR
• Type: GG
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B41
• Description - Invoice: 2 BRAID TO 3 1/2 IPS
• Freight Class Code: 16027000
• Harmonization Code: 8535908060
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Replaced Catalog Number: GG212
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B41BD3F
• UL Listed: No
• Material: Copper Alloy, Cast
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810990063
• Case - SCC-14 Next Lower Level Sub Pack: 30781810990064
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 9.432 lb.
• Package - GTIN - Package: 30781810990064
• Package - Number of Sub Packs: 4
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810990063
• Package - Total Units: 4 EA
• Package Height: 6.13 in
• Package Length: 7.06 in
• Package Quantity: 4 EA
• Package Weight: 9.432 lb.
• Package Width: 4.5 in
• Standard Package Quantity: 4

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: Yes
• UL Recognized: No
• EU RoHS Indicator: Yes
