Mechanical Grounding Connector Conductor to Water Pipe – Grounding Connector

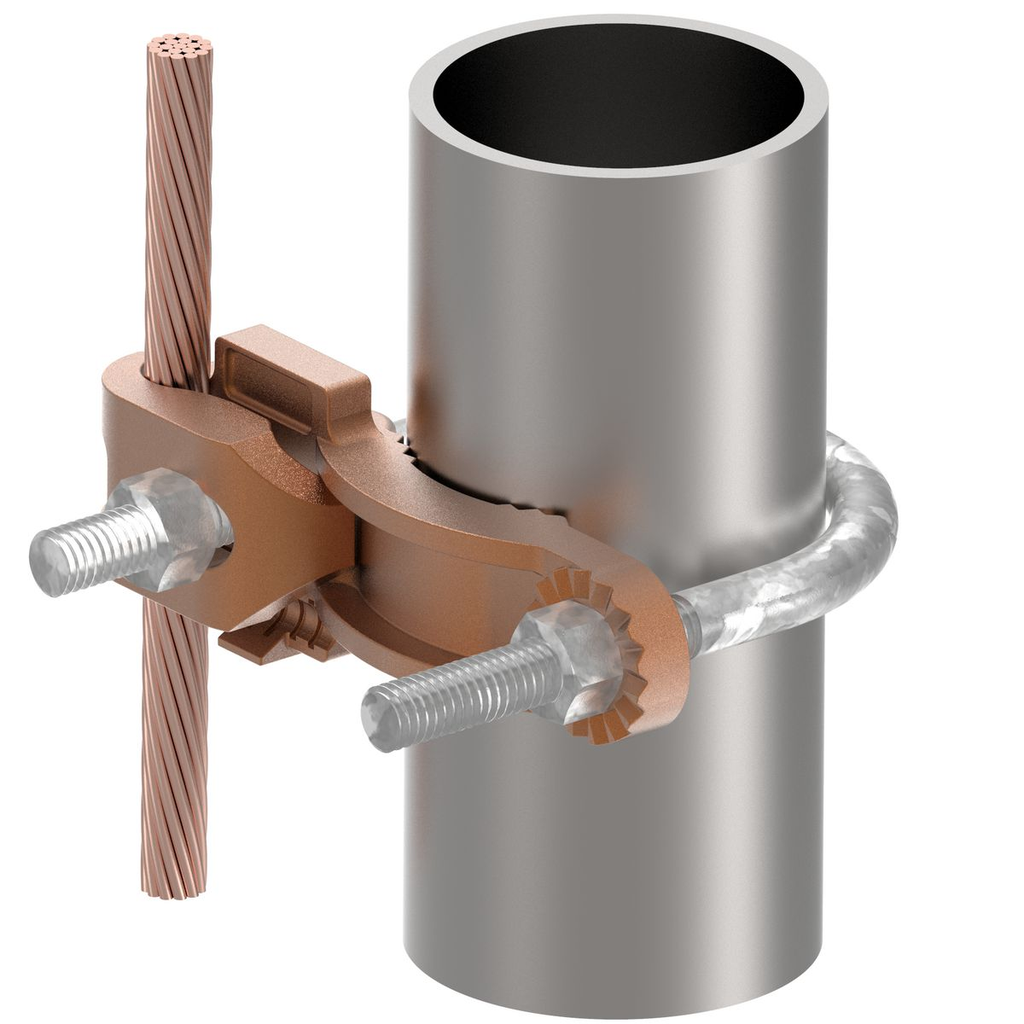

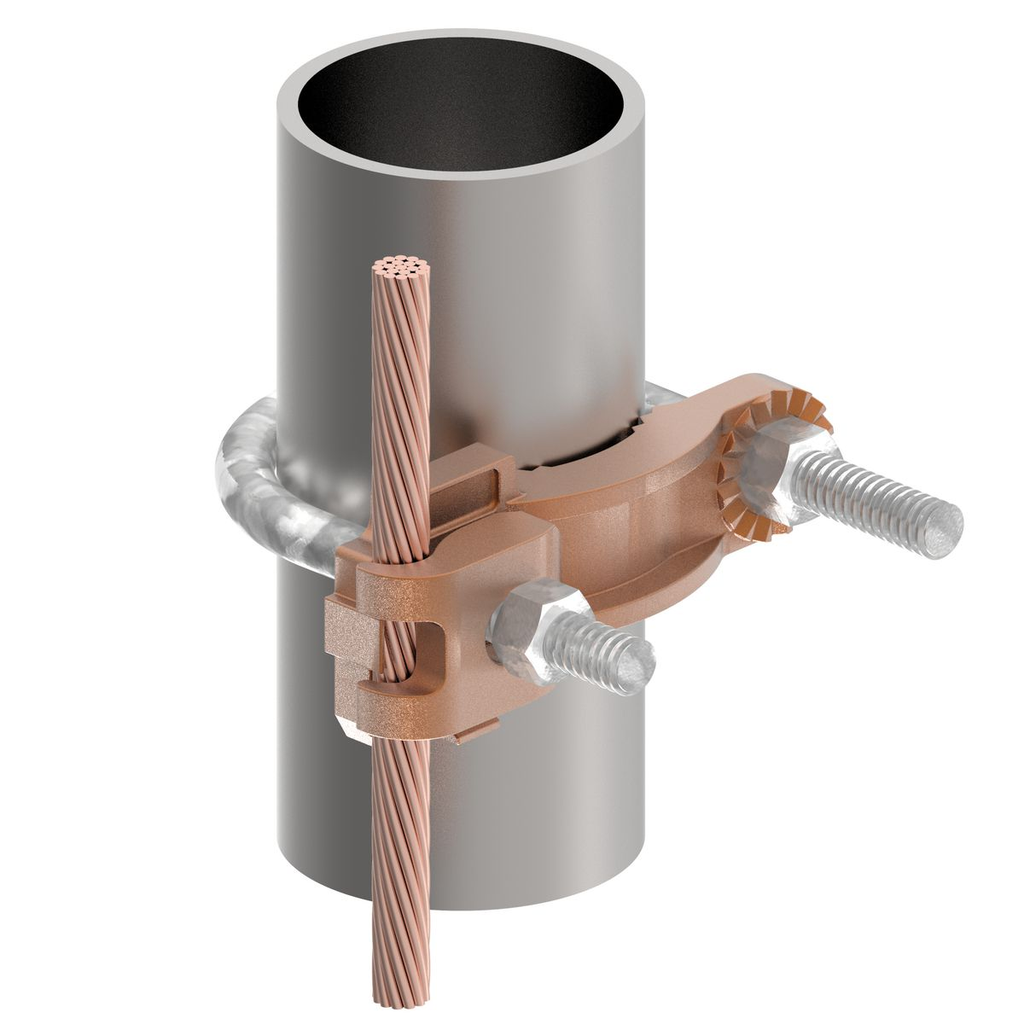

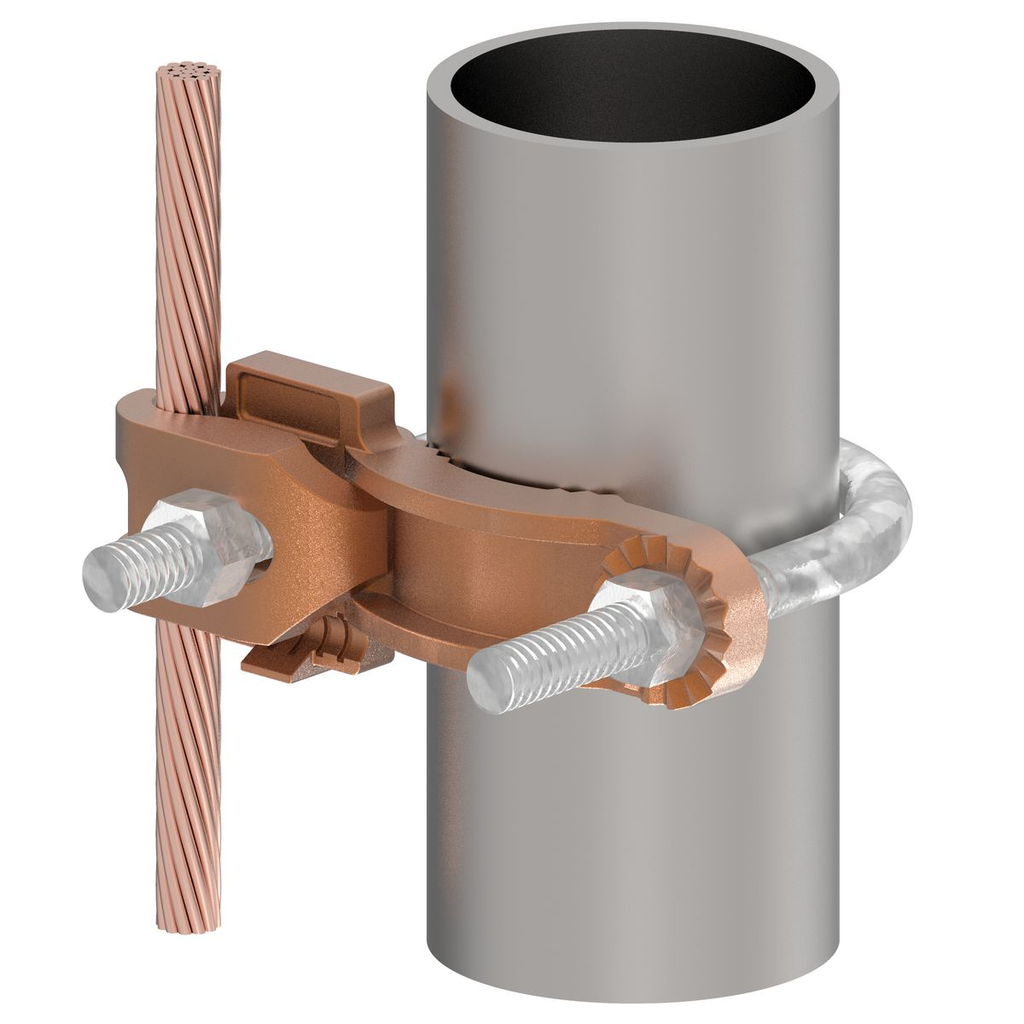

This Mechanical Grounding Connector is designed for connecting small to medium range copper ground conductors to water pipes, structural and reinforcing rod shapes, and direct burial cables. It is suitable for electrical distributors and lighting solutions requiring reliable grounding connections in wire and cable installations, as well as for switchgear suppliers seeking compliant grounding hardware.

Specifications

• Application: For connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes, direct burial cables
• Conductor Size Range: 4 AWG - 4/0 AWG
• Pipe Size Range: 1.25 - 2 in
• Material: Copper Alloy
• Width: 1.75 in
• Product Weight: 0.79 lbs
• Certification: UL467 Listed, UL Listed for Direct Burial
• Country of Origin: Mexico
• Manufacturer: Burndy
• Manufacturer Part #: GAR3903

Features

• Cable clamp swivels at 90°, permitting parallel grounding of one pipe on a 90° cable run for grounding several parallel pipes
• One-wrench installation simplifies the installation process
• Rated for direct burial in earth or concrete
• Provides quality assurance meeting recognized industry NEC standards
