Features

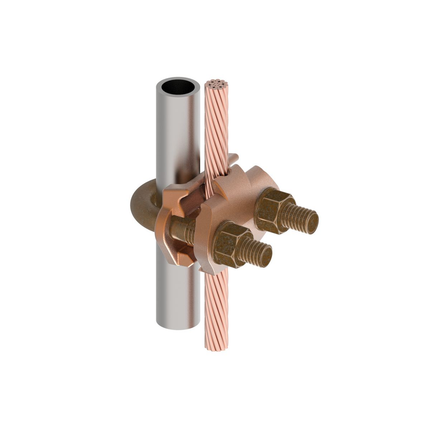

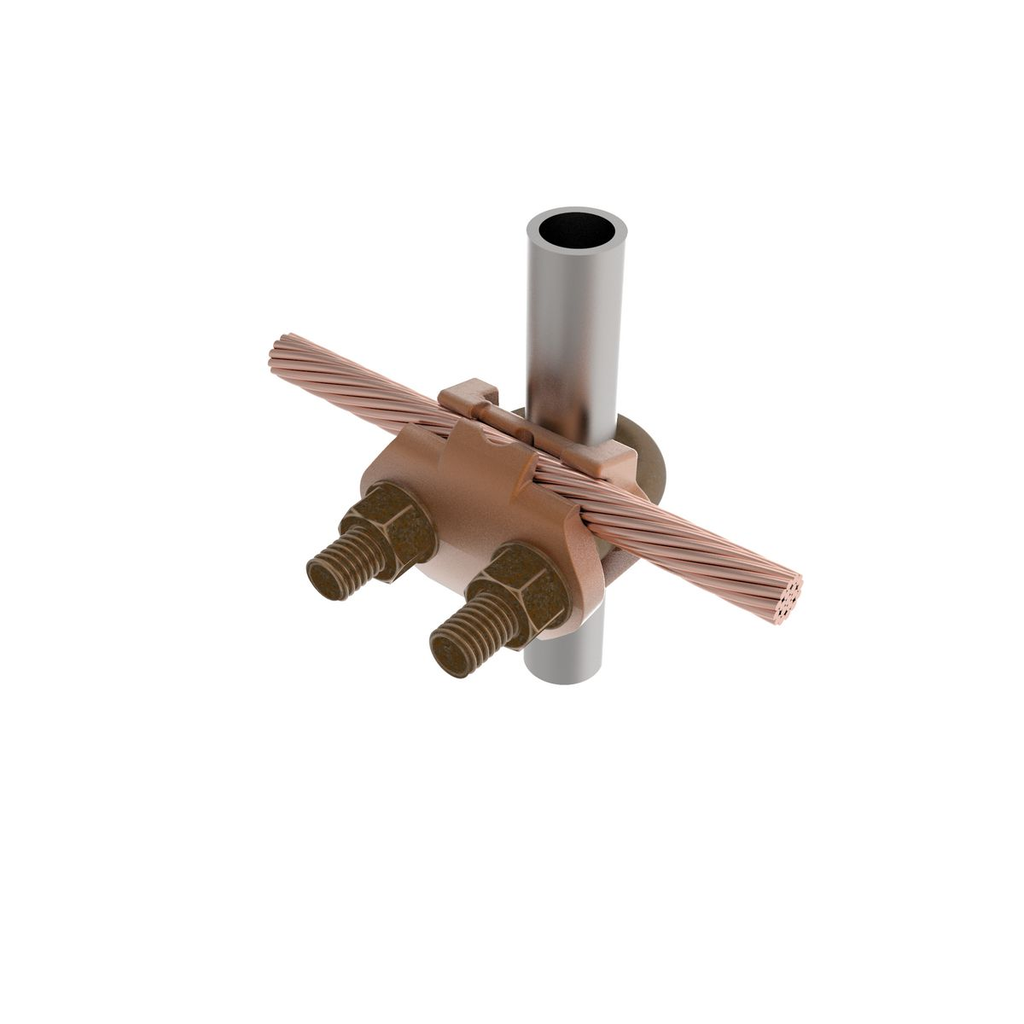

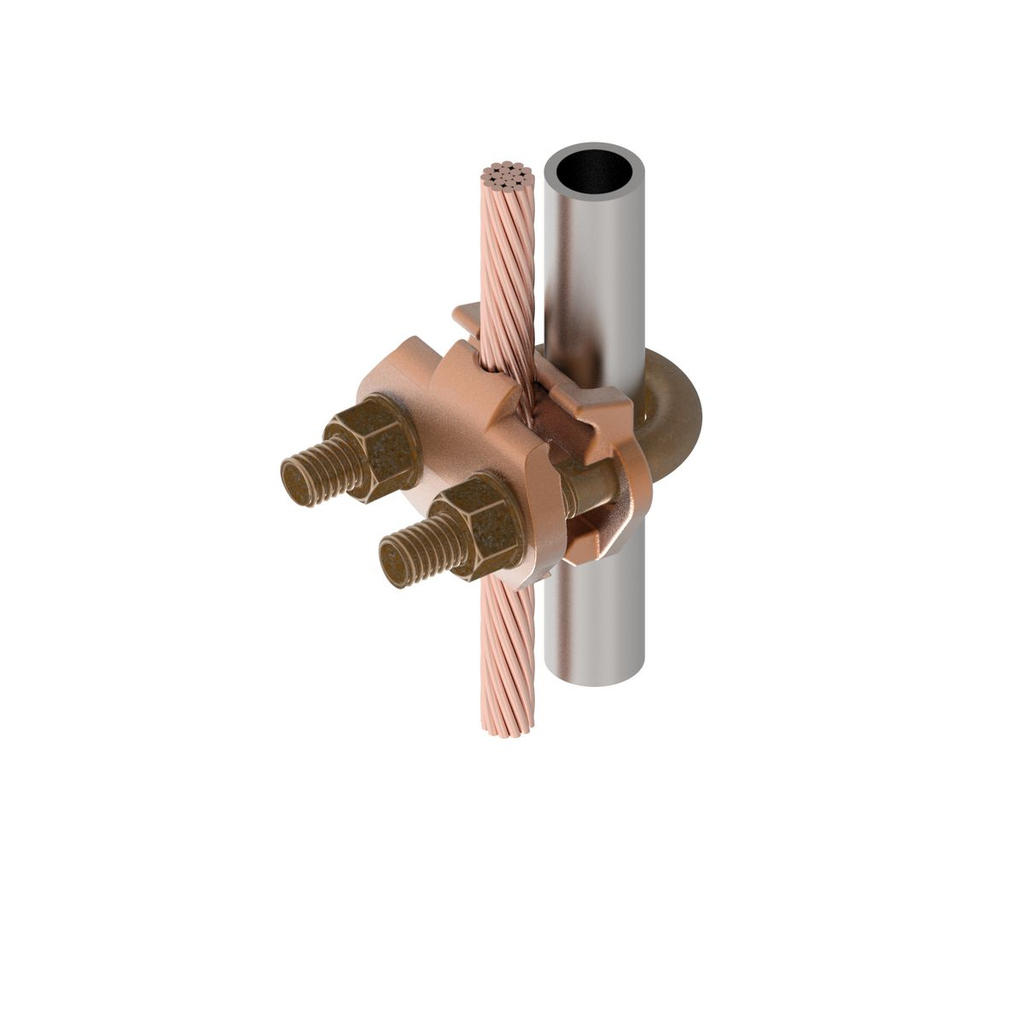

• Parallel or 90° Copper Cable Connection
• One-wrench installation
• Rated for Direct Burial in earth or concrete

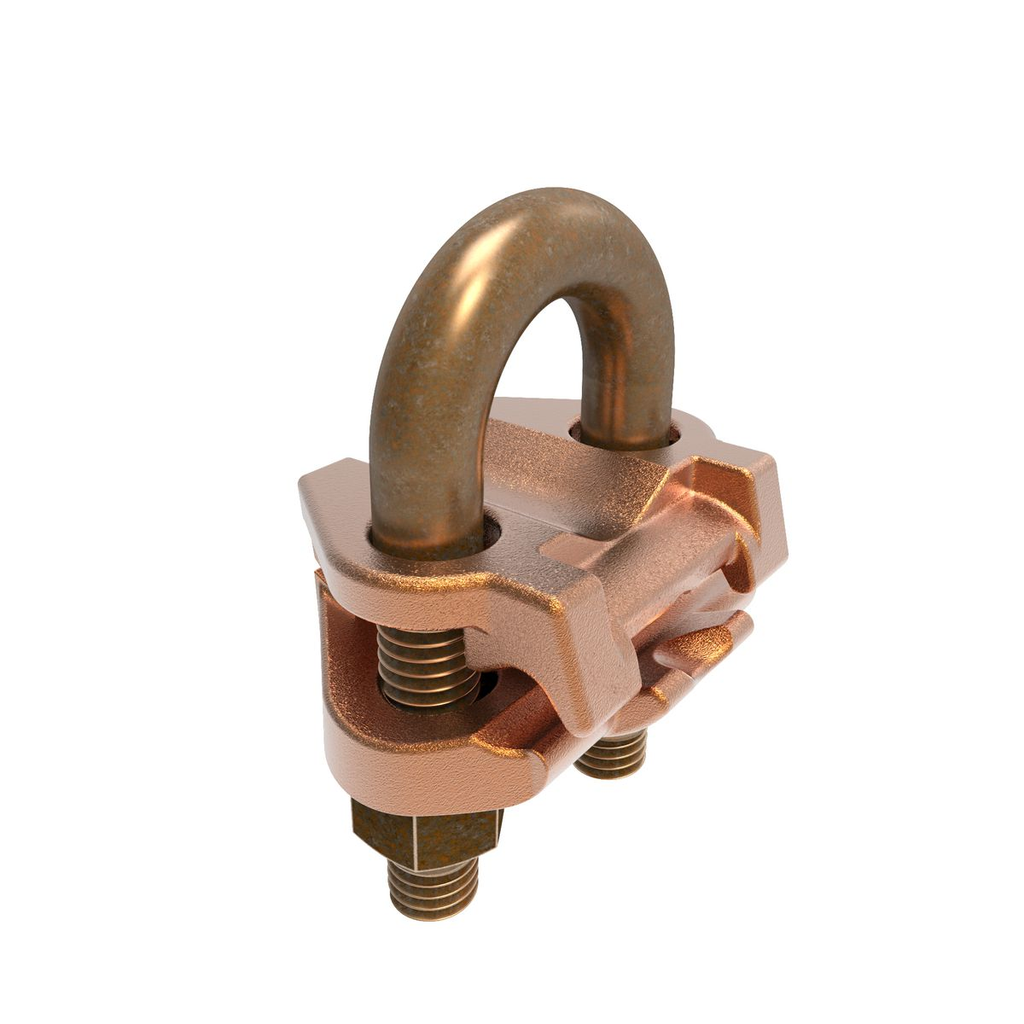

• High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Wire To Rebar, Fence Post Grounding Connector, Wire To Pipe, Ground Rod Size: 7/8 - 1 IN Outer-Diameter, Tube (ips) Size: 1/2 - 3/4 IN Outer-Diameter, Stud/bolt Size: 3/8 IN, Rebar Size: #7 - #8, Installation Torque: 240 IN-LB, Width: 2-3/8 IN, Height: 3 IN

Specifications

• Country of Origin: Mexico
• Buy American Compliant: No
• Conductor - Copper Solid Size: 4 AWG
• Conductor - Copper Solid Size Range: 4 AWG-3/0 AWG
• Conductor - Copper Str Size: 2/0 AWG
• Conductor - Copper Str Size Range: 5 AWG - 2/0 AWG
• Conductor - Copper Tube Std Size: 1/2 IPS IPS;3/4 IPS IPS
• Conductor - Copper Tube Std Size Range: 1/2 IPS IPS-3/4 IPS IPS
• Conductor - Pipe or Round Tube Size Range: 1/2-3/4 in
• Conductor - Rebar Size: 7 ;8
• Conductor - Rebar Size Range: 7 -8
• Conductor - Rod Size: 1 in
• Conductor - Rod Size Range: 7/8 in-1 in
• Dimension - B Length inch: 1.50 in
• Dimension - Height fraction: 3 in
• Dimension - Height inch: 3.00 in
• Dimension - L Length Overall mm: 40 mm
• Dimension - Length Overall inch: 1.56 in
• Dimension - Outside Diameter inch: 1.05 in
• Dimension - Width fraction: 2-3/8 in
• Dimension - Width inch: 2.38 in
• Dimension - Width mm: 60 mm
• Width: 2.37 in
• Each - Width: 2.37 in
• Industry Standard(s): UL467
• Installation Torque Recommended in-lb: 240 LBS/in
• Installation Torque Recommended Run in-lb: 240 Lb in
• Plated: N
• Plating Type: Bright Dipped
• Product Type: Mechanical
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: EX
• U Bolt Type: 249
• Application: For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube Fence Posts, Direct Burial Applications
• Special Features: Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Wire To Rebar, Fence Post Grounding Connector, Wire To Pipe, Ground Rod Size: 7/8 - 1 IN Outer-Diameter, Tube (ips) Size: 1/2 - 3/4 IN Outer-Diameter, Stud/bolt Size: 3/8 IN, Rebar Size: #7 - #8, Installation Torque: 240 IN-LB, Width: 2-3/8 IN, Height: 3 IN
• Standard: UL467
• Sub Brand: MECHANICAL CONNECTOR
• Type: GAR
• Conductor Type: CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size
• ARRA Compliant: No
• Certification Agency: Proposition 65
• Class Code: B41
• Description - Invoice: 4-2/0CU 1/2-3/4IPS
• Freight Class Code: 16027000
• Harmonization Code: 8535908060
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B41BD1F
• UL Listed: Yes
• Material: Copper
• Material - Hardware: DURIUM™ Silicon Bronze
• Base Unit of Measure: EA
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810231807
• Case - SCC-14 Next Lower Level Sub Pack: 30781810231808
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 35.5 lb.
• Package - GTIN - Package: 30781810231808
• Package - Number of Sub Packs: 50
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810231807
• Package - Total Units: 50 EA
• Package Height: 6.13 in
• Package Length: 9.38 in
• Package Quantity: 50 EA
• Package Weight: 35.5 lb.
• Package Width: 7.44 in
• Standard Package Quantity: 50

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Listed Direct Burial: Yes
• UL Recognized: No
• EU RoHS Indicator: Yes
