Mechanical Grounding Connector, Cable to Rod or Pipe, Copper Alloy Grounding Clamp

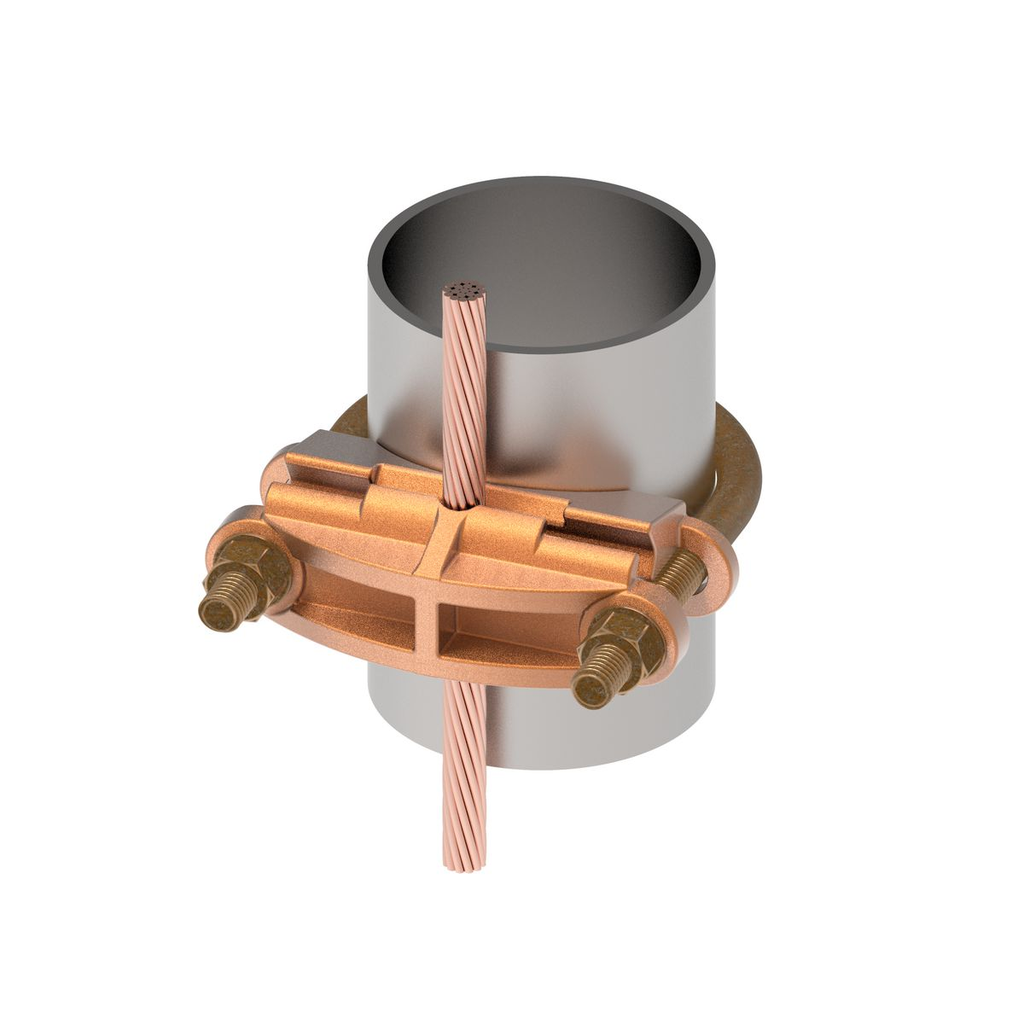

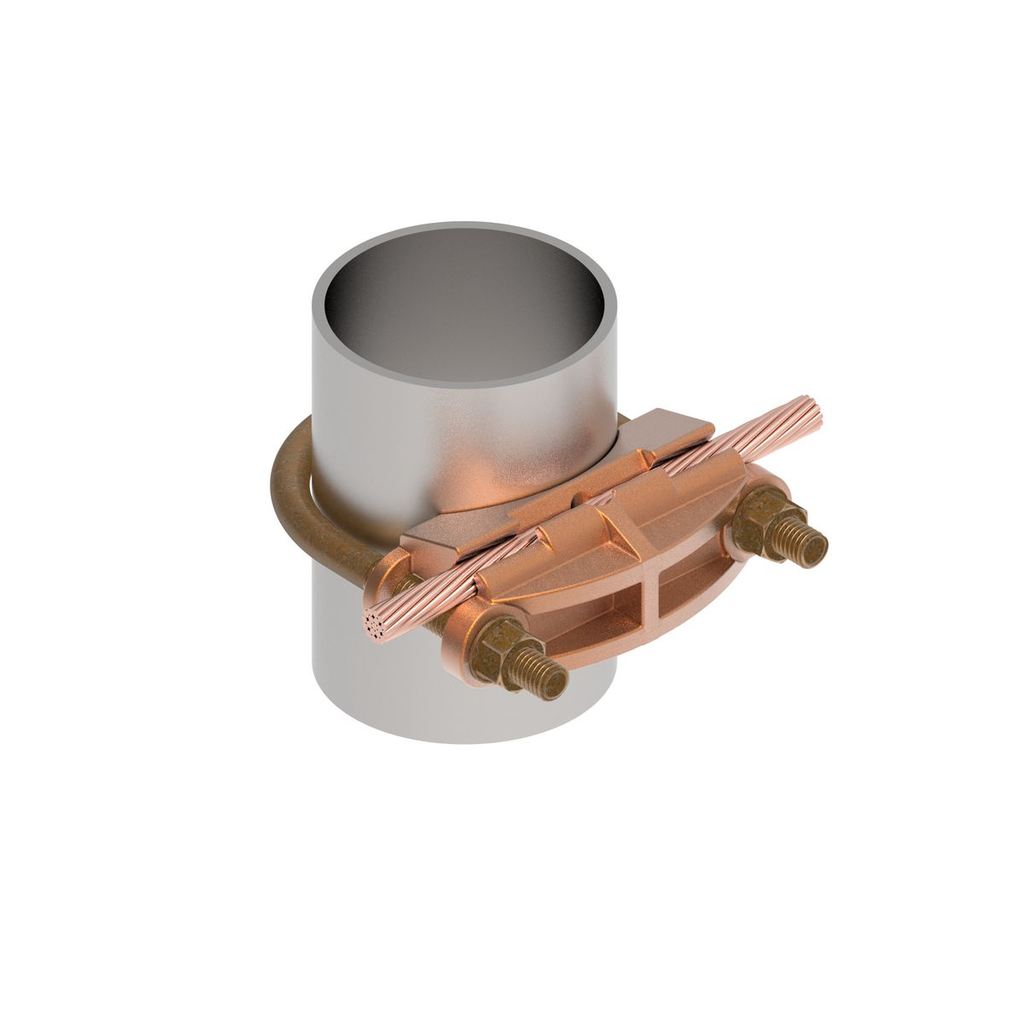

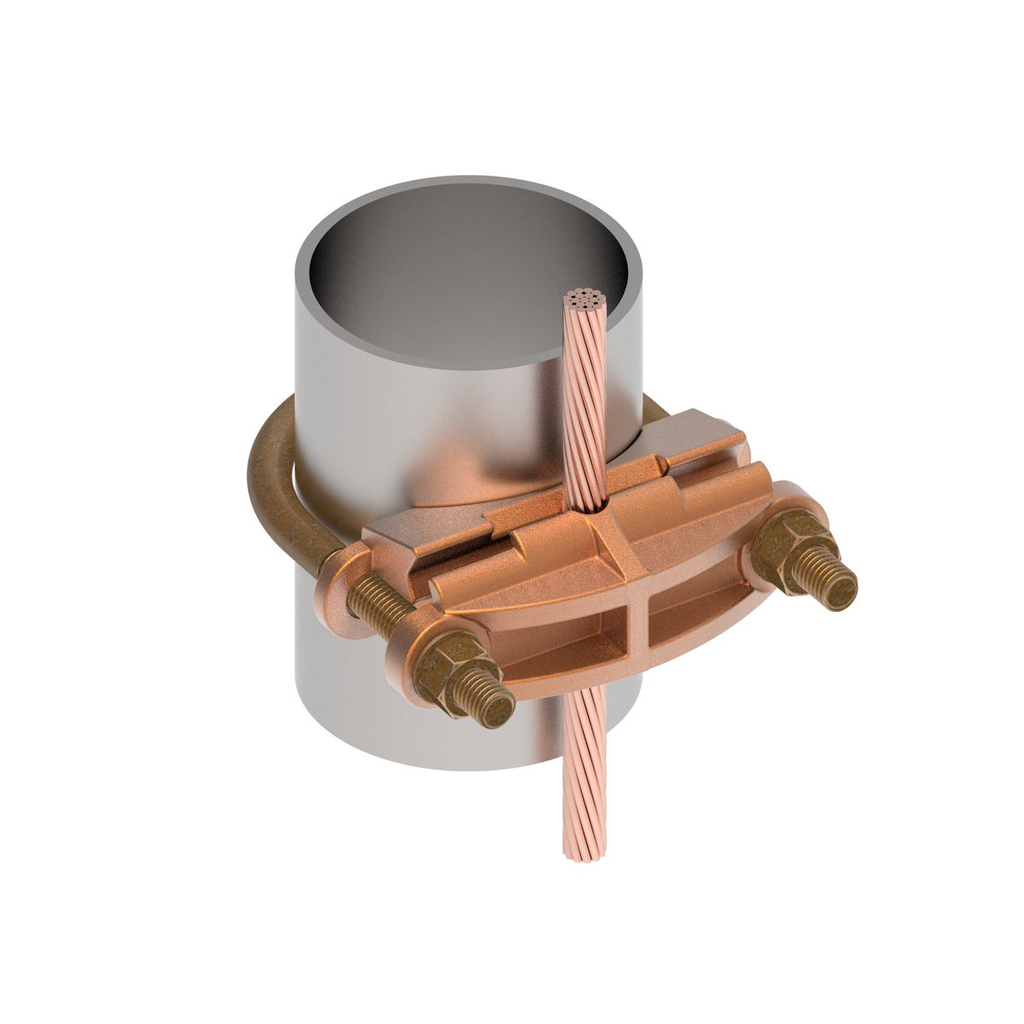

This Mechanical Grounding Connector is designed for joining a range of copper cable sizes either parallel or at right angles to rod or pipe. It is suitable for direct burial applications including underground electrical grounding and fence post grounding. The connector supports cable sizes from 2/0 AWG (solid) to 250 kcmil and accommodates 3" pipe and rod diameters from 3" to 3-1/2". It is a reliable component for electrical distributors and switchgear suppliers requiring durable grounding solutions with corrosion resistance.

Specifications

• Product Name: Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) - 250 kcmil, 3" Pipe, 3"-3-1/2" Rod, Bright Dipped
• Material: Copper Alloy
• Width: 4.81 in
• Product Weight: 2.1 lbs
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part Number: GAR2029
• Application: For joining cable parallel or at right angles to rod or tube; suitable for direct burial cable and fence post grounding

Features

• High copper alloy cast body with bright dipped finish for corrosion resistance
• Durium™ Silicon Bronze U-bolts, nuts, and lockwashers ensure secure mechanical connection
• Designed for wire to rebar, wire to pipe, and fence post grounding applications
• One-wrench installation for efficient field assembly
• UL467 Listed for US and Canadian markets
• Rated for direct burial in earth or concrete
• Qualified to IEEE-837-2014 standards for select connectors
