Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) - 250 kcmil by Burndy

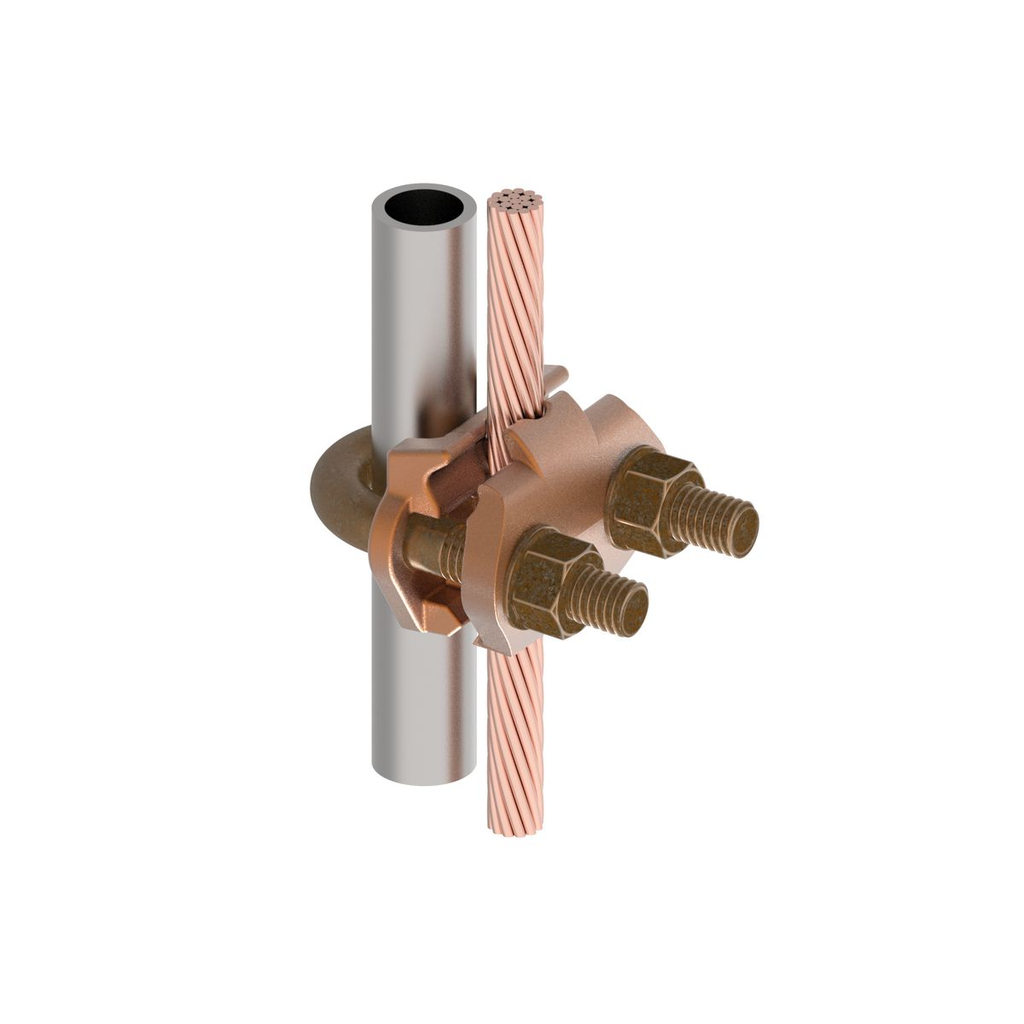

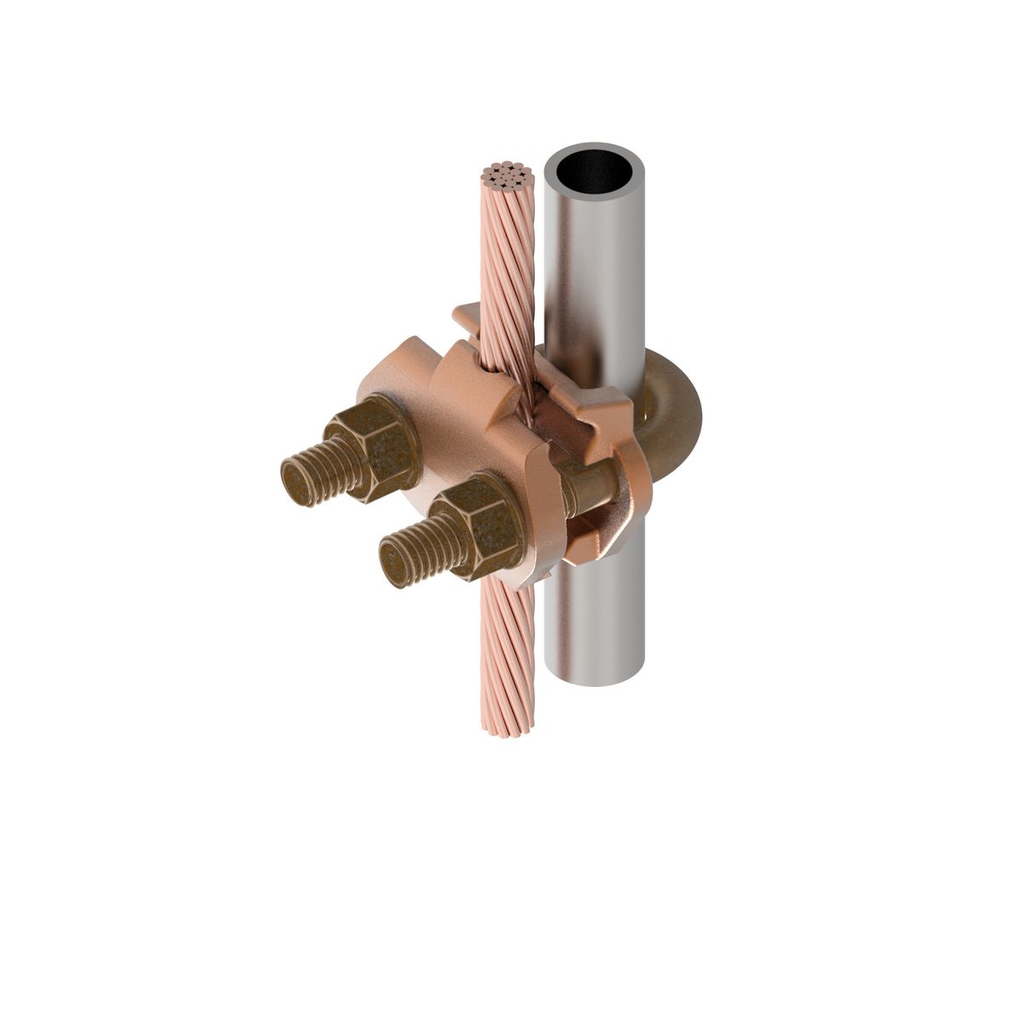

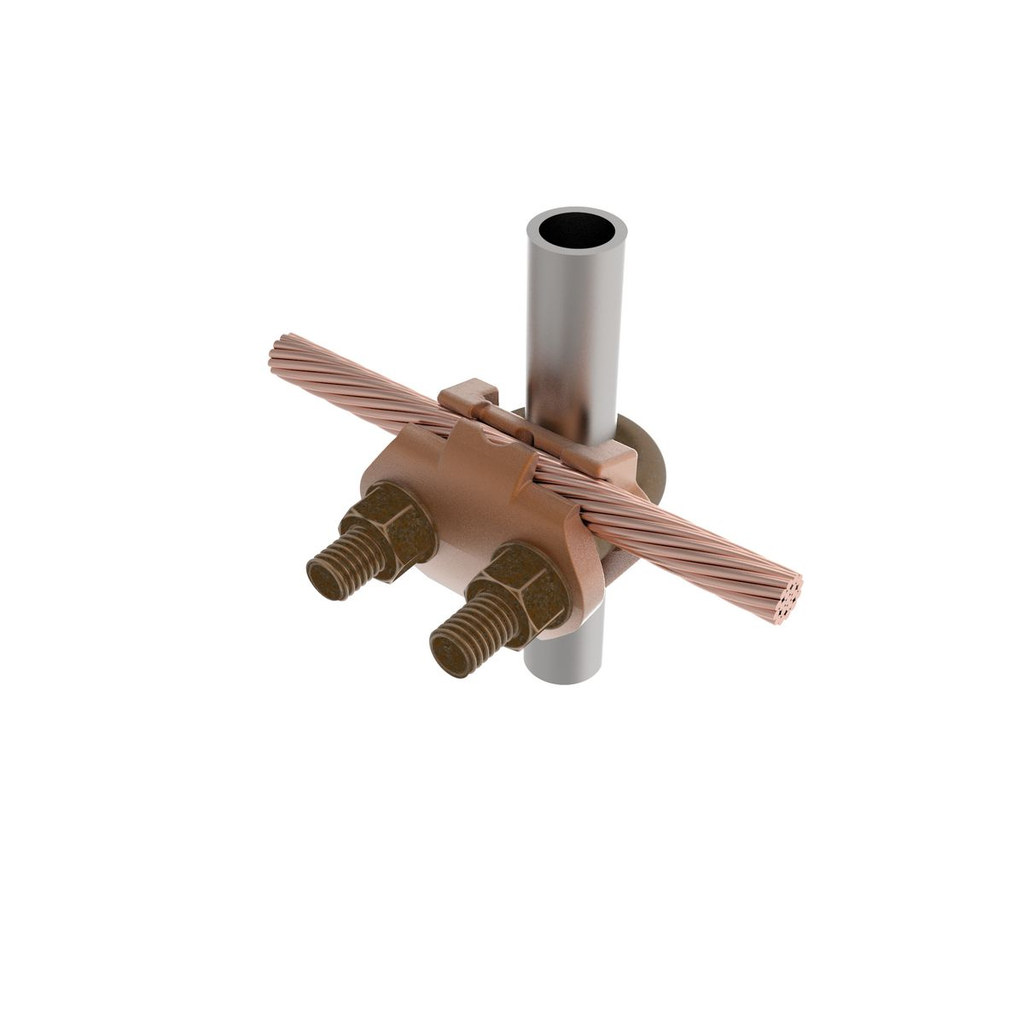

This mechanical grounding connector is designed for secure electrical connections between copper cables and rods or pipes. It is suitable for parallel or 90° cable connections to rods, pipes, or rebar, making it ideal for grounding applications such as fence posts and direct burial installations. The connector is manufactured by Burndy, a recognized electrical distributor and switchgear supplier, and is engineered to provide reliable mechanical grounding in lighting solutions, wire and cable systems, and electrical infrastructure.

Specifications

• Material: Copper Alloy
• Conductor Range: 2/0 AWG (Sol) to 250 kcmil
• Pipe Size: 3/8 inch
• Rod Size: 5/8 to 3/4 inch
• Rebar Size: #5 to #6
• Width: 2.06 in
• Product Weight: 0.7100 lbs
• Country of Origin: Mexico
• Manufacturer Part Number: GAR6429

Features

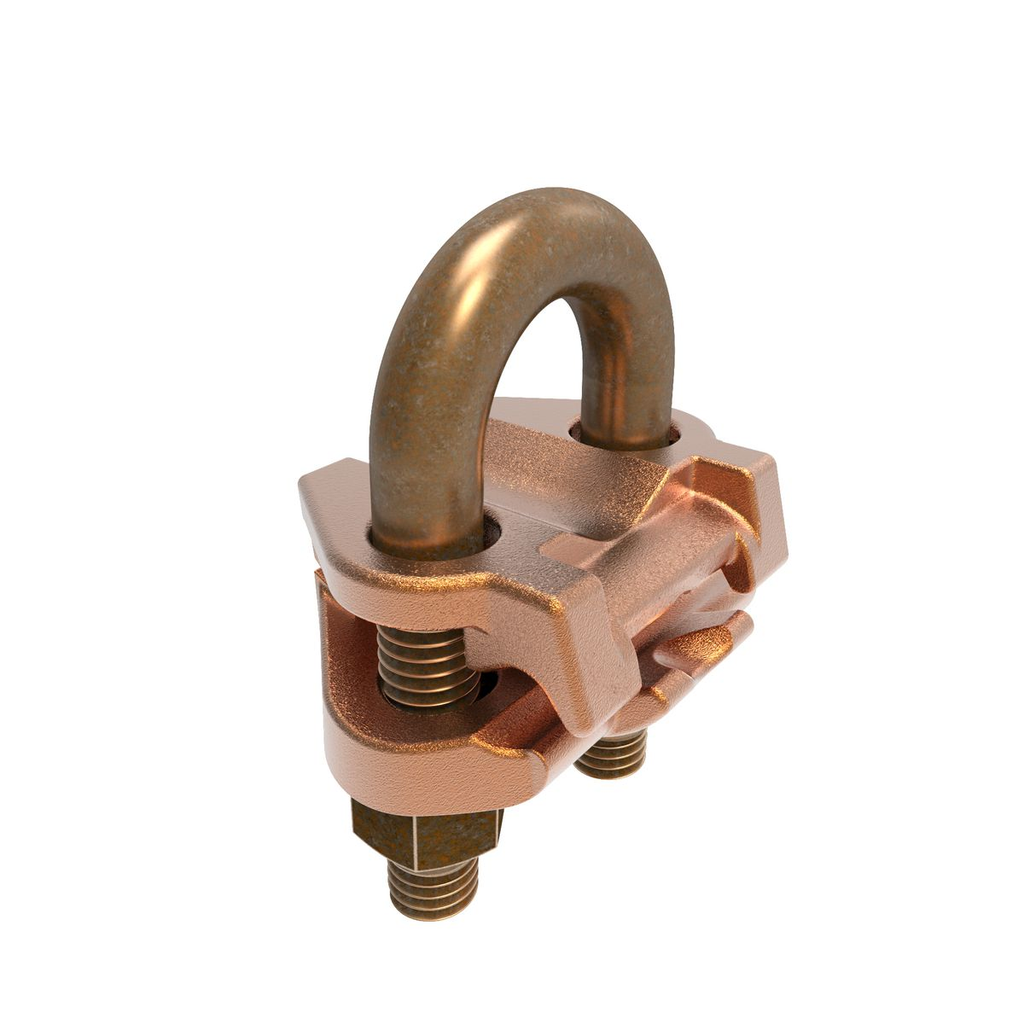

• High copper alloy cast body with DURUM™ Silicon Bronze U-bolts, nuts, and lockwashers
• Permits direct burial in earth or concrete without corrosion risk
• One-wrench installation for ease of use
• Suitable for wire to rebar, wire to pipe, and fence post grounding applications
• UL467 Listed for US and Canadian markets
• Qualified to IEEE-837-2014 standards
