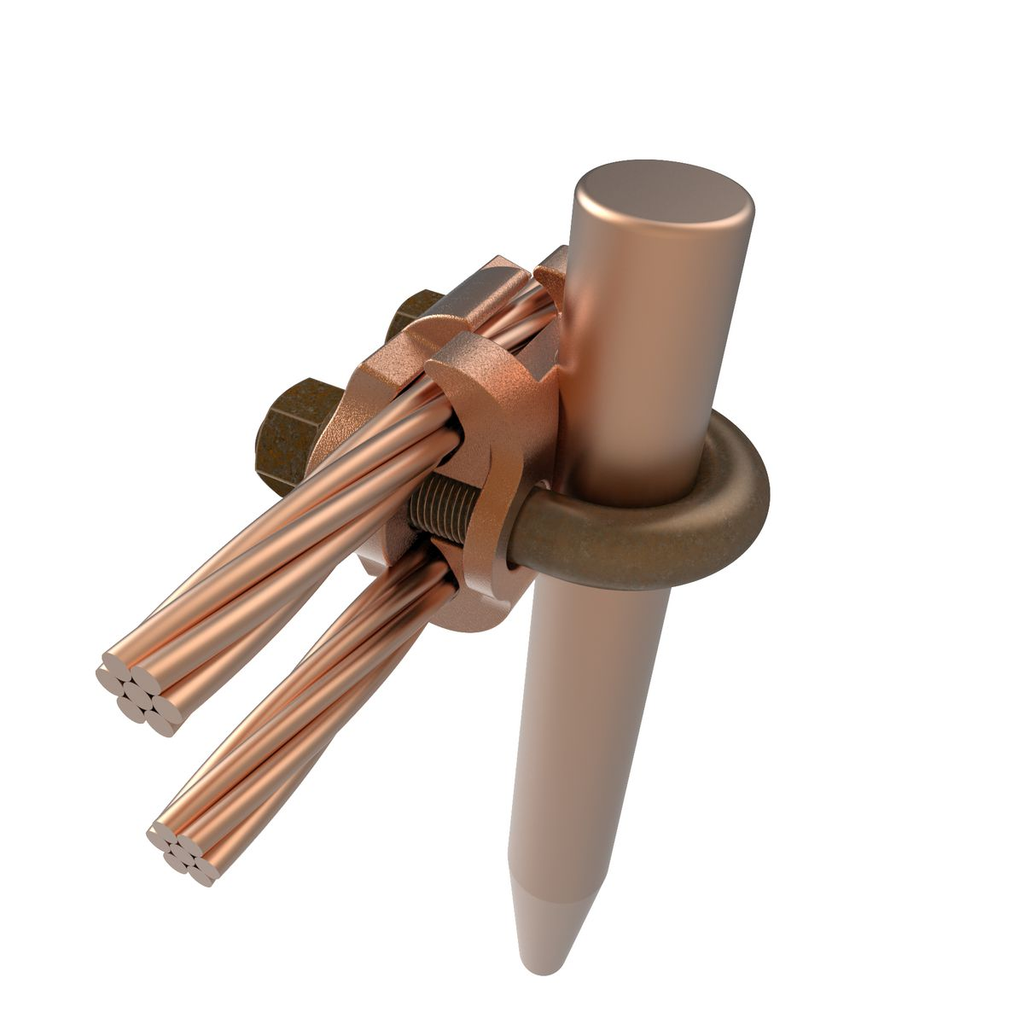

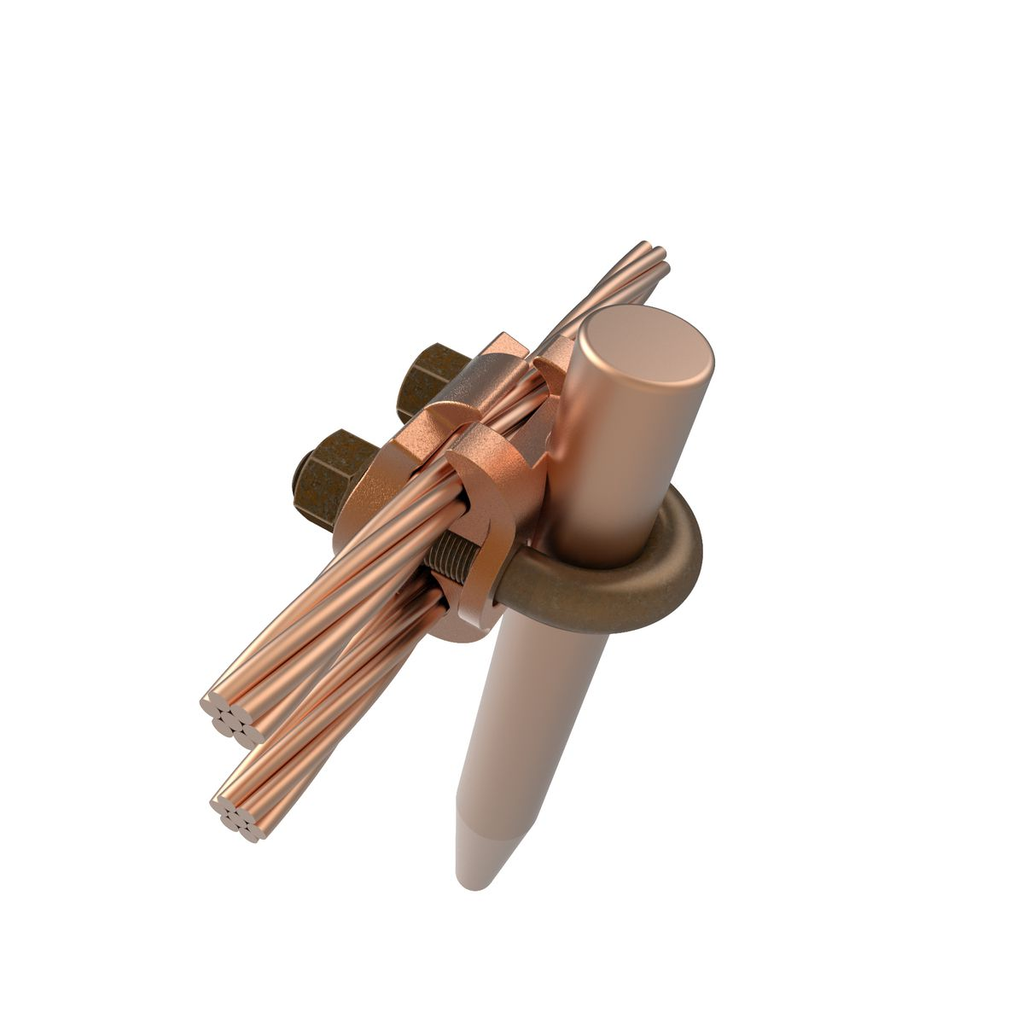

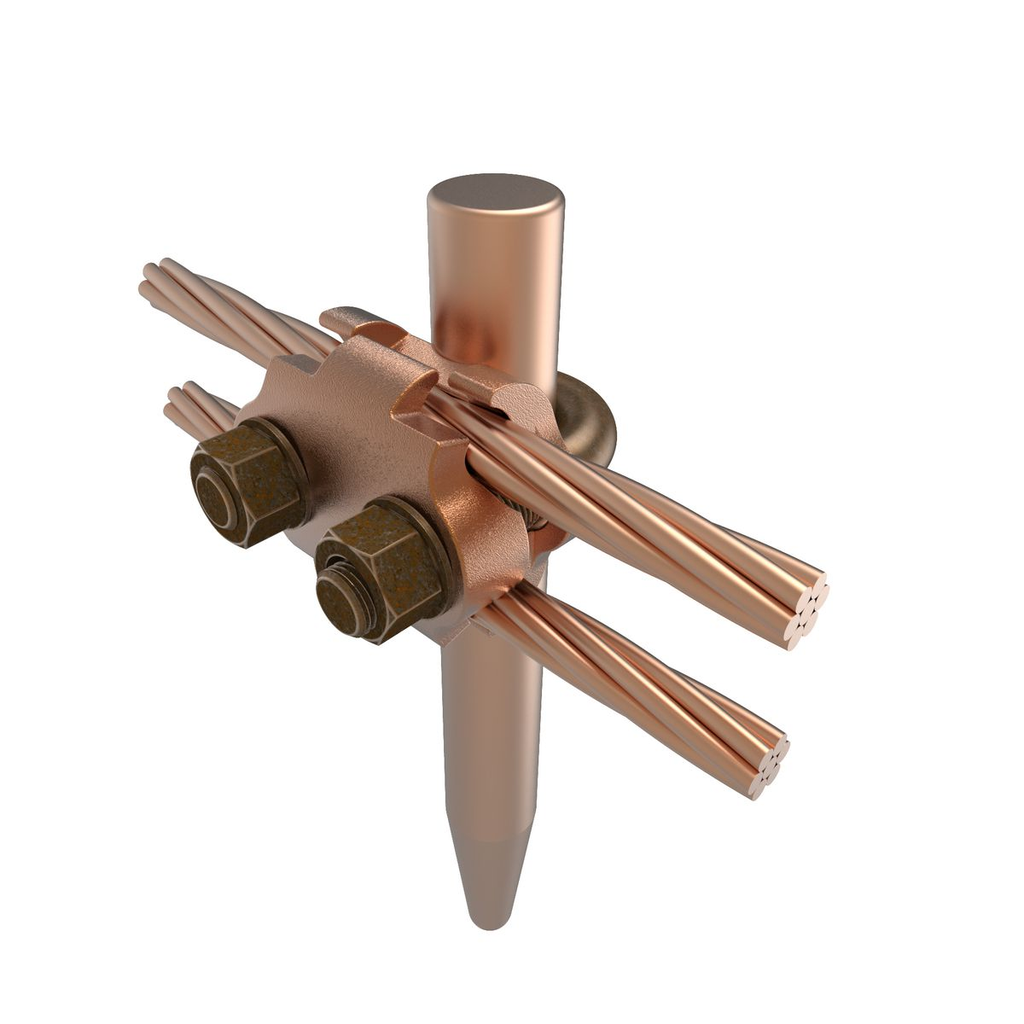

Mechanical Grounding Connector; 2 Cables to Rod or Pipe
SKU: #331288
Part: #GP6429
UPC: 781810260555
Mechanical Grounding Connector; 2 Cables to Rod or Pipe
SKU: #331288
Part: #GP6429
UPC: 781810260555
Description
Mechanical Grounding Connector; 2 Cables to Rod or Pipe – Grounding Connector
This mechanical grounding connector is designed for joining a range of parallel copper cables perpendicular to rod, pipe, or column. It is suitable for direct burial in earth or concrete, making it an essential component for electrical distributors and switchgear suppliers involved in grounding and bonding applications. The connector supports copper wire sizes from 2/0 AWG solid up to 250 kcmil stranded and fits rods or pipes ranging from 5/8" to 3/4".
Specifications
- Application: For Joining A Range Of Parallel Copper Cables Perpendicular To Rod, Pipe Or Column, Direct Burial In Earth Or Concrete
- Material: Copper Alloy
- Width: 2.12 in (54 mm)
- Height: 2.88 in (73.2 mm)
- Length Overall: 2.06 in (52 mm)
- Conductor Rod Size Range: 5/8 in - 3/4 in
- Conductor Copper Solid Size Range: 2/0 - 4/0 AWG
- Conductor Copper Stranded Size Range: 1/0 - 250 kcmil
- Installation Torque Recommended: 240 lbs/in
- UL Listed: Yes
- UL Listed for Direct Burial: Yes
- RoHS Compliance Status: EX
- Country of Origin: Mexico
- Manufacturer: Burndy
- Manufacturer Part #: GP6429
- UPC: 781810260555
Features
- Rated for direct burial in earth or concrete
- UL467 Listed for the US and Canadian markets
- One-wrench installation for ease of use
- Durium™ silicon bronze screw material for reliable mechanical connection
- Supports mechanical grounding for copper cables to rod or pipe
