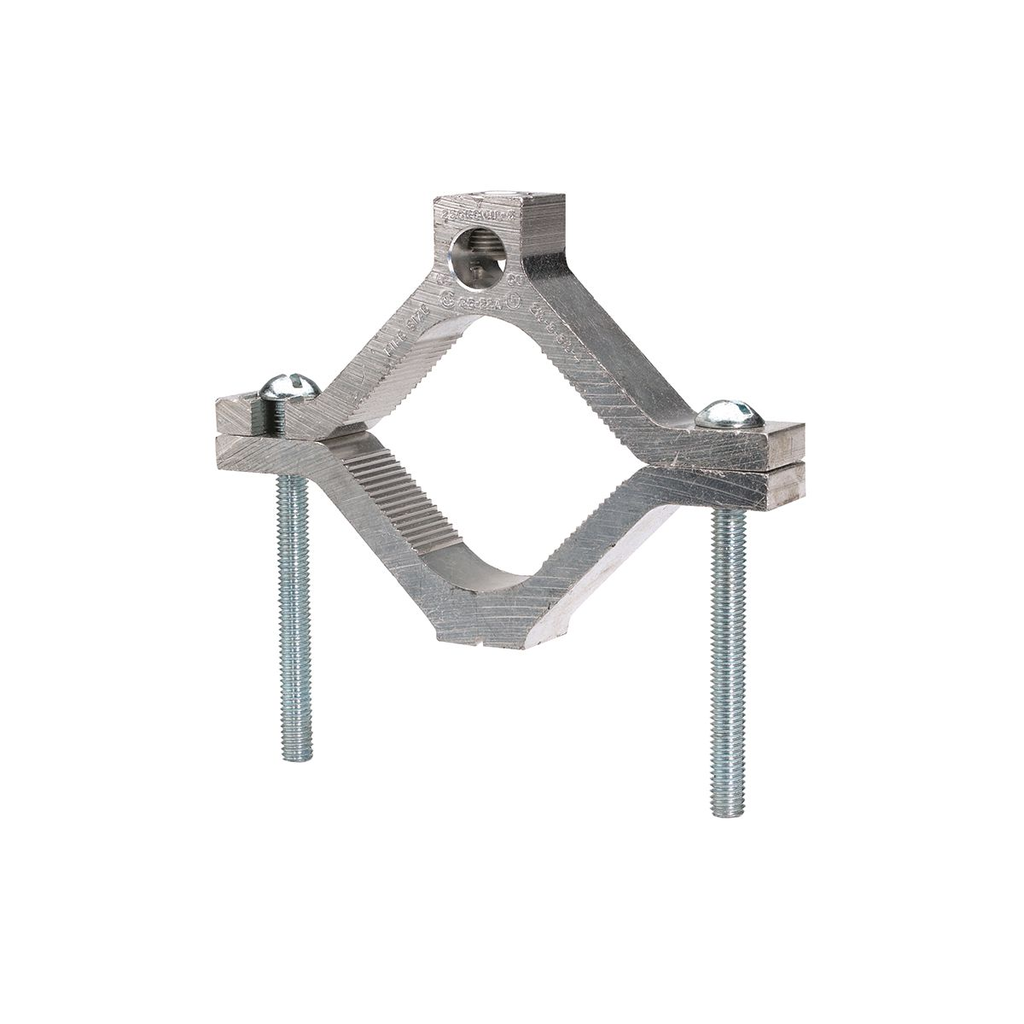

Mechanical Ground Connector; Cable to Water Pipe – Grounding Clamp

This Mechanical Ground Connector is designed for secure grounding connections between cable and water pipe. It is dual-rated for use with both copper and aluminum conductors, making it a versatile choice for electrical distributors and switchgear suppliers requiring reliable grounding solutions. Suitable for copper water pipe, galvanized pipe, or steel conduit, it supports conductor sizes from 14 AWG to 1/0 AWG and pipe sizes from 1/2" to 1".

Specifications

• Manufacturer: Burndy
• Manufacturer Part #: GC15A
• Material: Aluminum
• Plating: Tin-plated to reduce contact resistance and prevent galvanic corrosion
• Application: For use with copper or aluminum conductors to copper water pipe, galvanized pipe, or steel conduit
• Conductor Size Range: 14 AWG – 1/0 AWG (Copper and Aluminum)
• Pipe Size Range: 1/2" – 1"
• Hole Size: 0.40 inches
• Width: 0.69 inches
• Length Overall: 2.25 inches (57 mm)
• Voltage Rating: Maximum 600 V
• UL Listed: Yes (UL467)
• Buy American Compliant: Yes (BABA compliant through December 2025)
• Country of Origin: United States
• Product Weight: 0.1300 lbs

Features

• Dual-rated for both copper and aluminum conductors providing maximum flexibility
• Tin-plated surface to minimize contact resistance and prevent galvanic corrosion
• Range-taking clamps cover a wide range of pipe sizes from 1/2" to 4" with only three catalog numbers
• UL467 Listed for grounding applications
• Made in the USA ensuring compliance with Buy American standards
