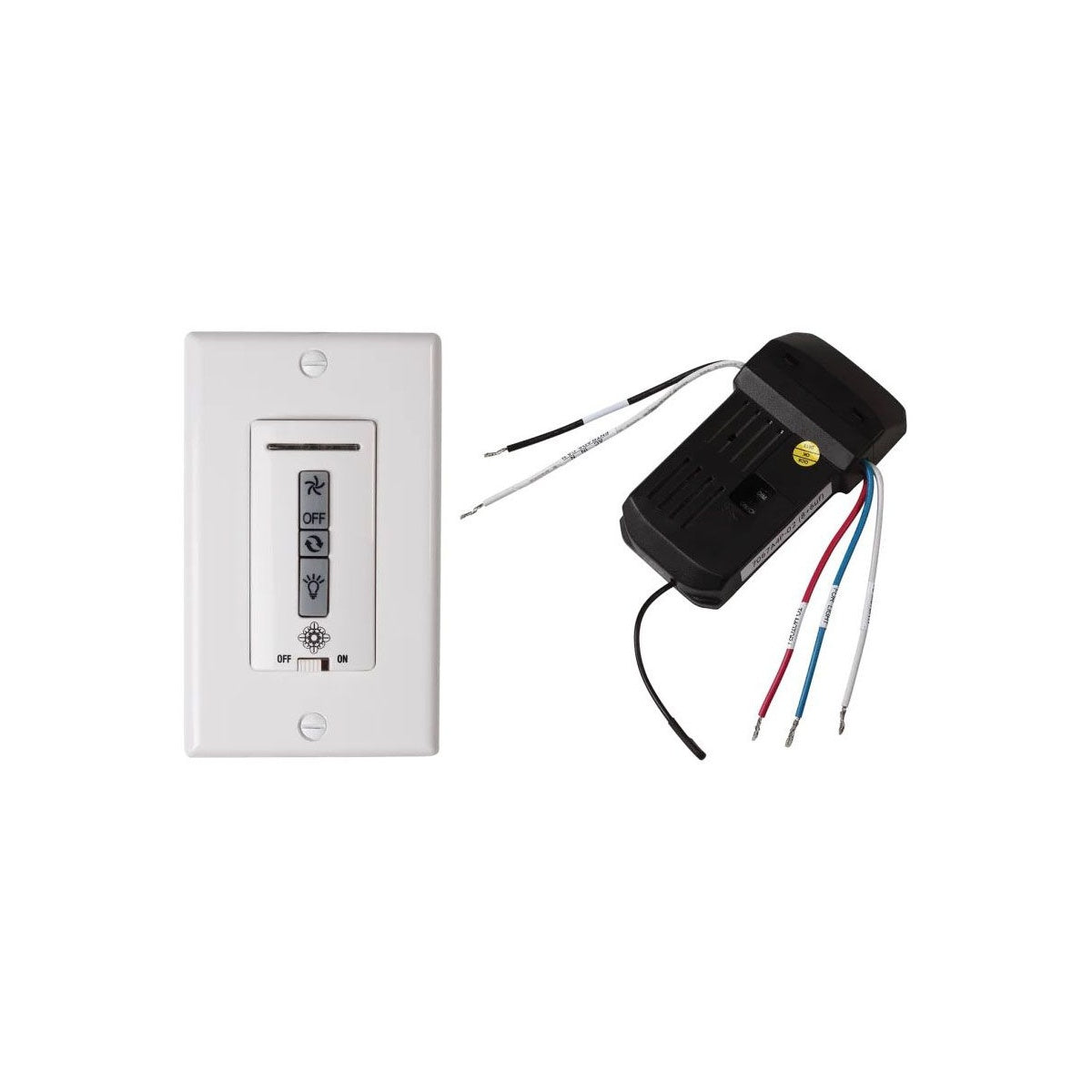

MCRC3, Ceiling Fan Wall/Handheld Remote Control Kit – Universal Fan Remote Control

The MCRC3 Ceiling Fan Wall/Handheld Remote Control Kit by Monte Carlo is designed for indoor use and works with virtually all pull-chain ceiling fans, including Monte Carlo models and many others. This remote control kit upgrades a standard three-speed fan to a four-speed fan by adding an additional medium speed setting. It provides both a portable handheld remote with a wall holster and a hardwired wall mount option, ensuring versatile installation and easy access. The magnetized transmitter allows attachment to most metal surfaces, preventing loss and enhancing convenience. The MCRC3 is suitable for electrical distributors and lighting solutions providers looking to offer reliable fan control accessories.

Specifications

• Manufacturer: Monte Carlo
• Manufacturer Part #: MCRC3
• Finish: White
• Product Weight: 0.8 lbs
• Control Type: 2-wire wall control and handheld transmitter
• Fan Speeds: Four speeds (Low, Low/Medium, Medium/High, High)
• Compatibility: Works with virtually all pull-chain ceiling fans
• Surge Protection: 2,000W (twice the industry standard)
• Frequency Options: Over 60,000 frequencies to minimize interference
• Power Source: Battery operated handheld transmitter (includes extra battery)

Features

• Universal compatibility with most pull-chain ceiling fans
• Non-reversing fan and light control functionality
• Magnetized handheld transmitter for secure attachment to metal surfaces
• Low-profile wireless wall holster fits over standard switch plates or mounts elsewhere
• Single-button speed control with LED speed indicator lights
• On/Off and dimming control for CFL, incandescent, or LED lighting via dip switch on receiver
• Canopy installed receiver for easy integration with fan
• Includes white and almond face plates for aesthetic flexibility
• Handheld and wired controls can work in concert for ultimate control
