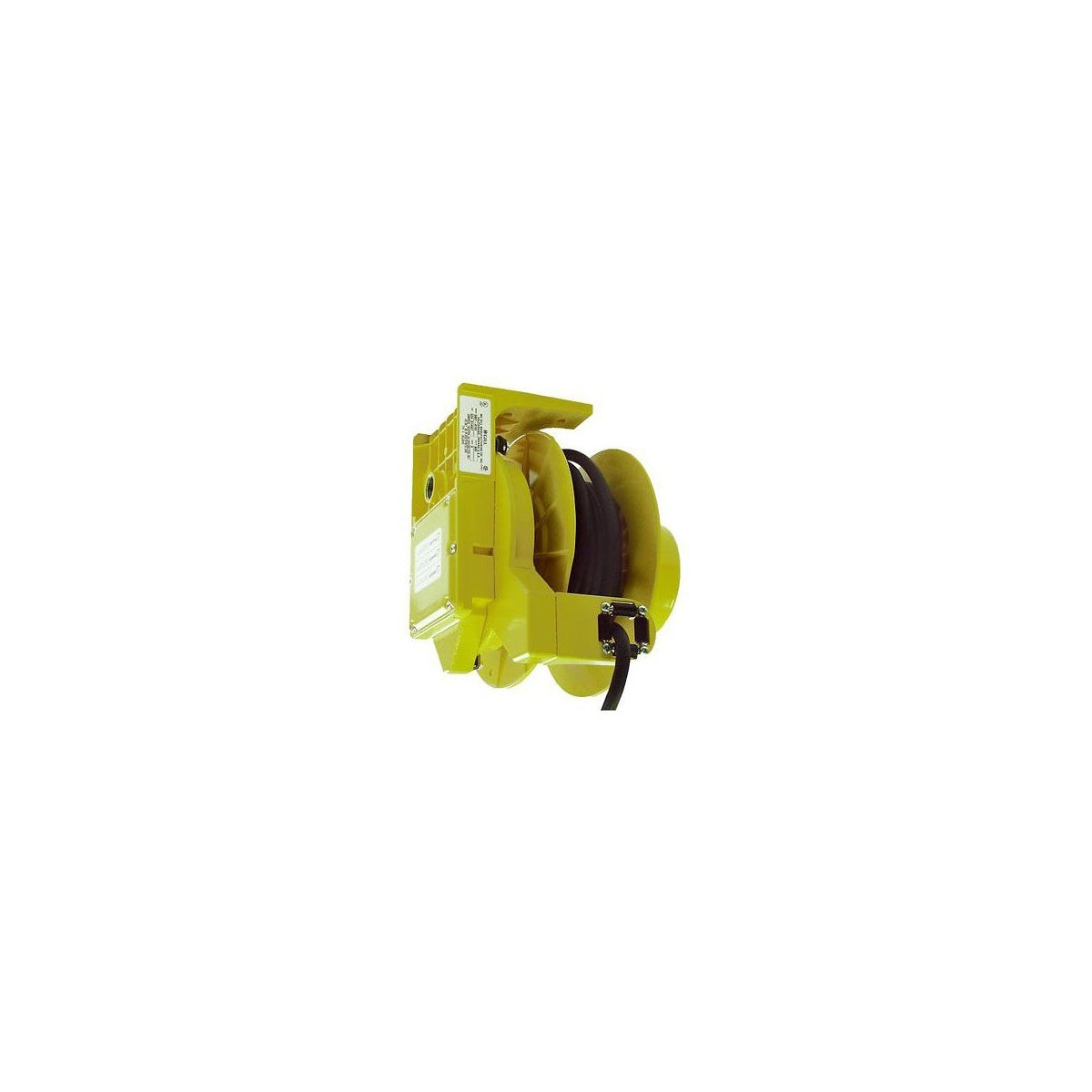

MC GILL 8729 Cord Reel 70FT 12/3 SO – Heavy Duty Electrical Cord Reel

The MC GILL 8729 is a heavy duty, weather-tight and dust-tight cord reel designed for industrial applications including hoists, electric tools, and moving equipment. It is suitable for electrical distributors and lighting solutions requiring reliable wire and cable management. This cord reel features a durable construction with corrosion resistance and a self-contained mainspring for long service life. It is compatible with black SO cable up to 12 conductors and includes a removable ratchet for flexible application use.

Specifications

• Manufacturer: MC GILL MFG CO
• Manufacturer Part Number: 8729
• Cord Length: 70 ft (21.3 m)
• Cord Type: 12/3 SO cable
• Cord Rating: 18 Amp
• Voltage Rating: 600 V
• Product Weight: 150 lbs
• Construction: Heavy gauge steel with yellow powder polyester coat
• Collector Ring: 30-75 Amp modular design for long service life
• Line Entry: 1” NPT in junction box

Features

• Weather-tight and dust-tight construction for heavy-duty industrial use
• Corrosion resistant materials
• Sufficient spring tension to limit cable sag to no more than 10% when stretched horizontally
• Fully adjustable four roller cable guide to minimize cable wear
• Long life, self-contained mainspring
• Removable ratchet for application flexibility
• 330° pivot bases available for 2-6 conductor reels
