MC GILL 8694 MC GILL 8694 MC GILL 8694 CORD REEL 30FT 12/4 SO
SKU: #107601
Part: #8694
UPC: 036283269933
MC GILL 8694 MC GILL 8694 MC GILL 8694 CORD REEL 30FT 12/4 SO
SKU: #107601
Part: #8694
UPC: 036283269933
Description

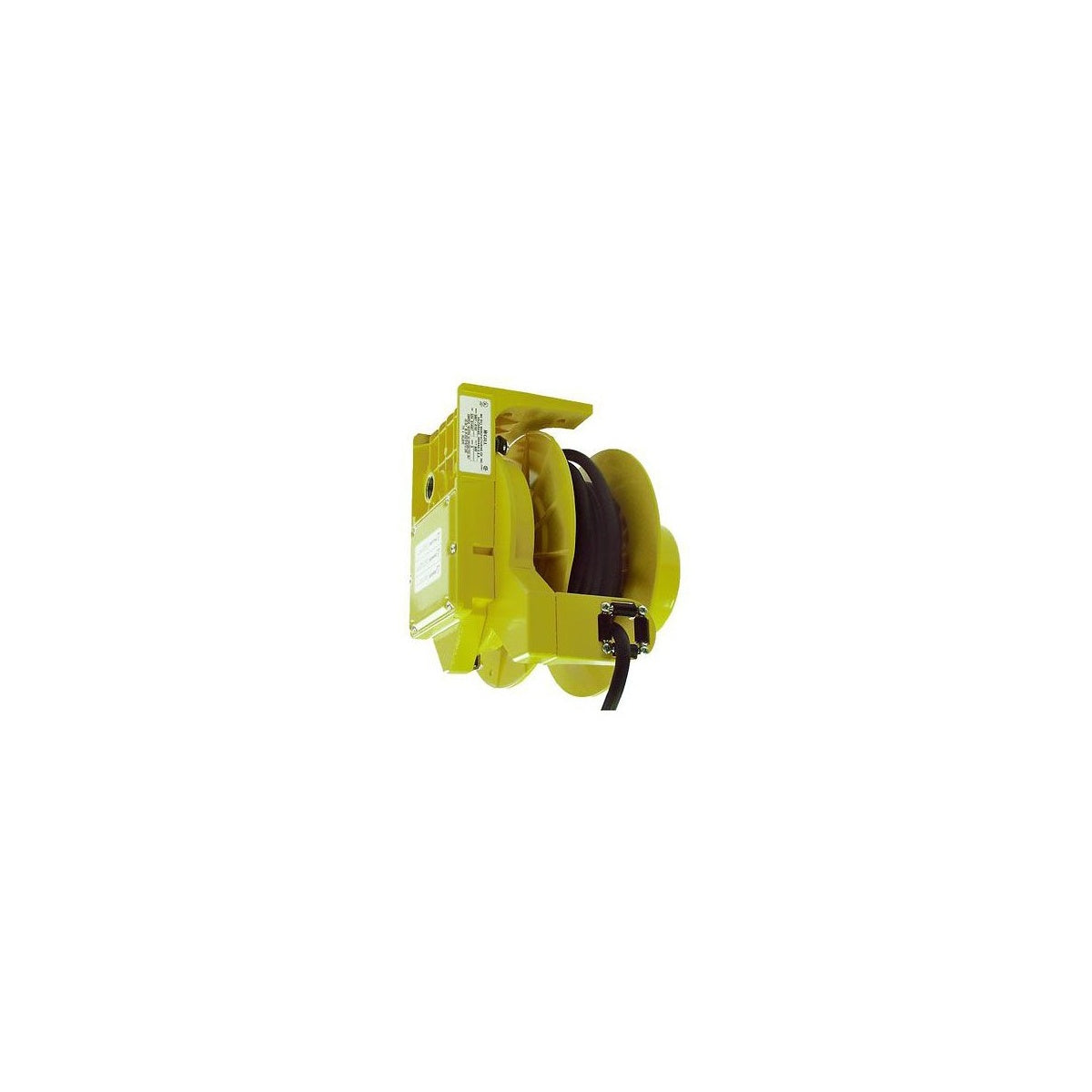

MC GILL 8694 Cord Reel 30FT 12/4 SO - Electrical Cord Reel
The MC GILL 8694 cord reel is designed for heavy-duty industrial applications requiring reliable cable management. This 30-foot, 12/4 SO cord reel is suitable for use with hoists, electric tools, and moving equipment. As an essential component for electrical distributors and lighting solutions providers, it offers durable, weather-tight, and dust-tight construction to withstand demanding environments. It is engineered to minimize cable wear and ensure long service life in wire and cable handling systems.
Specifications
- Manufacturer: MC GILL MFG CO
- Manufacturer Part #: 8694
- Cord Length: 30 feet
- Cable Type: 12/4 SO
- Current Rating: 14 Amp
- Product Weight: 40 lbs
- UPC: 036283269933
- Voltage Rating: 600 V
- UL Listed: E53326
- UL Standard: 355
- CSA Approved
- NEMA 4 Rated
- Material: Aluminum die cast with yellow polyester powder coat
- Line Entry: 1” NPT in junction box
Features
- Weather-tight and dust-tight construction for heavy-duty industrial use
- Corrosion resistant aluminum die cast frame with yellow powder coat finish
- Sufficient spring tension limiting cable sag to no more than 10% when stretched horizontally
- Fully adjustable four roller cable guide to minimize cable wear
- Long-life, self-contained mainspring for reliable retraction
- Furnished with black SO cable, 3 and 4 conductors
- Removable ratchet for application flexibility
- 30 Amp, 600 V modular collector ring designed for long service life
- Optional 330° pivot base available
