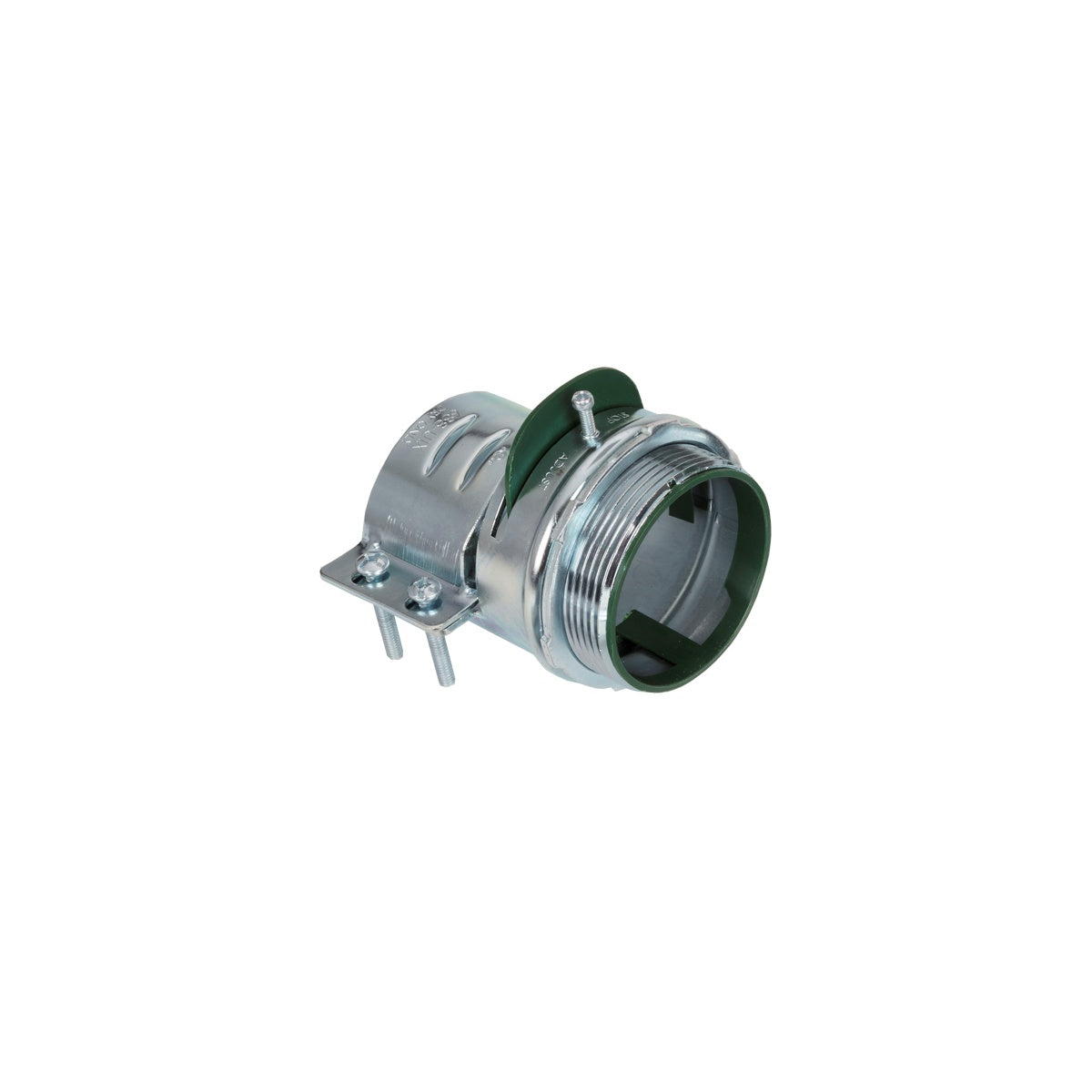

MC-FLEXFIT® Adjustable Endstop MC Connector 3" Zinc Plated Steel

The MC-FLEXFIT® Adjustable Endstop MC Connector 3" by Bridgeport Fittings is designed to securely connect MC feeder cable to electrical boxes or enclosures without requiring separate bushings. This heavy-duty zinc plated steel connector features an innovative one-piece armor stop and insulated throat, providing enhanced conductor protection. Its patented two-position, two-screw hinge design accommodates a wide range of MC feeder cable sizes, making it suitable for various electrical distributor and lighting solutions applications.

Specifications

• Material: Zinc Plated Steel
• Finish: Zinc Electro-Plated
• Cable Entry: Two position/two screw hinge design allowing a large cable range without separate bushings
• Cable Range: Fits 750-3 to 750-4 MC feeder cable (2.90" to 3.30")
• Knockout Size: 3"
• Dimensions: Length 4.98 in, Width 4.705 in, Depth 2.25 in
• Product Weight: 1.885 lbs
• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 688-UIX
• Country of Origin: China

Features

• One-piece armor stop and insulated throat for greater conductor protection
• Patented two-position/two-screw hinge design for easy adjustment and wide cable compatibility
• Heavy duty construction supports large sized MC feeder cable without deformation
• Eliminates the need for separate bushings during installation
• UL Listed for safety and compliance
