MC Cable Connector, SS, 3/4" NPT, range over jacket .955 - 1.080, range over armor .845 - 1.00
SKU: #371666
Part: #RTKSS-075-5
UPC: 785411817668
MC Cable Connector, SS, 3/4" NPT, range over jacket .955 - 1.080, range over armor .845 - 1.00
SKU: #371666
Part: #RTKSS-075-5
UPC: 785411817668
Total Price: $303.48 per each Sold in increments of 1 each
Description

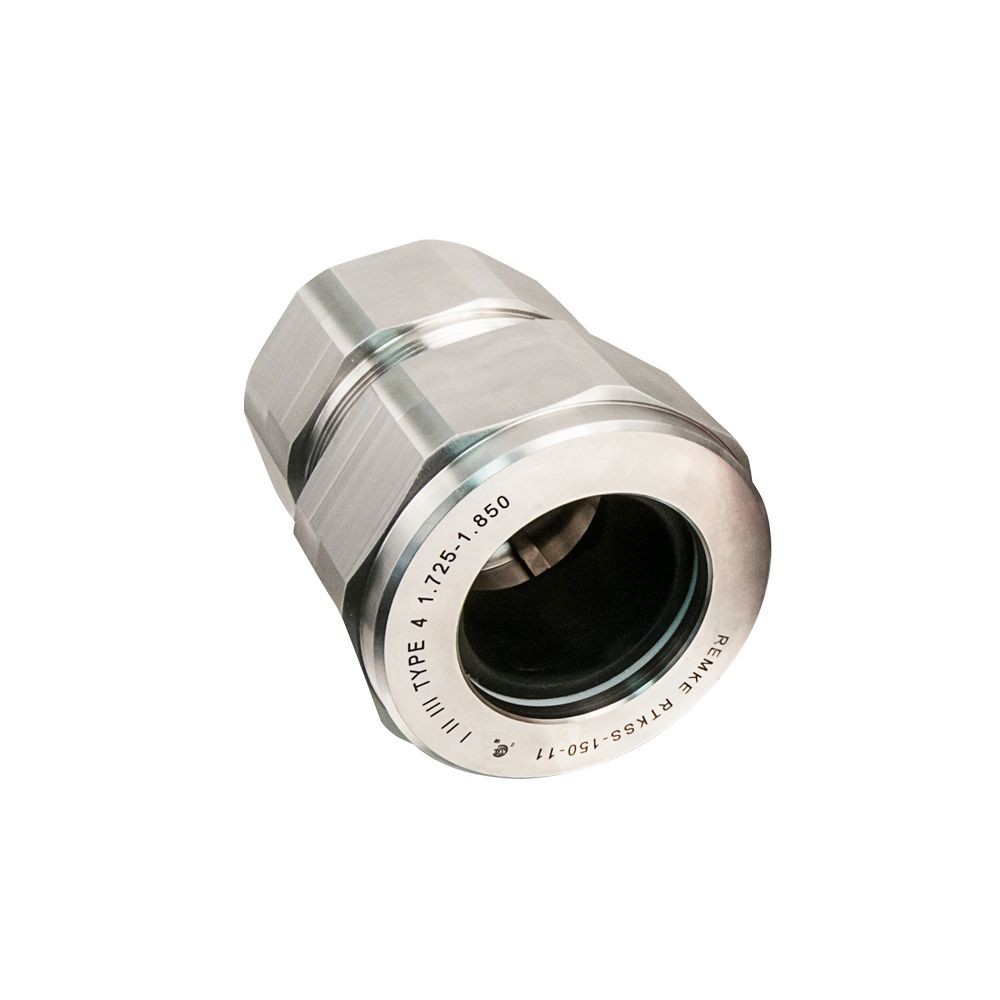

MC Cable Connector, SS, 3/4" NPT – Stainless Steel Cable Connector
The Remke PowR-Teck MC Cable Connector in stainless steel is designed for secure and watertight connections of metal-clad cables in electrical distribution and lighting solutions. Suitable for use by electrical distributors and switchgear suppliers, this connector features a one-piece compact design that simplifies installation with no disassembly required. It is rated NEMA 4 and IP65, ensuring reliable performance in wet or dry indoor and outdoor environments, including hazardous locations when combined with certified sealing fittings.
Specifications
- Material: Stainless Steel
- Color: Ivory
- Size: 3/4" NPT
- Range Over Jacket: 0.955" - 1.080"
- Range Over Armor: 0.845" - 1.000"
- Length: 3.21 in
- Width: 2.2 in
- Height: 2.2 in
- Max Temperature: 121 degrees Celsius
- Min Temperature: -40 degrees Celsius
- Product Weight: 0.7570 lbs
- Manufacturer Part #: RTKSS-075-5
- Country of Origin: United States
- Made in USA: Yes
Features
- Exclusive one-piece PowR-Lock™ design for superior conductivity and compact size
- No disassembly required for fast and easy installation
- Neoprene bushing provides enhanced pull-out resistance and sealing protection
- Embedded Buna-N O-Ring for watertight seal (Viton® option available)
- Rated NEMA 4 and IP65 for use in wet or dry locations
- Suitable for use with metal-clad cable in a variety of industrial applications
