MC Cable Connector, SS, 1" NPT, range over jacket 1.205 - 1.350, range over armor 1.095 - 1.270
SKU: #375271
Part: #RTKSS-100-7
UPC: 785411817682
MC Cable Connector, SS, 1" NPT, range over jacket 1.205 - 1.350, range over armor 1.095 - 1.270
SKU: #375271
Part: #RTKSS-100-7
UPC: 785411817682
Description

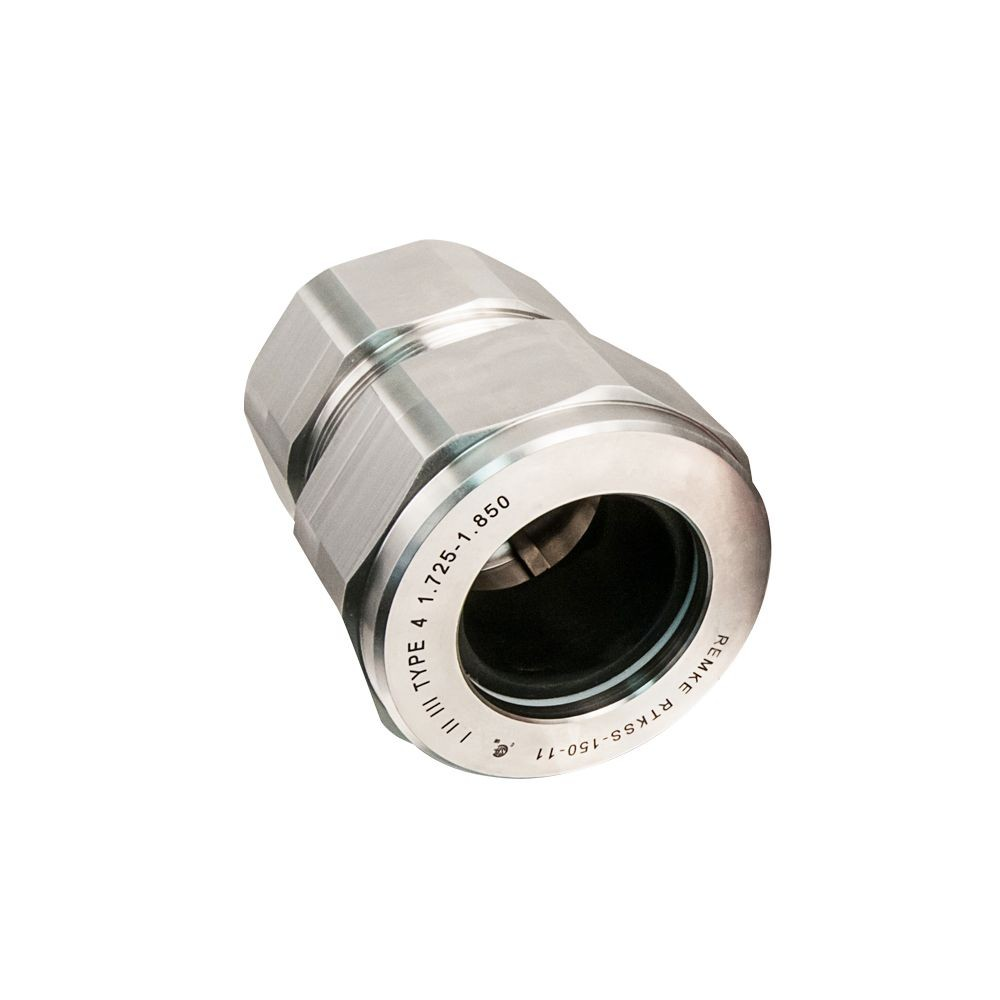

MC Cable Connector, Stainless Steel, 1" NPT - Electrical Connector
The Remke MC Cable Connector is a stainless steel, one-piece electrical connector designed for secure and watertight connections of metal-clad (MC) cables in a variety of industrial and commercial applications. Ideal for use by electrical distributors and switchgear suppliers, this connector supports wire and cable installations where durability and environmental protection are critical. Rated NEMA 4 and IP65, it ensures reliable sealing around jacketed metal cables and enclosure entries, suitable for both indoor and outdoor use in wet or dry locations.
Specifications
- Material: Stainless Steel
- Color: Ivory
- Hub Size: 1" NPT
- Cable Range Over Jacket: 1.205" - 1.350"
- Cable Range Over Armor: 1.095" - 1.270"
- Dimensions (L x W x H): 3.29 in x 2.47 in x 2.47 in
- Product Weight: 1.0790 lbs
- Temperature Range: -40°C to 121°C
- Country of Origin: United States
- Manufacturer: Remke
- Manufacturer Part Number: RTKSS-100-7
- Made in USA: Yes
- Ratings: NEMA 4, IP65
Features
- Exclusive one-piece PowR-Lock™ design for compact size and easy installation without disassembly
- Neoprene bushing provides superior pull-out and sealing protection
- Embedded Buna-N O-Ring for enhanced watertight sealing (Viton® available)
- Designed to form a watertight seal around jacketed metal cable and at enclosure entry
- Suitable for vertical or horizontal cable runs in wet or dry environments
- Meets UL standards for raintight metal clad cable fittings
