MC Cable Connector, SS, 1-1/4" NPT, range over jacket 1.350 - 1.475, range over armor 1.240 - 1.395
SKU: #375226
Part: #RTKSS-125-8
UPC: 785411817705
MC Cable Connector, SS, 1-1/4" NPT, range over jacket 1.350 - 1.475, range over armor 1.240 - 1.395
SKU: #375226
Part: #RTKSS-125-8
UPC: 785411817705
Description

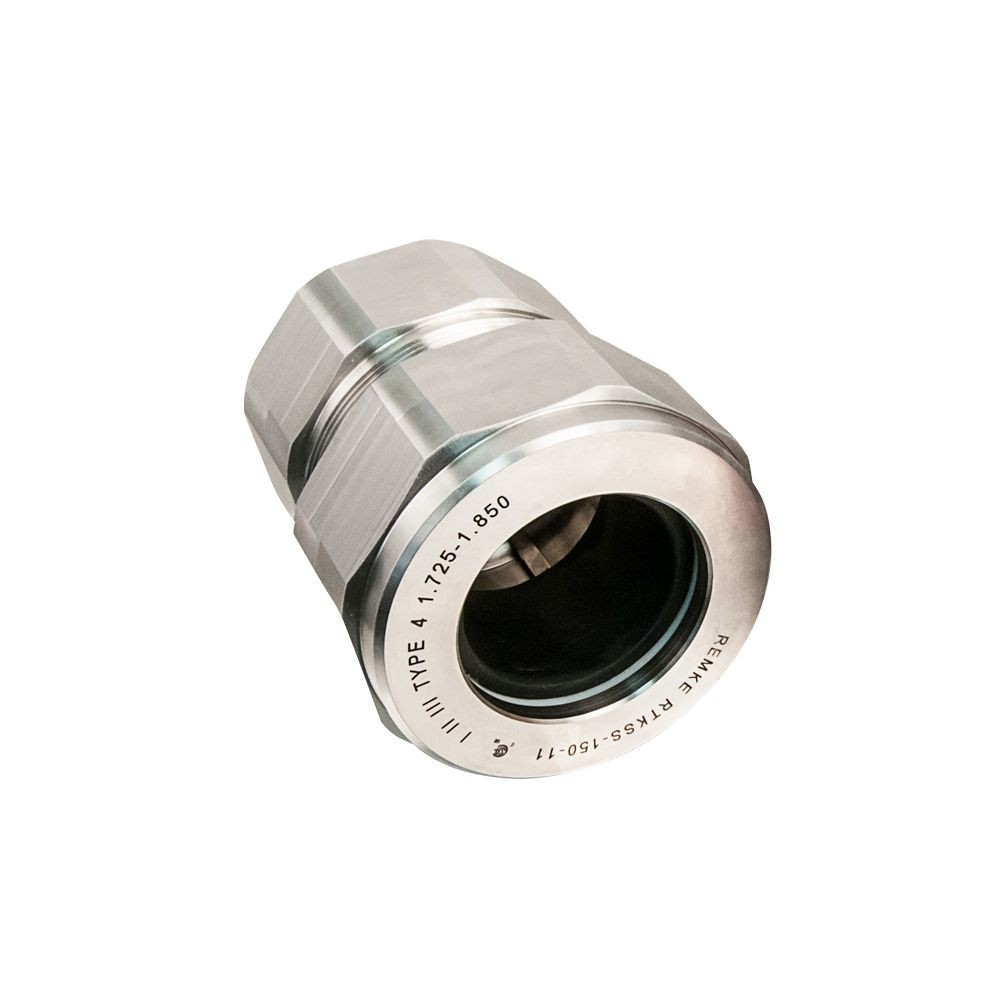

MC Cable Connector, Stainless Steel, 1-1/4" NPT – Electrical Cable Connector
The Remke MC Cable Connector in stainless steel is designed for secure and watertight connections of metal-clad (MC) cables in electrical distribution and lighting solutions. Ideal for use by electrical distributors and switchgear suppliers, this connector accommodates cable jacket diameters from 1.350" to 1.475" and armor diameters from 1.240" to 1.395". Its robust stainless steel construction and NEMA 4, IP65 rating ensure durability and reliability in indoor and outdoor applications including power plants, manufacturing facilities, and water treatment plants.
Specifications
- Material: Stainless Steel
- Color: Ivory
- Dimensions (L x W x H): 4.23 in x 2.97 in x 2.97 in
- Cable Range Over Jacket: 1.350" - 1.475"
- Cable Range Over Armor: 1.240" - 1.395"
- Hub Size: 1-1/4" NPT
- Maximum Temperature: 121 degrees Celsius
- Minimum Temperature: -40 degrees Celsius
- Product Weight: 1.0790 lbs
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer Part Number: RTKSS-125-8
- UPC: 785411817705
Features
- One-piece PowR-Lock™ design for superior grounding and conductivity
- No disassembly required for fast and simple installation
- Neoprene bushing provides pull-out resistance and sealing protection
- Embedded Buna-N O-ring for watertight seal (Viton® option available)
- Compact size allows installation in tight spaces
- Rated NEMA 4 and IP65 for wet or dry locations
