MaxGrip M3 Plug, Yellow
SKU: #319598
Part: #PS5965Y
UPC: 785007237467
MaxGrip M3 Plug, Yellow
SKU: #319598
Part: #PS5965Y
UPC: 785007237467
Next day delivery
Description

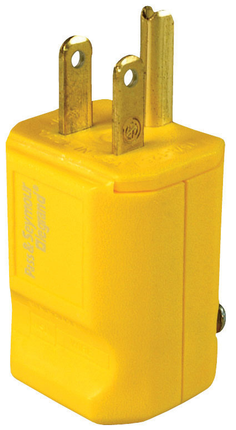

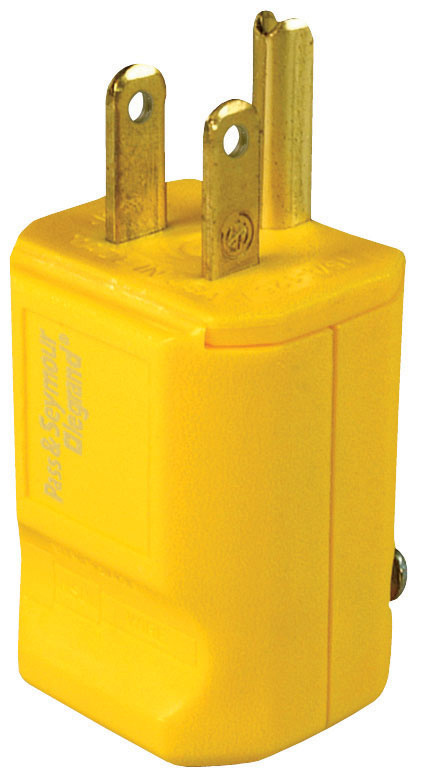

MaxGrip M3 Plug, Yellow - Heavy-Duty Straight Blade Plug
The MaxGrip M3 Plug, Yellow, is a heavy-duty straight blade plug designed for residential and commercial electrical applications. Manufactured by Pass & Seymour, this 15A, 125V plug features a rugged nylon construction with high-impact and arc resistance, making it suitable for demanding environments. It provides a secure wire grounding connection and complies with NEMA 5-15P configuration standards. This plug is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring reliable, durable plug solutions.
Specifications
- Amperage Rating: 15A
- Voltage: 125V
- NEMA Rating: 5-15P
- Number of Poles: Double Pole
- Number of Wires: 3
- Material: Nylon
- Color: Yellow
- Width: 1.34 in
- Height: 1.83 in
- Connection: Wire Grounding
- Product Weight: 0.15 lbs
- Application: Residential/Commercial
- Country of Origin: Mexico
- Manufacturer: Pass & Seymour
- Manufacturer Part #: PS5965Y
Features
- Tri-drive assembly and terminal screws for quick and easy installation
- Self-hinged nylon housing for fast wiring and secure closure
- High-retention cord grips to withstand impacts and constant use
- Enclosed terminals provide solid, internally clamped connections
- Molded finger grips promote safe and sure handling
- Crush and impact resistance exceeds hospital grade and Federal Specification requirements
- Arc resistance exceeds UL requirements
- UL Listed (File Number E146159), CSA Certified (File Number LR1765)
- Flammability Rating: UL94 HB
- Operating Temperature Range: -40°C to +75°C continuous
- Terminal accommodation supports #18 AWG to #12 AWG wire sizes
- Dielectric withstand voltage: 1500V minimum
