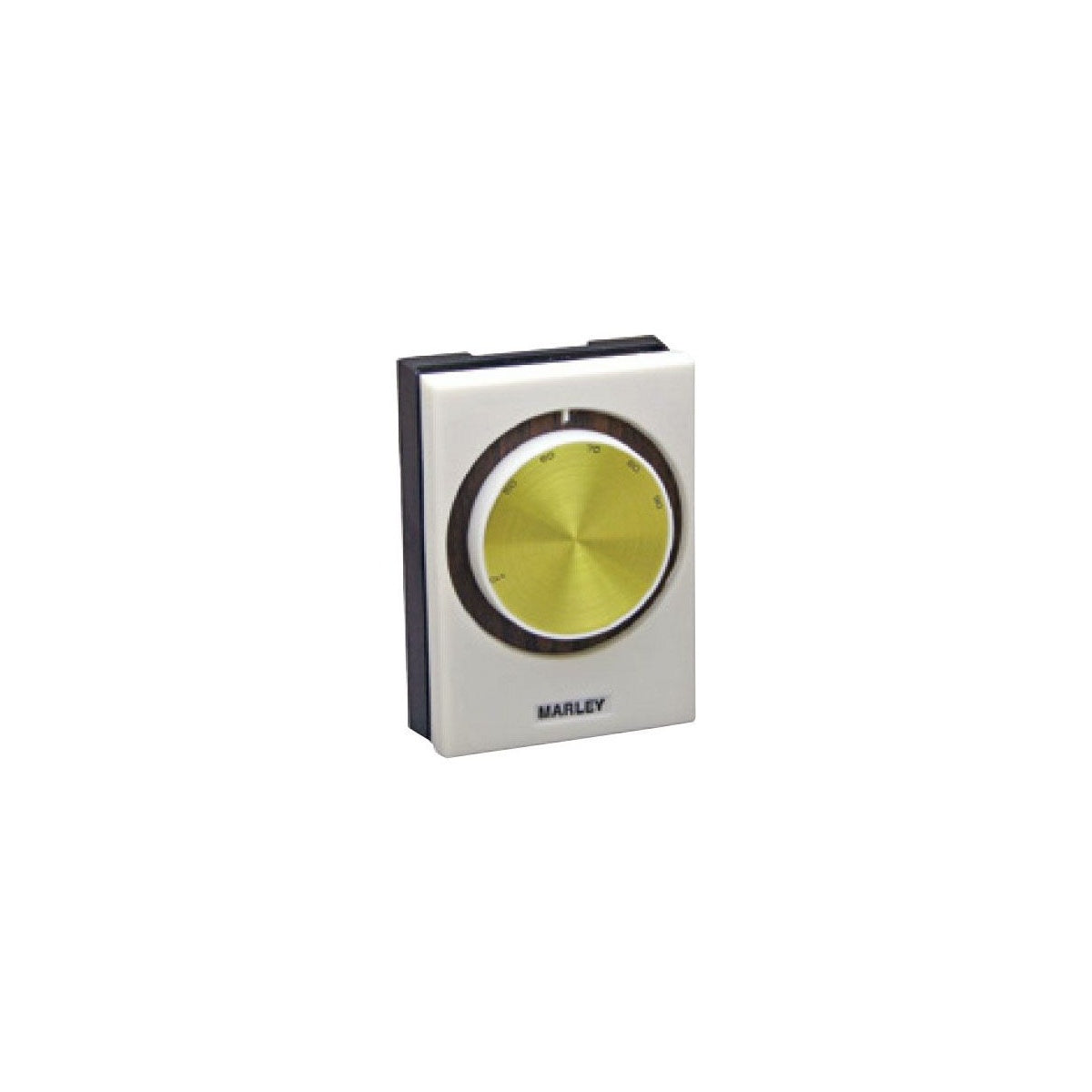

MARLEY T200 DPST Snap Action Line Voltage Thermostat – Line Voltage Thermostat

The MARLEY T200 is a line voltage double-pole snap action thermostat designed for precise temperature control in electrical heating applications. Rated for 22 amps at 120-240V and 18 amps at 277V, it is suitable for use with radiant cove heaters, baseboard heaters, and other resistive heating loads. This thermostat is a reliable component for electrical distributors and switchgear suppliers seeking durable and accurate temperature control solutions in commercial and residential lighting and heating systems.

Specifications

• Type: Double Pole Single Throw (DPST) Snap Action
• Rated Current: 22 Amps at 120-240V, 18 Amps at 277V
• Voltage: Line Voltage (120-277V)
• Temperature Range: 50°F to 90°F
• Differential Accuracy: +/- 2 ½ °F
• Action: Snap Action with Heat Anticipator

Features

• Built-in heat anticipator for closer temperature regulation
• Large knob for easy and precise temperature adjustment
• Durable snap action switch suitable for resistive loads
• Simultaneous switching of two heating circuits for load management
• Designed for use in radiant and baseboard heating applications
