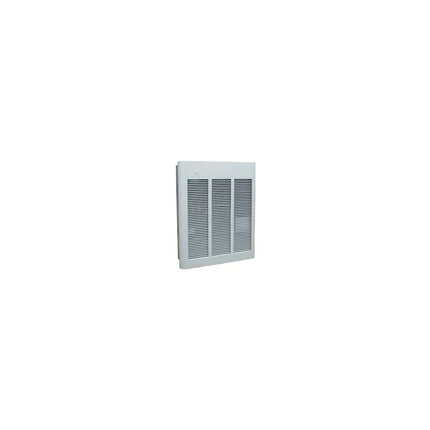

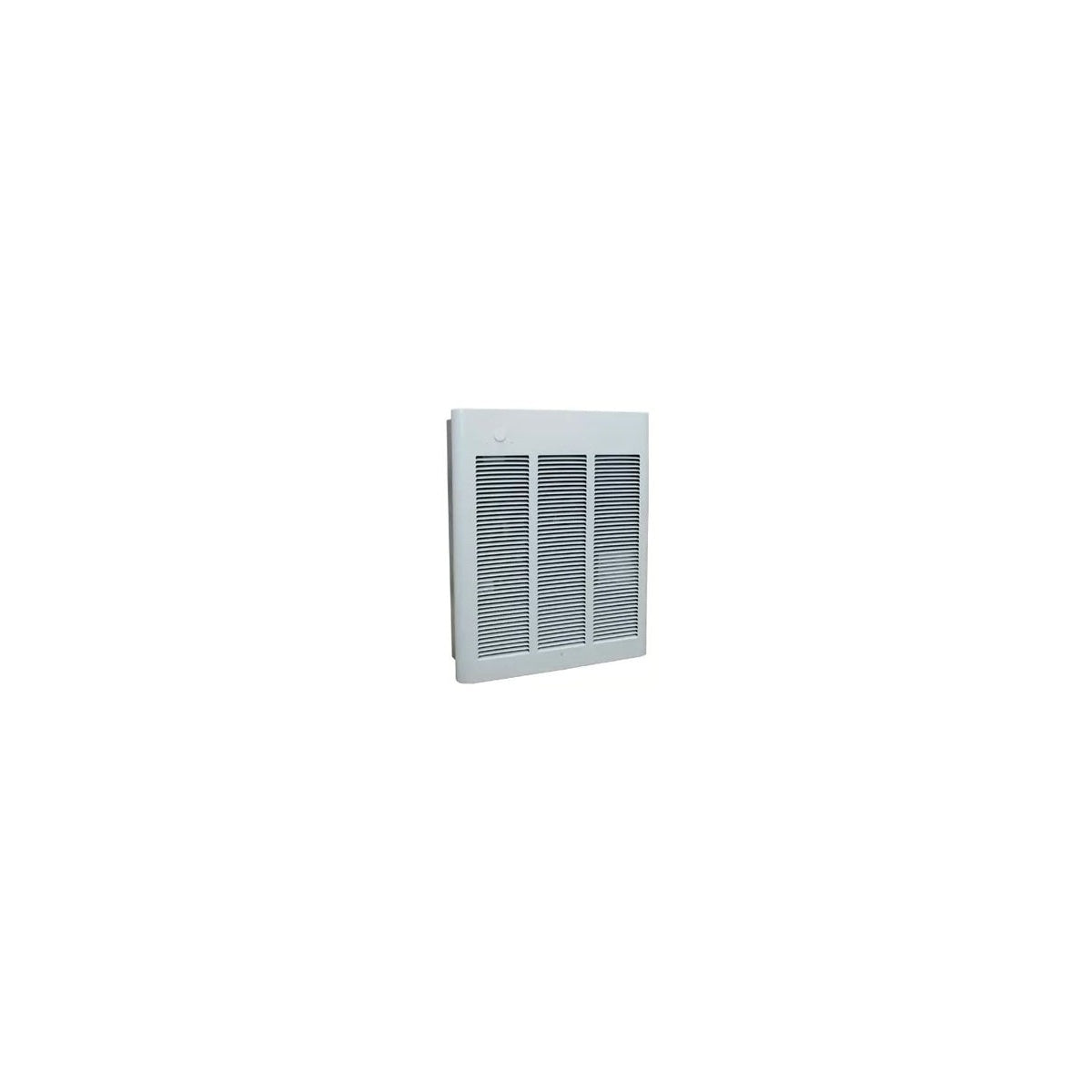

MARLEY CWH3307F 3000W 277V 1PH WH NW Electric Wall Heater

The MARLEY CWH3307F is a commercial fan-forced electric wall heater designed for efficient supplementary heating in light-duty commercial and residential applications. Ideal for offices, reception areas, family rooms, and similar spaces, this heater offers reliable heating performance with a compact design suitable for 2x4 or larger wall installations. As a product from a reputable electrical distributor and lighting solutions provider, it supports safe and convenient installation and operation.

Specifications

• Manufacturer: Marley Engineered Products
• Model Number: CWH3307F
• Wattage: 3000W / 1500W (field convertible to half wattage)
• Voltage: 277V
• Phase: Single Phase (1PH)
• Airflow: 100 CFM
• Amperage: 10.8A / 5.4A
• Weight: Approximately 22 lbs
• Finish: Northern White durable polyester powder coat
• Dimensions (Grille): 19-5/16" H x 15-5/16" W x 3-7/8" D
• Dimensions (Back Box): 18-1/4" H x 14-5/16" W x 3-7/8" D
• Mounting: Recess or surface mount in standard 2" x 4" stud walls

Features

• Heavy-duty steel finned tubular heating elements providing uniform heat and long service life
• Built-in snap action thermostat with temperature range 40¬∫ - 85¬∫F, eliminating radio/TV interference
• Fan delay feature energizes fan only after elements are heated to prevent blowing cold air at startup
• Thermal overheat protector automatically disconnects power in case of overheating for safety
• Built-in power disconnect switch for safe maintenance
• Totally enclosed, permanently lubricated fan motor for long life and low maintenance
• Rugged louvered commercial grade steel grille creating a downflow air pattern
• Can be wired with standard building wire rated for 60¬∞C
• Includes a built-in disconnect switch and grounding provisions
• Field convertible wattage for flexible application requirements
