MARLEY 2546W 1 500W Residential Baseboard Heater – Electrical Heating Solutions

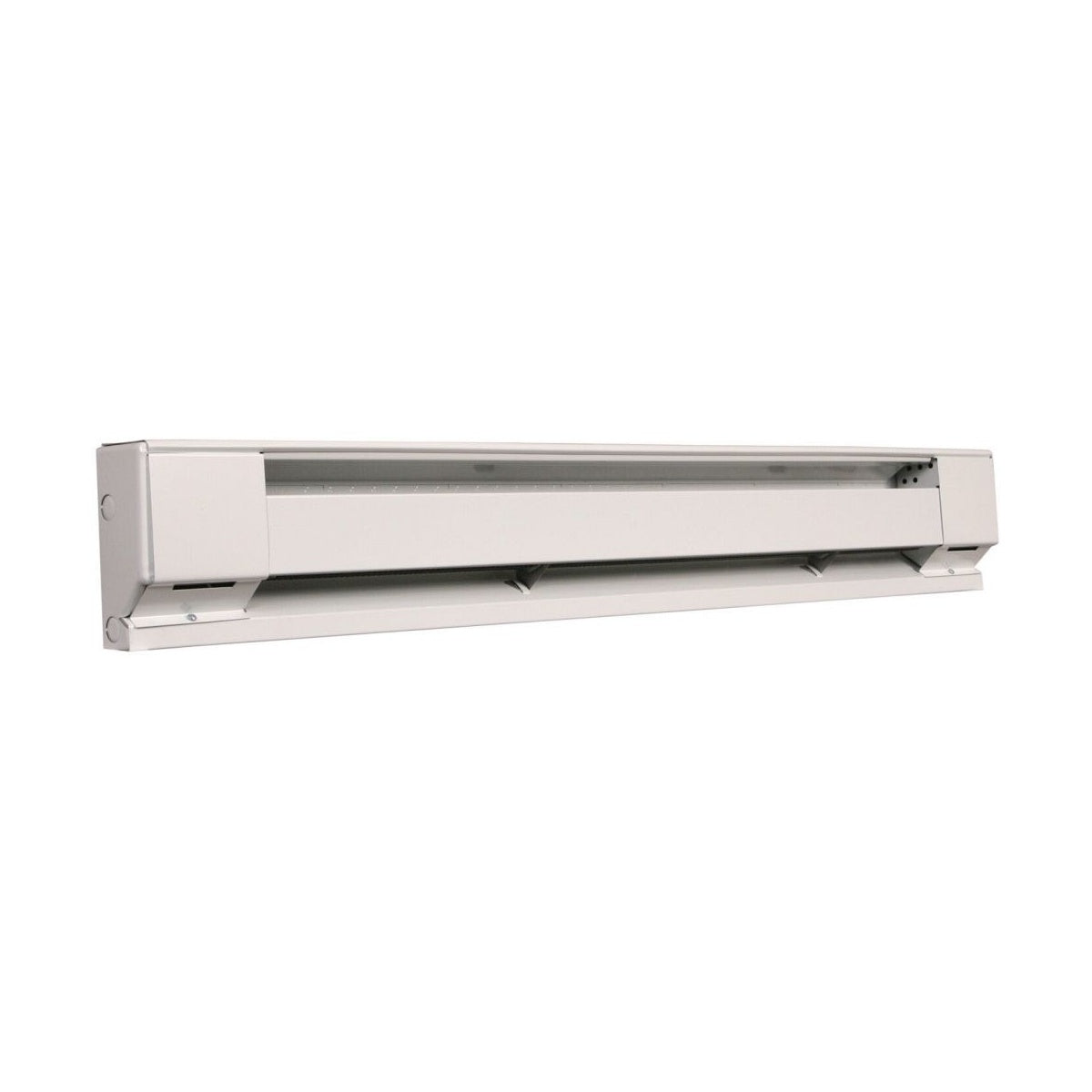

The MARLEY 2546W is a 1500-watt electric baseboard heater designed for residential comfort heating applications. Operating primarily at 240V (with a lower wattage rating at 208V), this 6-foot long unit provides efficient supplemental or primary heating. Manufactured by Marley Engineered Products, this baseboard heater is suitable for installation by electrical distributors and contractors seeking reliable heating solutions integrated with wire and cable systems.

Specifications

• Manufacturer: Marley Engineered Products
• Model Number: 2546W
• Power Rating: 1500W at 240V, 1128W at 208V
• Length: 6 feet (72 inches)
• Operating Voltage: 240V / 208V AC, 60 Hz
• Current Draw: 6.3A at 240V, 5.5A at 208V
• Weight: 14 lbs
• Dimensions: Height 6-3/4 inches, Depth 2-7/8 inches (as per Marley 2500 Series specs)
• Finish: Durable textured polyester powder coat (White or Navajo White available)
• UL Listed: cULus Listed for safety and compliance

Features

• Heating Element: Nickel-chromium wire encased in steel sheath with aluminum fins designed to block sheath radiation front and back for efficient heat transfer
• Built-in linear thermal cut-out for automatic shutoff in case of overheating, resetting when safe
• Heavy gauge steel construction with pre-painted front cover for corrosion resistance
• Designed for use with supply conductors rated for 60¬∞C insulation
• Compatible with Marley thermostats and accessories for precise temperature control
• Installation flexibility with multiple knockouts and built-in cable clamps for secure wiring
• Suitable for residential applications requiring reliable, continuous electric heating
