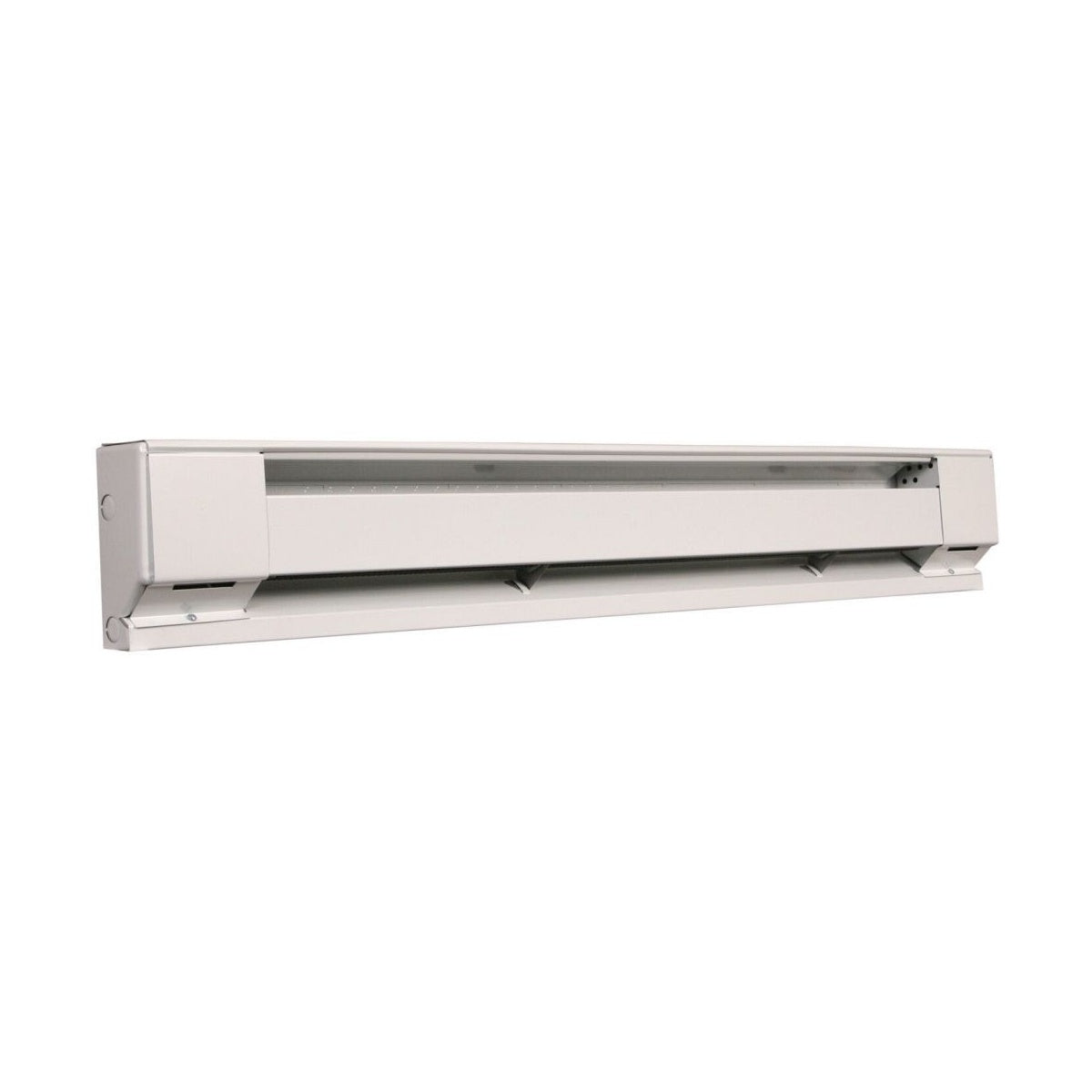

MARLEY 2513W 750W Residential Baseboard Heater

The MARLEY 2513W is a 750-watt, 120-volt electric baseboard heater designed for residential comfort heating applications. Manufactured by Marley Engineered Products, this unit offers reliable, continuous operation suitable for primary or supplementary heating. It is ideal for use in homes and can be integrated seamlessly by electrical distributors and switchgear suppliers into residential electrical systems. The heater requires thermostatic control (not included) for efficient and safe operation and is compatible with a range of wall-mounted thermostats or Marley’s single or double pole thermostat accessories.

Specifications

• Manufacturer: Marley Engineered Products
• Model Number: 2513W
• Power: 750 Watts
• Voltage: 120 Volts AC
• Length: 3 feet (36 inches)
• Current: 6.3 Amps
• Weight: 7.5 lbs
• UL Listed: Yes (cULus listed)
• Construction: Steel enclosure with pre-painted steel front cover
• Heating Element: 80% nickel, 20% chromium wire encased in steel sheath with aluminum fins
• Dimensions: Height 6-3/4 inches, Depth 2-7/8 inches

Features

• Durable textured polyester powder coat finish for corrosion resistance
• Linear thermal cut-out for automatic shut-off in case of overheating
• Designed for use with supply conductors rated for 60¬∞C insulation
• Installation flexibility with built-in junction box and cable clamp for secure wiring
• Compatible with Marley‚Äôs range of accessories including thermostats, load transfer switches, transformer relays, and power switches
• Convection heating design with aluminum fins to optimize heat distribution
• Suitable for mounting directly on finished floors or above baseboards with clearance guidelines for safety and performance
