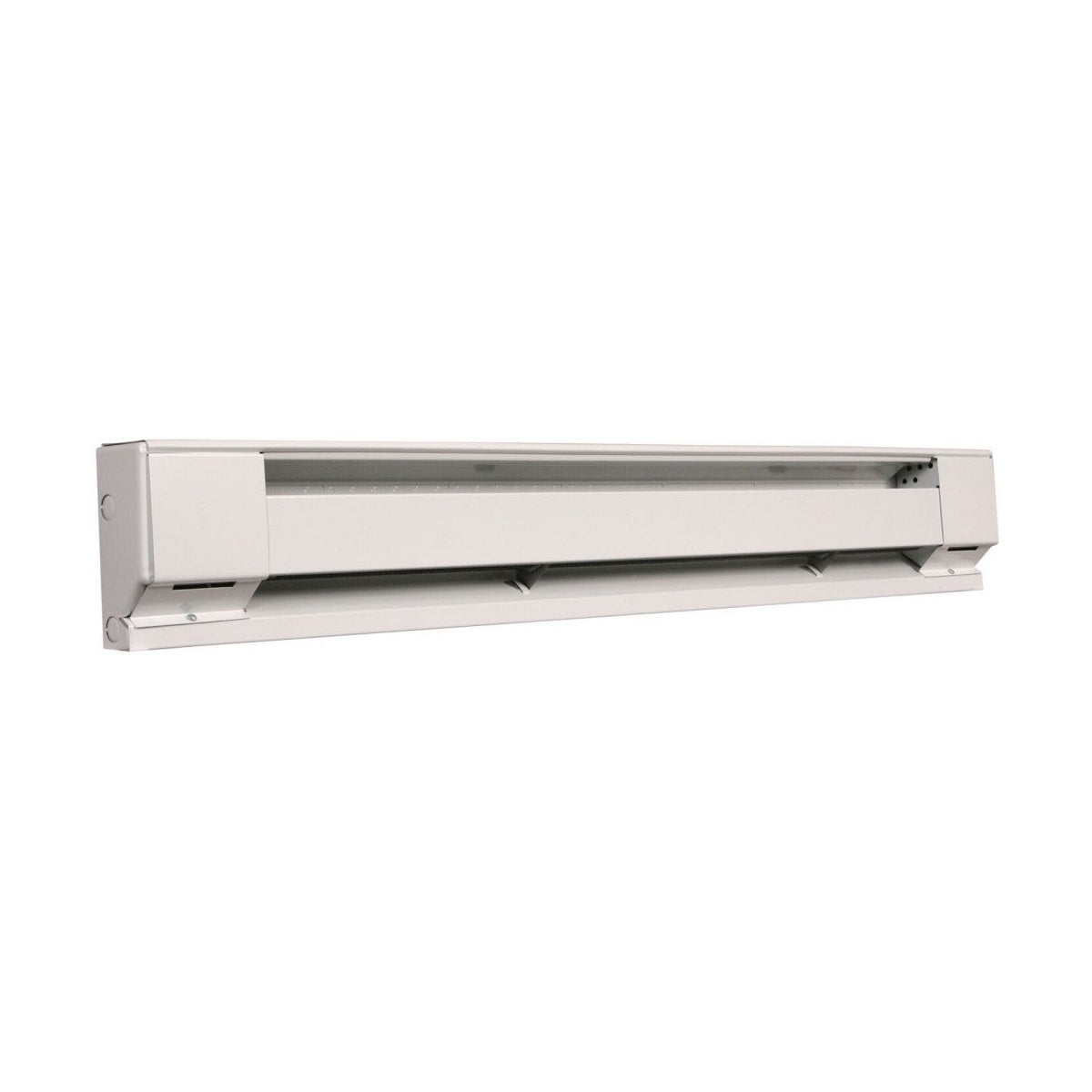

MARLEY 2504W 1 000W AT 208V 4FT Residential Baseboard Heater

The MARLEY 2504W electric baseboard heater is designed for residential comfort heating applications, providing a reliable and efficient heat source. Manufactured by Marley Engineered Products, this 4-foot unit delivers 1000 watts at 208 volts. It is suitable for use in residential environments where thermostatic control is required for safe and efficient operation. This product is ideal for electrical distributors and switchgear suppliers offering wire and cable and lighting solutions that include heating components.

Specifications

• Manufacturer: Marley Engineered Products
• Manufacturer Part #: 2504W
• Voltage: 208 V
• Wattage: 1000 W
• Length: 4 ft (48 inches)
• Product Weight: 10 lbs
• UPC: 098319730138

Features

• Constructed with durable steel enclosure and pre-painted front cover for corrosion resistance
• Heating element composed of 80% nickel, 20% chromium encased in steel sheath for long life
• Aluminum fins designed to block sheath radiation and enhance heat transfer
• Linear thermal cut-out factory installed for automatic shutoff in case of overheating
• Designed for use with supply conductors rated for 60°C insulation
• Thermostatic control required but not included; compatible with single or double pole thermostats
• UL and cUL listed for safety and reliability
