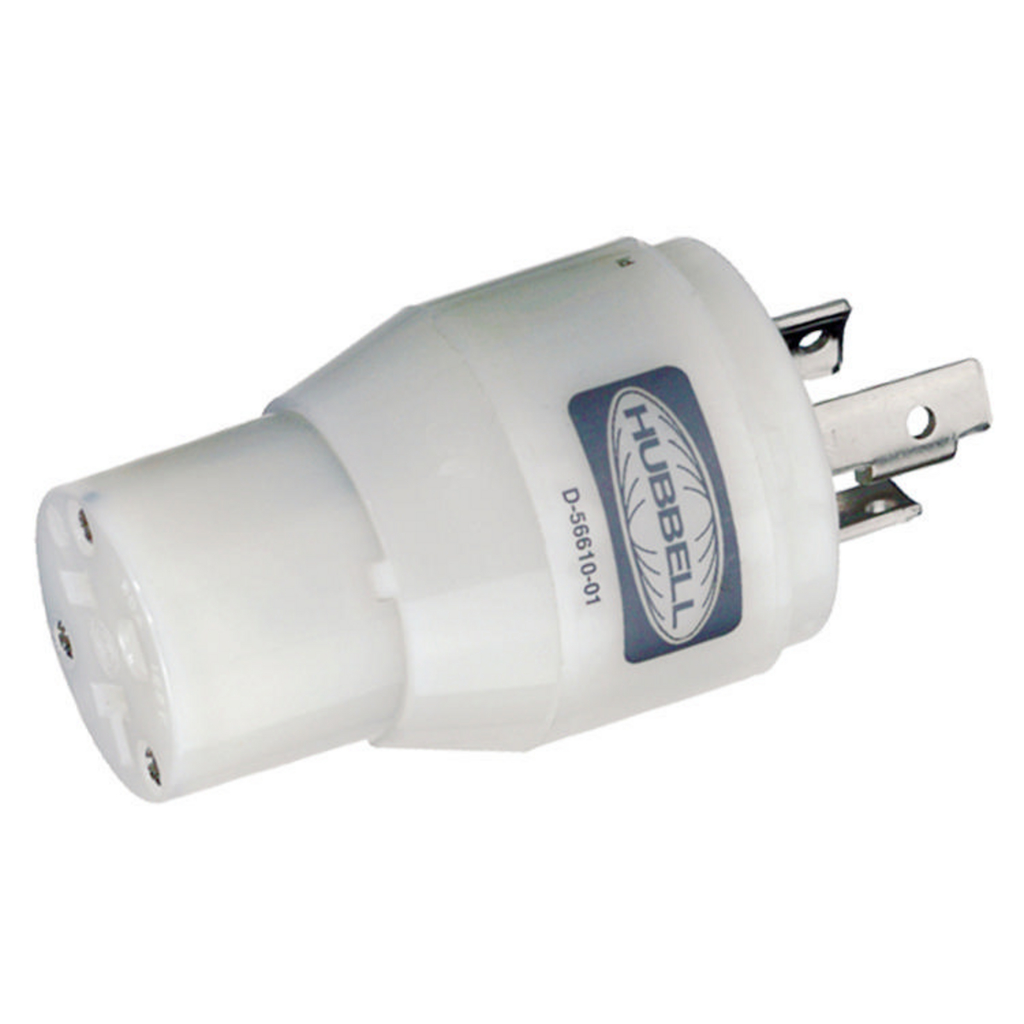

Marine Adapter L5 to NEMA 5 – Marine Electrical Adapter

This Marine Adapter L5 to NEMA 5 is designed for electrical distributors and lighting solutions requiring secure and reliable connections between locking male plugs and straight blade female receptacles. It is suitable for use in wire and cable applications where a 15-ampere current rating is required, providing a safe and compliant solution for marine and indoor dry environments.

Specifications

• Application: Locking Male to Straight Blade Female
• Amperage: 15 amperes
• Current: 15 amperes
• NEMA Rating: L5-30P To 5-15R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire Grounding
• Material: Thermoplastic
• Color: White
• Width: 4.900 in
• Mounting: Plug-In
• Connection: Plug-In
• Product Weight: 0.3000 lbs
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Country Of Origin: Puerto Rico
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL31CM29

Features

• Marine adapter designed to convert NEMA L5 locking male plug to NEMA 5-15R straight blade female receptacle
• Constructed with durable thermoplastic for reliable performance
• Ensures grounding continuity with 3-wire grounding configuration
• Compact design with plug-in mounting for ease of installation
• Rated for 15 amperes, suitable for standard marine and indoor electrical applications
• White color for easy identification in wiring setups

Downloads & Links

• Installation Manuals Asset Reference
• Catalog Page Asset Reference 2
• Hubbell Marine Full Line Catalog
• Catalog Full Asset Reference
• Catalog Page Asset Reference 3
• Warranty Document Asset Reference
• Sales Drawing Asset Reference
• Spec Sheet
• Catalog Page Asset Reference 1
• 0-Series Marine Electrical Products
• HBL31CM29 AutoCAD Drawing
