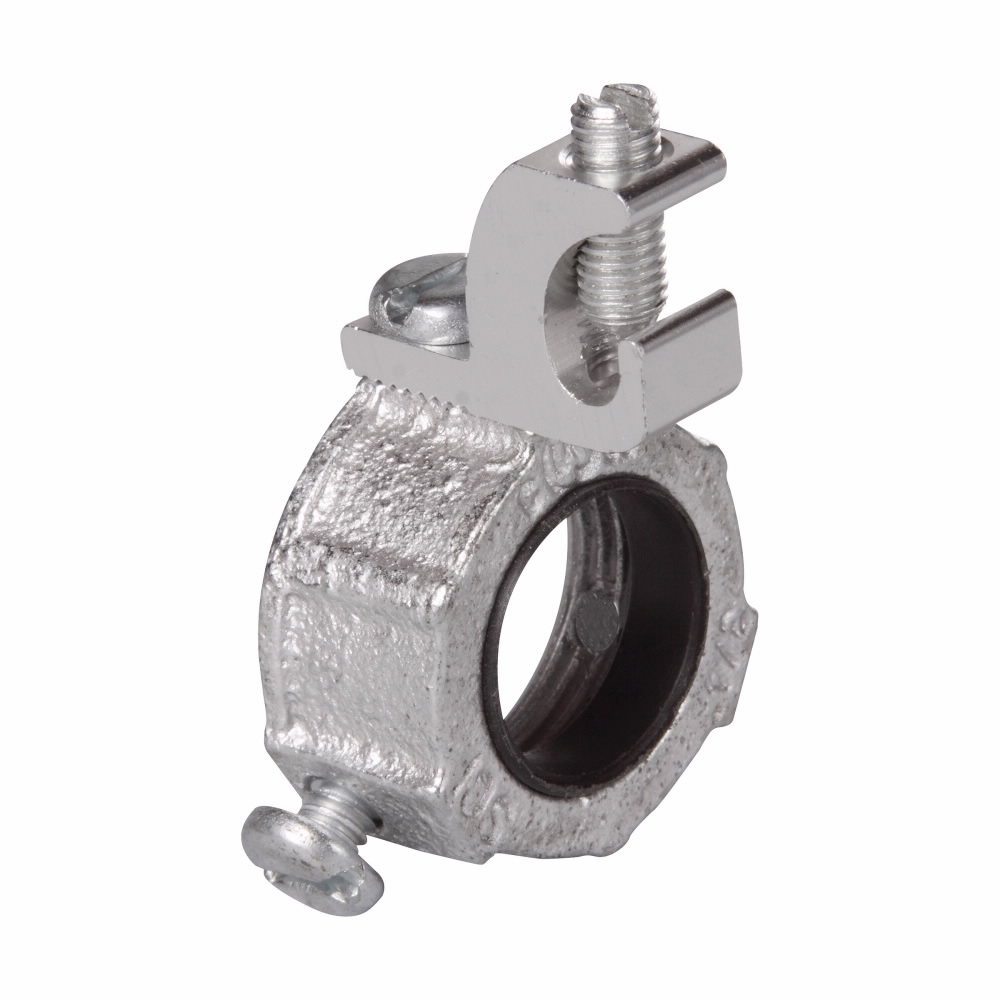

Malleable Iron Insulated Grounding Bushing, 3 Inch – Grounding Conduit Fitting

This malleable iron insulated grounding bushing is designed for use on threaded rigid or IMC conduit to provide a reliable means of grounding conduit through an insulated bushing. It is suitable for commercial and institutional building applications, serving as an essential component in electrical distribution and switchgear systems.

Specifications

• Manufacturer: Crouse-Hinds
• Manufacturer Part #: HGLL 8
• Material: Iron
• Size: 3 inch
• Width: 4 in
• Height: 1 in
• Length: 4 in
• Product Weight: 0.6970 lbs
• UPC: 784564113177
• Application: Commercial / Institutional Buildings / Structures

Features

• Resilient plastic liner resists corrosion, chemicals, and temperature extremes
• Insuliner – ULTEM1000 rated at 150°C
• Zinc plated finish for durability
• Includes aluminum lug for copper or aluminum grounding conductors (threaded)
• UL File No. E-6225 certification
• One set screw provided to lock bushing in any desired position
• External stainless steel hardware standard
