Features

• Designed for the most extreme, demanding conditions, the 49 Series of high amperage devices includes male and female plugs, panel mount receptacles and accessories. They are an ideal solution for installations on both new and existing silicon-controlled rectifiers (SCRs) and generator stations as well as on generator stations and new oil or gas rigs.
• Color-coded connector insulator for quick visual identification of circuit and phase connections
• UV stable, high-performance TPV insulator resists cracking for greater service life
• Leviton plugs mate with other manufacturers' high-amperage single pole plugs and receptacles for fast, easy change out

Color Variations

• Blue

Specifications

• Country of Origin: Please Contact Customer Service
• RoHS Compliant: False

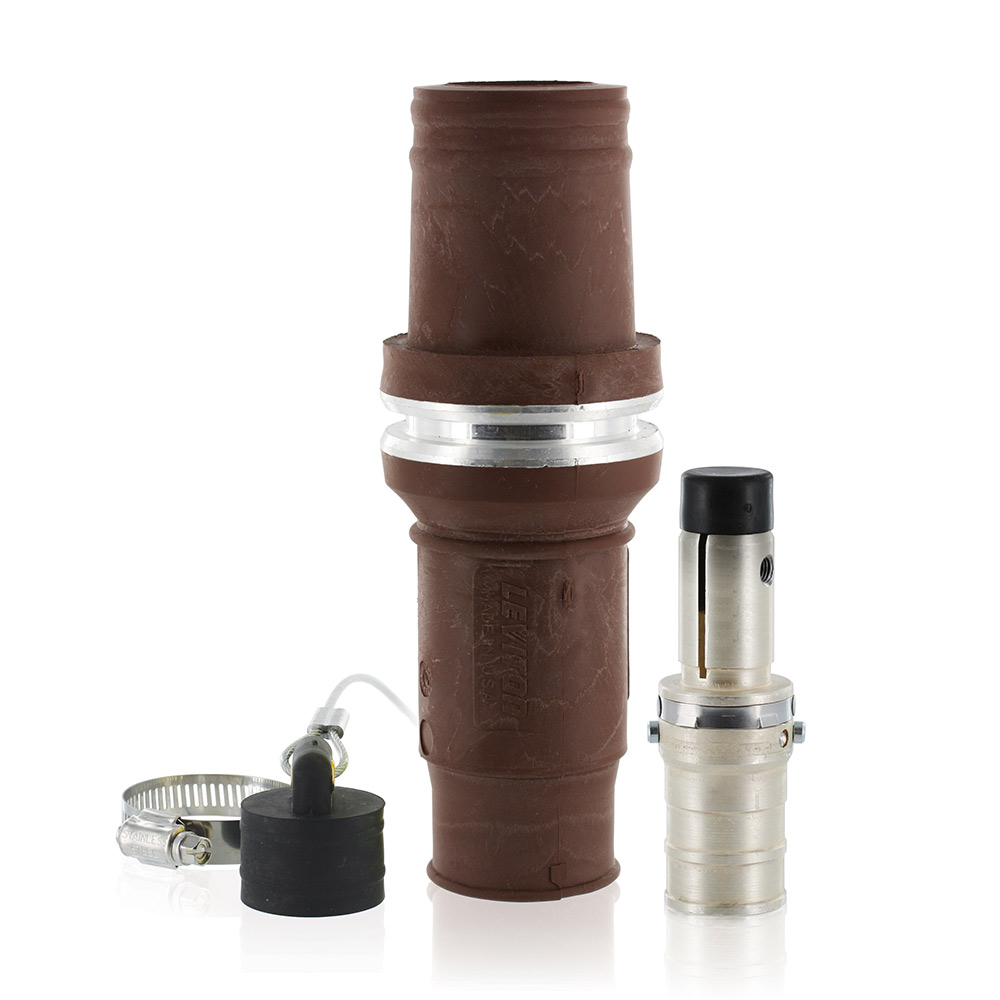

Material Specifications

• Cable Clamp: Stainless Steel
• Connector Insulator: Santoprene TPV
• Connector Retention Ring: Anodized Aluminum
• Dust Cap: Santoprene TPV
• Male Contact: Silver-Plated High Conductivity Alloy

Product Features

• Color: Brown

Electrical Specifications

• Max. Amperage: 898
• Max. Voltage: 1000 Volt

Standards and Certifications

• NEMA Rating: Type 3R
• UL: Recognized Component

Downloads

Instruction Sheet

Dimensional Drawing
