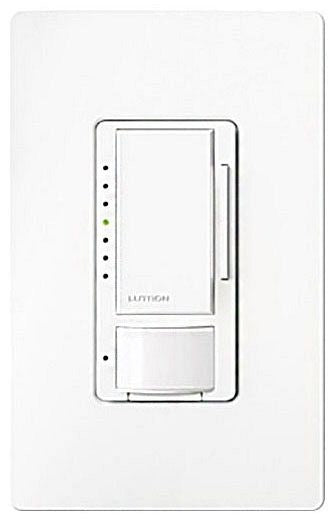

MAESTRO LED+ PIR OCC SENSOR BOX WHITE - Lighting Control Dimmer Switch

The Lutron Maestro LED+ PIR Occupancy Sensor Dimmer Switch is designed for automated lighting control in residential and commercial applications. This device integrates advanced passive infrared (PIR) motion sensing with dimming capabilities to automatically and gradually adjust lighting levels based on occupancy and ambient light conditions. Suitable for use with dimmable LED, CFL, incandescent, and halogen bulbs, it supports single-pole, multi-location, and 3-way wiring configurations, making it a reliable solution for electrical distributors and lighting solutions providers seeking efficient wire and cable management and switchgear supply.

Specifications

• Application: Lighting Control
• Load Capacity: 600 W incandescent/halogen, 140 W CFL/LED
• Body Material: Plastic
• Color: White
• Mounting Type: Wallbox
• Enclosure Material: Plastic
• Operating Temperature: 32 to 104 degrees Fahrenheit
• Environmental Conditions: 0 to 90% humidity, non-condensing, indoor use only
• Product Weight: 0.34 lbs
• Manufacturer Part Number: MSCL-OP153M-WH

Features

• Passive infrared (PIR) sensor with Lutron's exclusive Cross Correlation Technology (XCT) for fine motion detection, including minor activities like typing or reading
• 180-degree field of view with coverage up to 900 sq ft for major motion and 400 sq ft for minor motion
• Smart Ambient Light Detection (ALD) prevents lights from turning on when sufficient natural light is present
• Adjustable timeout settings (1, 5, 15, or 30 minutes) to control how long lights remain on after room vacancy
• Supports occupancy and vacancy modes to comply with Title 24 energy codes
• Compatible with up to 9 Maestro companion dimmers for multi-location dimming
• Raise/lower buttons allow manual adjustment of brightness and preset light levels
• Tamper-resistant lens protects the sensor
• Available in multiple colors; pairs with Lutron Claro wall plates for consistent color matching (wall plates sold separately)
