LW004NR Load Center - Electrical Load Center for Residential Applications

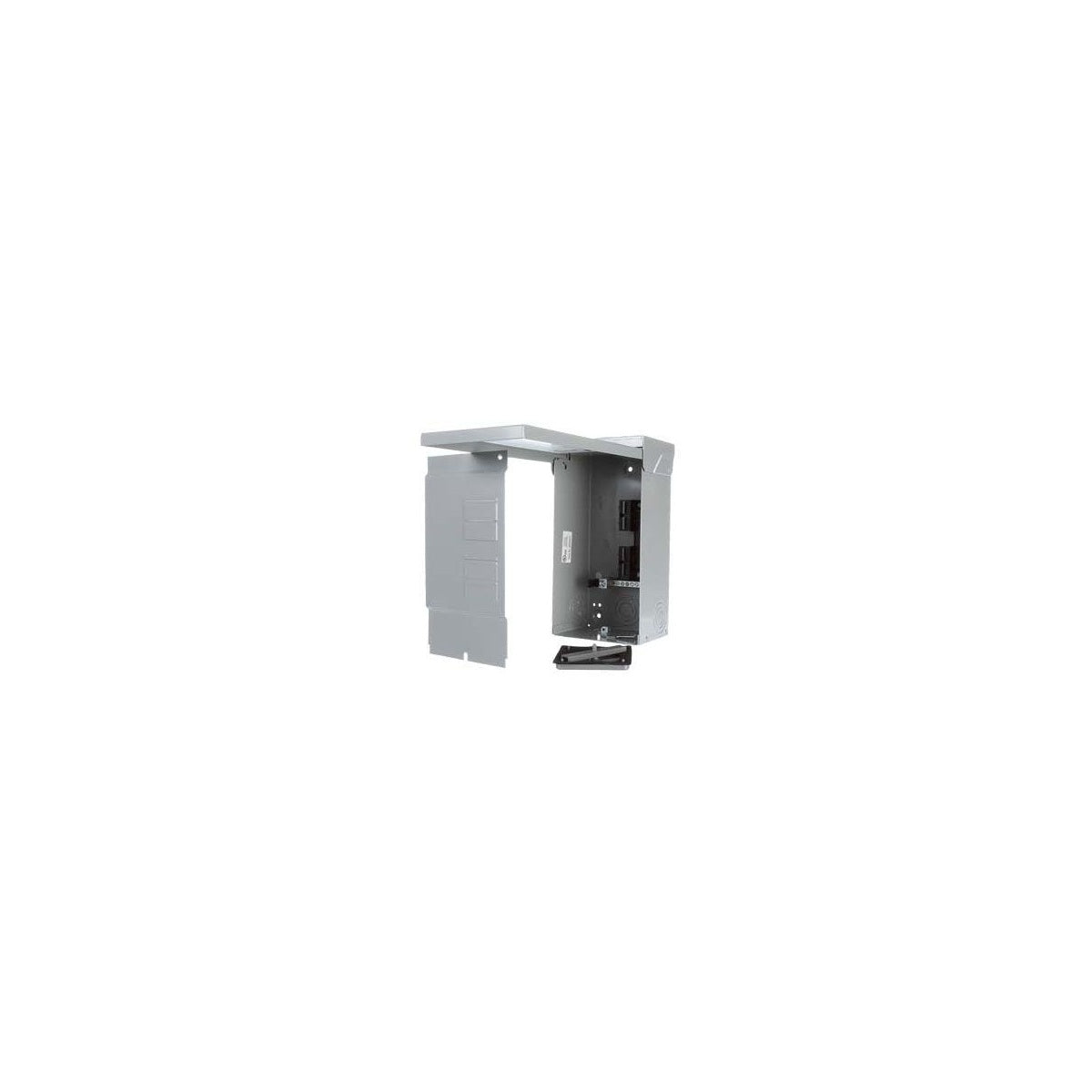

The LW004NR Load Center by Siemens is a residential load center designed for outdoor use with a NEMA 3R enclosure. It supports 1-phase, 3-wire electrical systems at 120/240 volts and is rated for a current of 125 amperes. This load center is suitable for electrical distributors and switchgear suppliers focusing on residential lighting solutions, wire and cable installations, and circuit protection.

Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 125 Amp
• Circuit Configuration: 1-Phase, 3-Wire
• Maximum Number of Circuits: 8
• Maximum Number of Spaces: 4
• Interrupting Rating: 22 Kiloamp
• Bus Material: Aluminum
• Main Wire Size: #12 to 2/0 AWG (Aluminum), #14 to 2/0 AWG (Copper)
• Enclosure Type: NEMA 3R, Outdoor
• Cover Type: Surface
• Dimensions (HxWxD): 12.1 Inch x 6.2 Inch x 4.4 Inch
• UL Approval: Yes
• Product Weight: 6.89 lbs

Features

• Outdoor-rated NEMA 3R enclosure suitable for residential applications
• Surface-mounted cover for ease of installation and maintenance
• Compatible with copper and aluminum wiring, supporting a wide range of conductor sizes
• UL listed for safety and compliance with electrical codes
• Designed to accommodate up to 8 circuits with 4 spaces, optimizing space for branch circuit breakers
