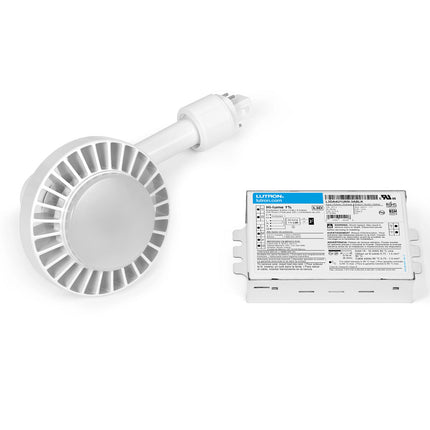

LUTRON 3LDPCA-1K35-1 CFLEX RPG24Q142H1L8353WKG2 Retrofit Kit for Fluorescent Lamp and Ballast Upgrade

This Lutron ballast retrofit kit by C-Flex is designed for upgrading fluorescent lamps to LED technology, providing a reliable solution for electrical distributors and lighting solutions providers. It supports compact lamp types with adapter arms and is compatible with up to 42W G24q base (horizontal) lamps. The kit simplifies LED upgrades by utilizing existing wiring and controls, making it suitable for wire and cable installers and switchgear suppliers managing lighting retrofits.

Specifications

• Application: Fluorescent lamp and ballast upgrade kit
• Color: White
• Dimensions (L x W x H): 6.5 in x 8.75 in x 4.75 in
• Product Weight: 2.0000 lbs
• Mounting: Square with studs (K can)
• Lamp Type: Compact with adapter arm
• Fixture Type: 3-Wire BT Retrofit
• Compatibility: Up to 42W G24q base (horizontal)

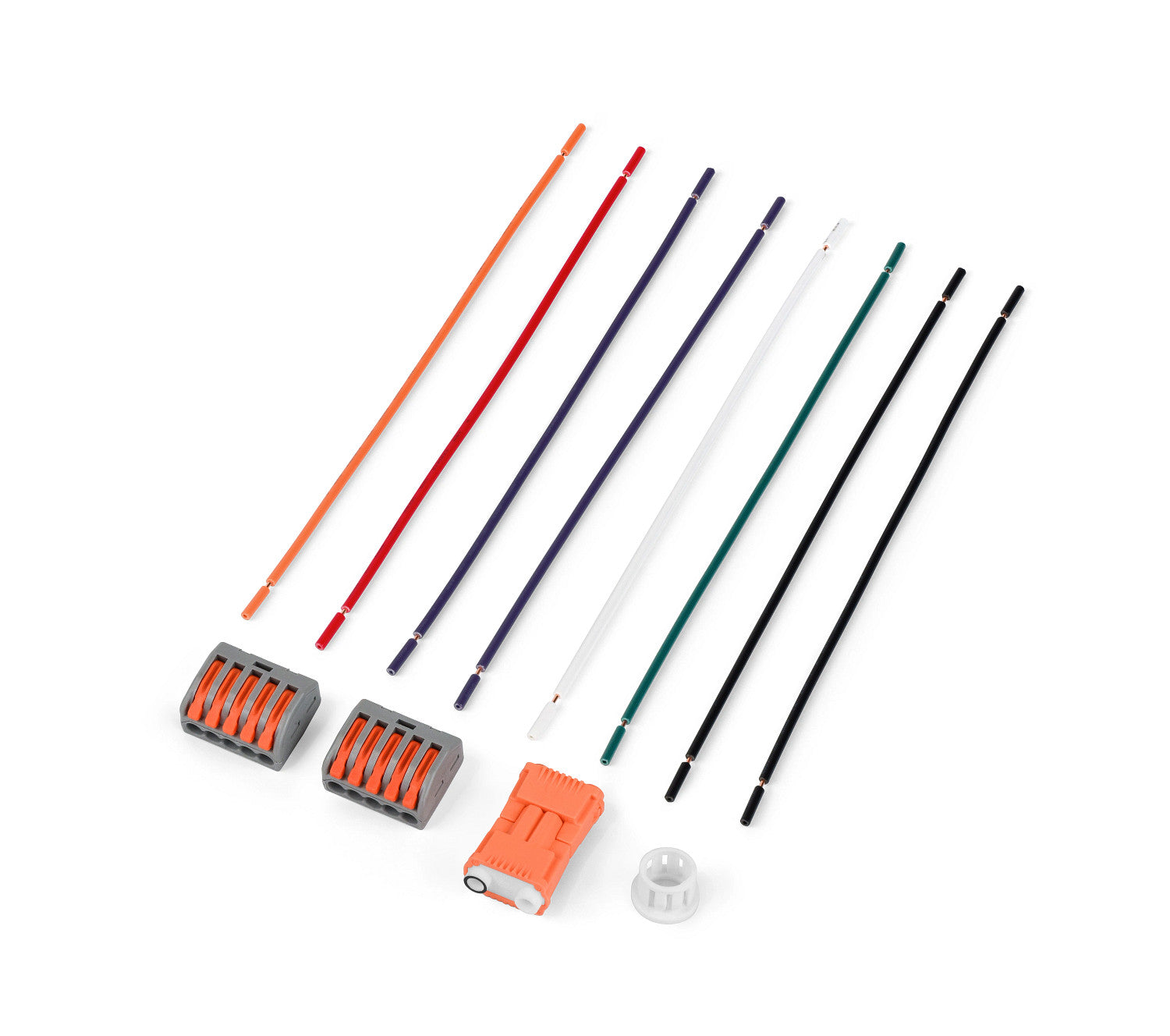

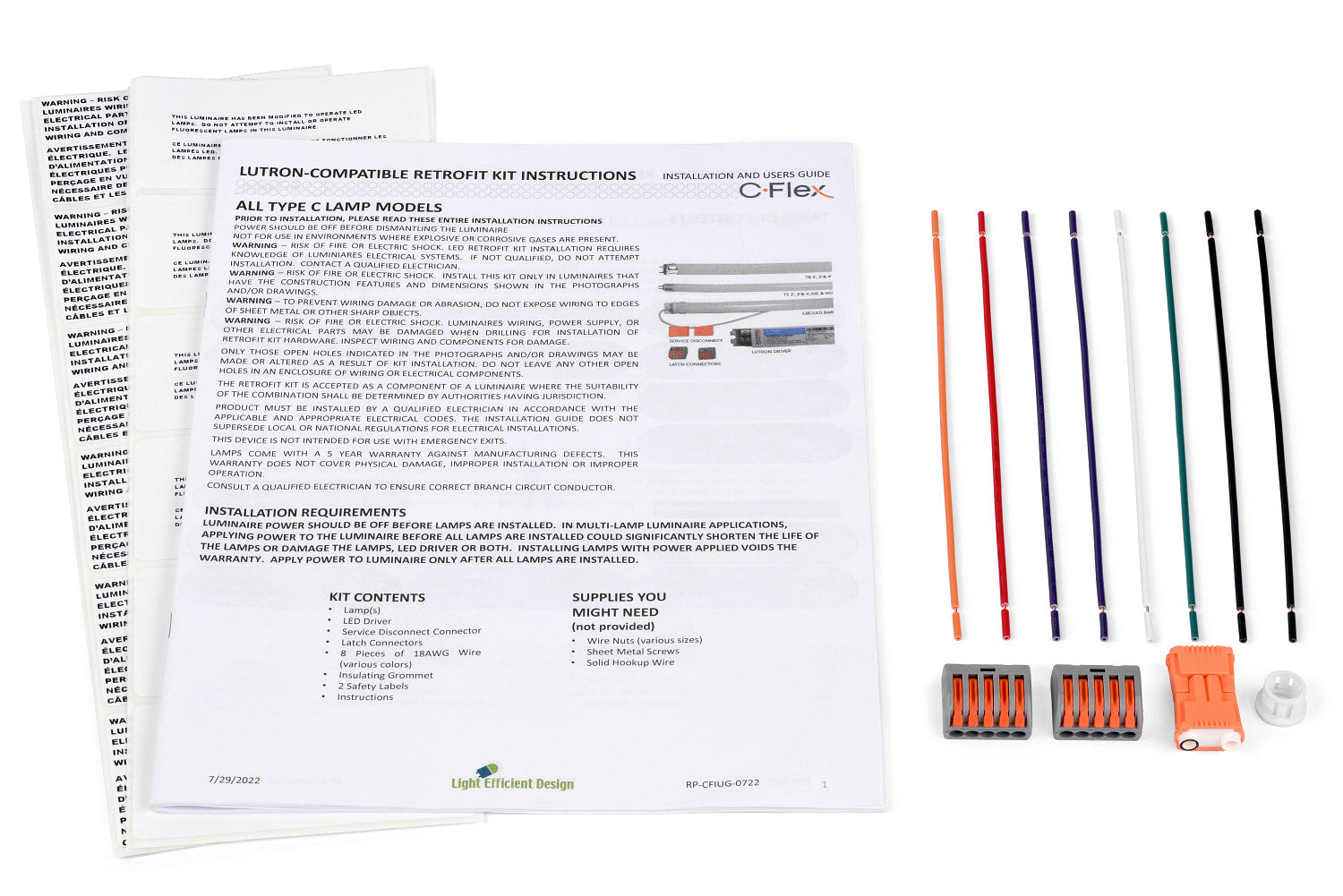

• Consists Of: Lamps, drivers, wires, connectors, and instructions
• Manufacturer: Lutron Electronics Company Inc
• Manufacturer Part #: 3LDPCA-1K35-1

Features

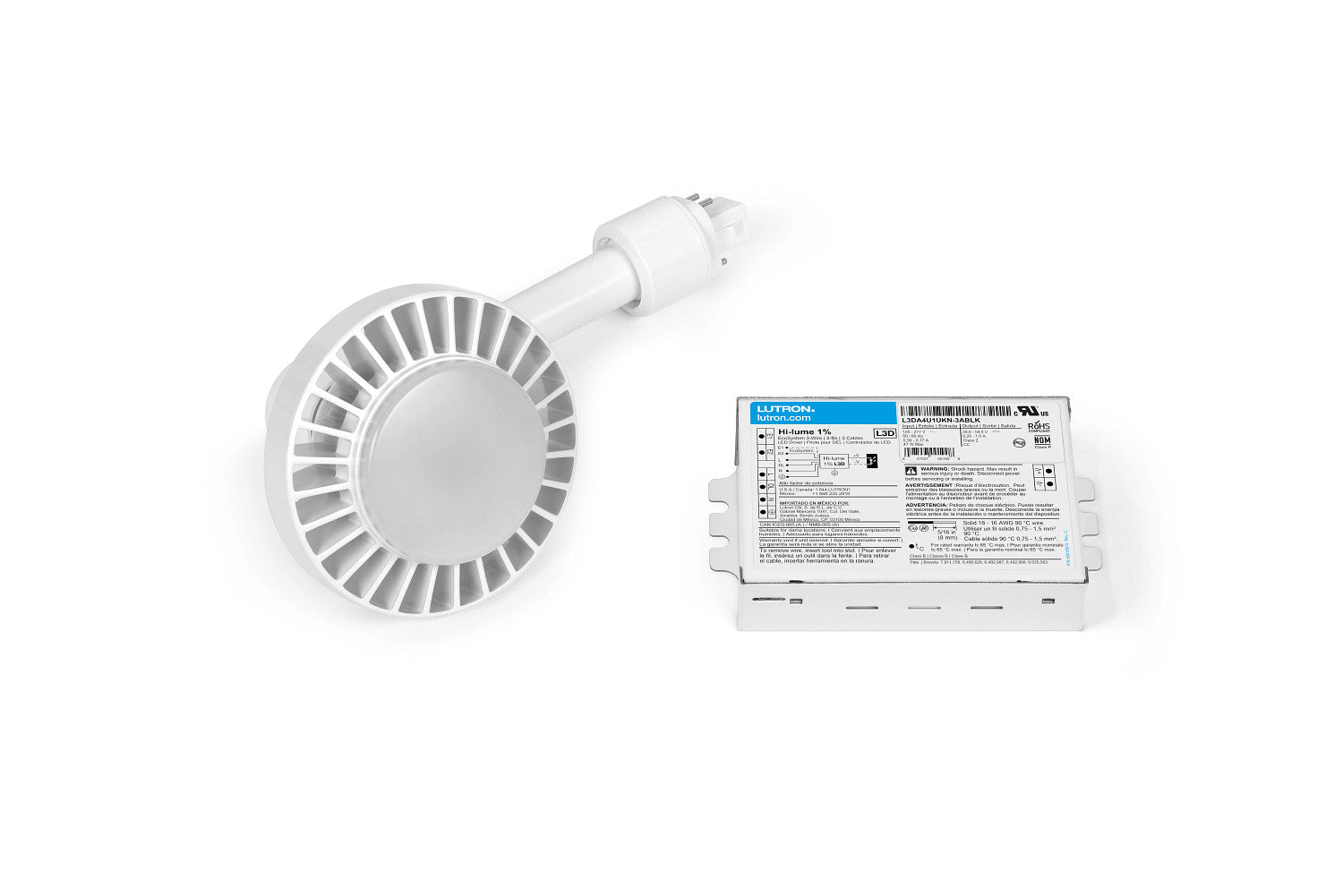

• Includes Lutron LED drivers and C-Flex lamps, UL Listed and pretested
• In-stock solution for 1:1 retrofits with existing fluorescent dimming ballast systems
• LED drivers have identical form factor and wiring locations as original ballasts
• Works with 3-wire and Lutron EcoSystem controls
• Simple installation with no new wiring required and no ceiling access needed
• Compatible with existing control system hardware without special programming
• Five-year warranty on driver and LEDs

Downloads & Links

• Spec Sheet
