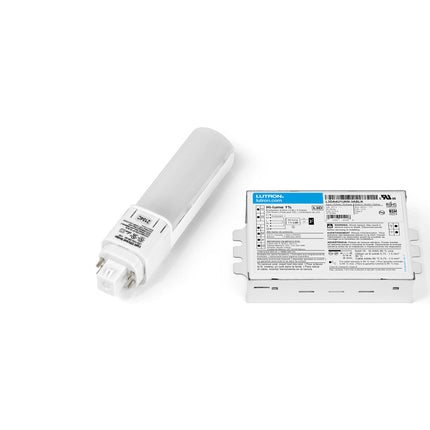

LUTRON 3LDHCF-1K35-1 CFLEX RPG24Q126H1L8353WKG2 LED Retrofit Kit

This Lutron ballast retrofit kit by C-Flex is designed for upgrading fluorescent lamps to LED lighting, providing a simple and efficient solution for electrical distributors and lighting solutions providers. It is intended for use as a fluorescent lamp and ballast upgrade kit compatible with compact fluorescent lamps and fixtures with up to 26W G24q base (horizontal). The kit includes lamps, drivers, wires, connectors, and instructions, making it suitable for wire and cable applications as well as switchgear suppliers looking to support LED retrofits using existing control wiring.

Specifications

• Application: Fluorescent lamp and ballast upgrade kit
• Color: White
• Dimensions: 8.75 in (Width) x 4.75 in (Height) x 6.5 in (Length)
• Product Weight: 2.0 lbs
• Mounting: Square with studs (K can)
• Lamp Type: Compact fluorescent
• Fixture Type: 3-Wire BT Retrofit
• Compatibility: Up to 26W G24q base (horizontal)

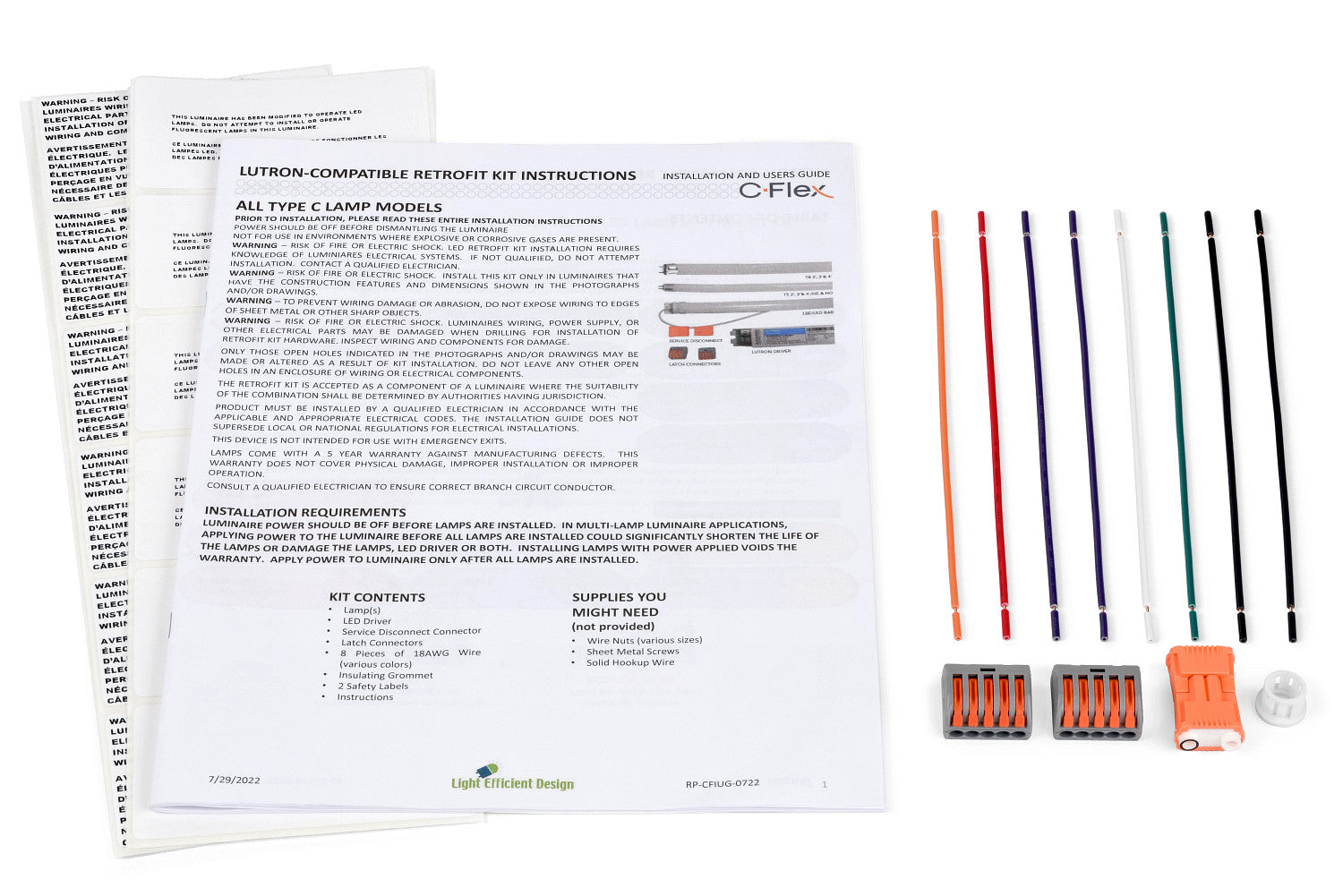

• Consists Of: Lamps, drivers, wires, connectors, and instructions
• Manufacturer: Lutron Electronics Company Inc
• Manufacturer Part #: 3LDHCF-1K35-1

Features

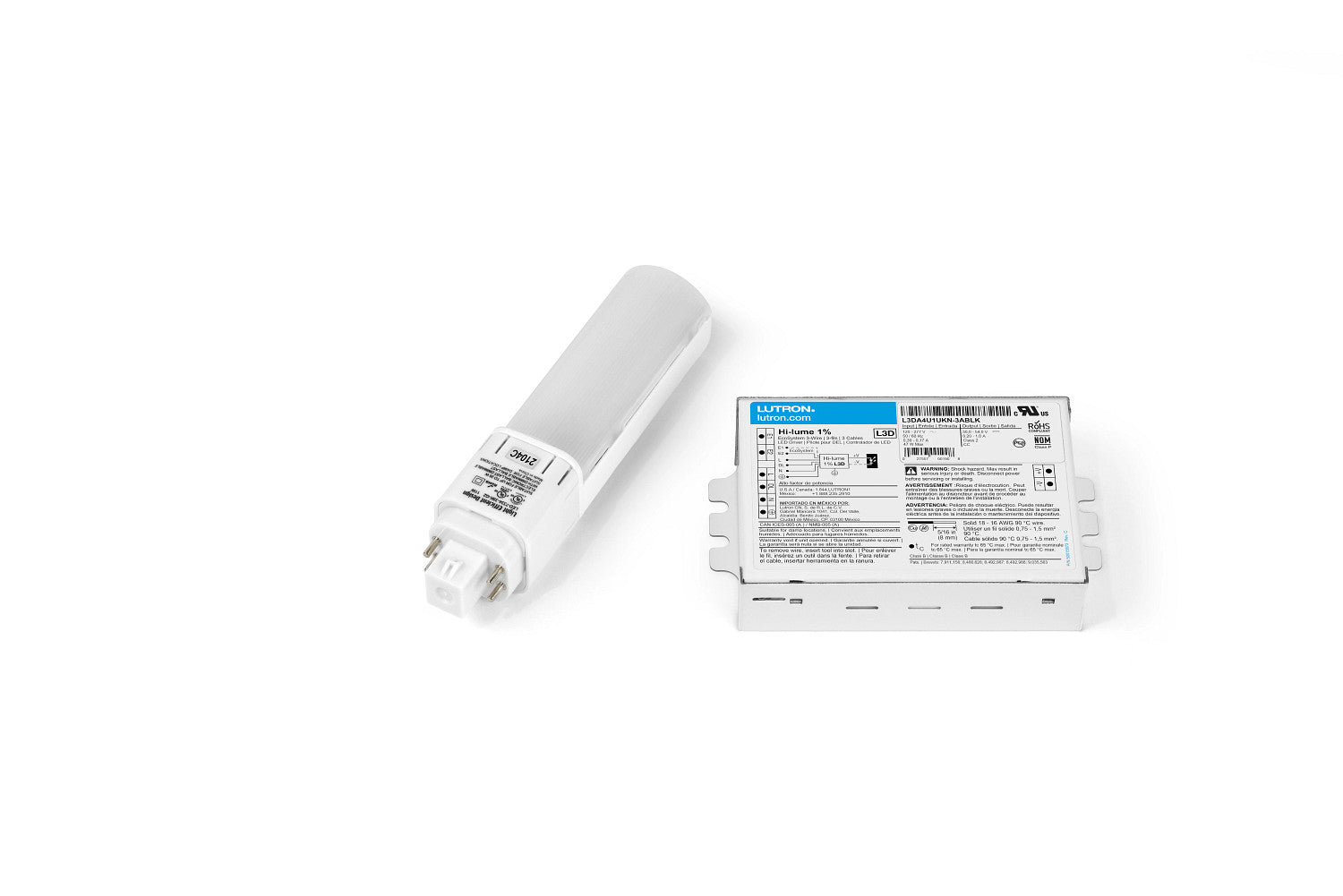

• Includes Lutron LED drivers and C-Flex lamps, UL Listed and pretested
• In-stock solution for 1:1 retrofits of fluorescent to LED
• LED drivers have identical form factor and wiring locations as existing ballasts
• Compatible with 3-wire and Lutron EcoSystem controls
• Five-year warranty on the driver and LEDs
• Simple installation with no new wiring required and no need to open ceilings
• Supports retrofit using existing control system hardware without special programming

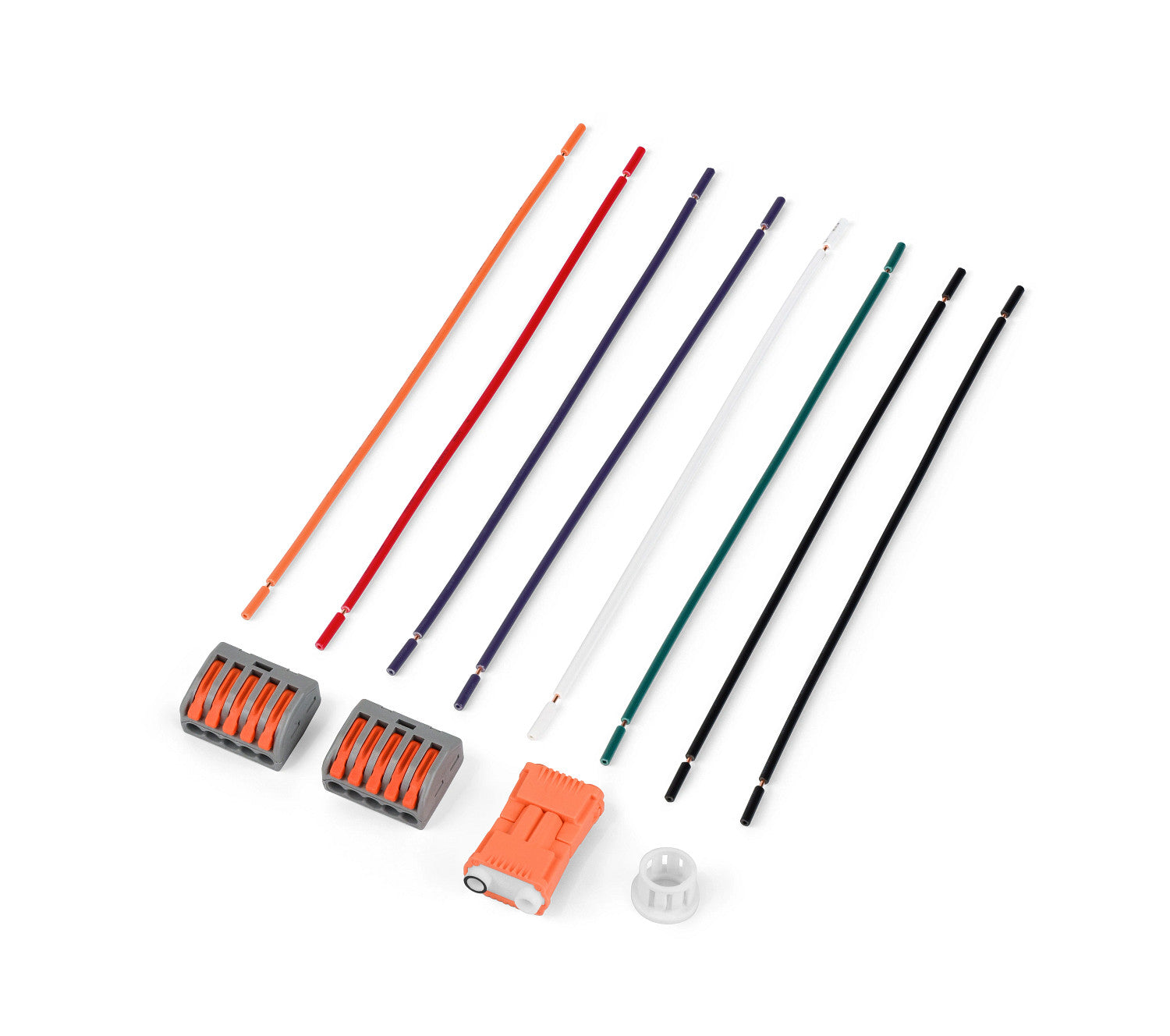

• Kit includes all necessary connectors, labels, and installation instructions

Downloads & Links

• Spec Sheet
