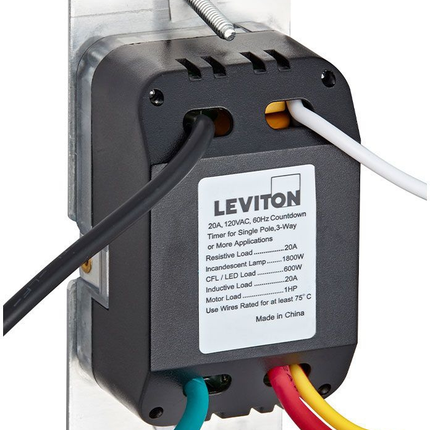

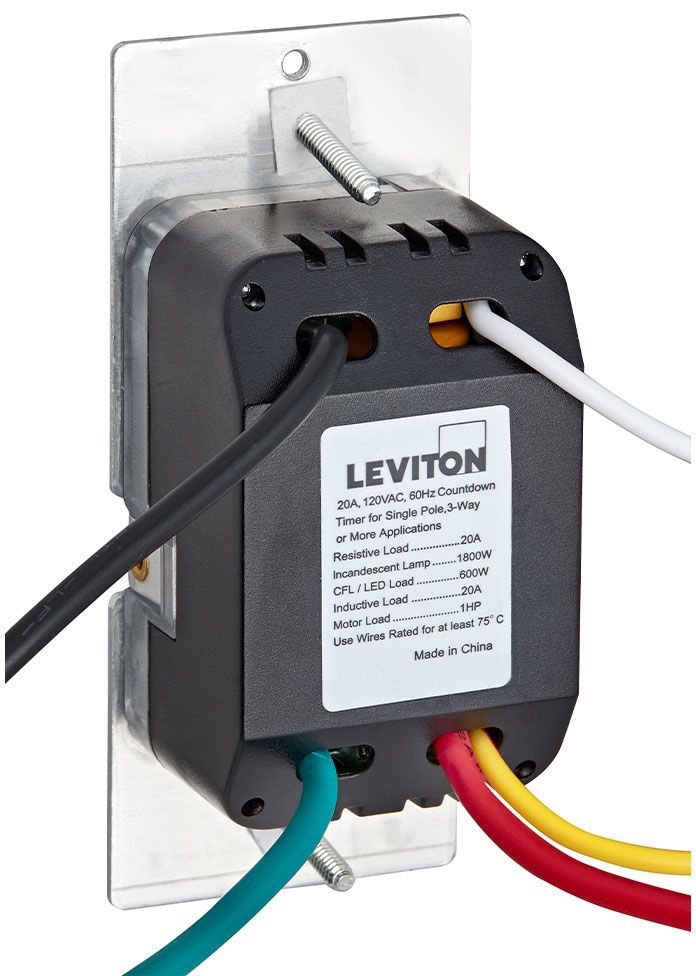

LTB60-1LZ, Electronic Timer Switch
SKU: #32744
Part: #LTB60-1LZ
UPC: 078477459485
LTB60-1LZ, Electronic Timer Switch
SKU: #32744
Part: #LTB60-1LZ
UPC: 078477459485
Next day delivery
Description
LTB60-1LZ, Electronic Timer Switch for Lighting Control
The Leviton LTB60-1LZ Electronic Timer Switch offers precise timed control for lighting and motor loads in residential and small commercial settings. Designed for use by electrical distributors and switchgear suppliers, it automates the operation of heat lamps, hot tubs, attic and exhaust fans, and other lighting solutions. This timer switch supports single pole or 3-way wiring configurations and features intuitive override controls with a soothing green LED locator light. Available in ivory color, it enhances both functionality and aesthetics in electrical wiring and control applications.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: LTB60-1LZ
- Color: Ivory
- Number of Poles: 1
- Rating: 20A Resistive/Inductive, 1800W Incandescent, 1 HP Motor @ 120VAC
- Timer Intervals: 10, 20, 30, 60 minutes
- Operating Voltage: 120VAC, 60Hz
- Product Weight: 4.68 lbs
Features
- Advanced countdown timer with selectable intervals
- Supports single pole or 3-way installations with VP0SR remote switches
- Press and hold top button for override; press and hold two buttons to change timer intervals
- Soothing green LED locator light for easy switch identification
- Three colors included in one box (Ivory included)
- Ideal for automating control of lighting and motor loads in homes, offices, schools, and small commercial applications
