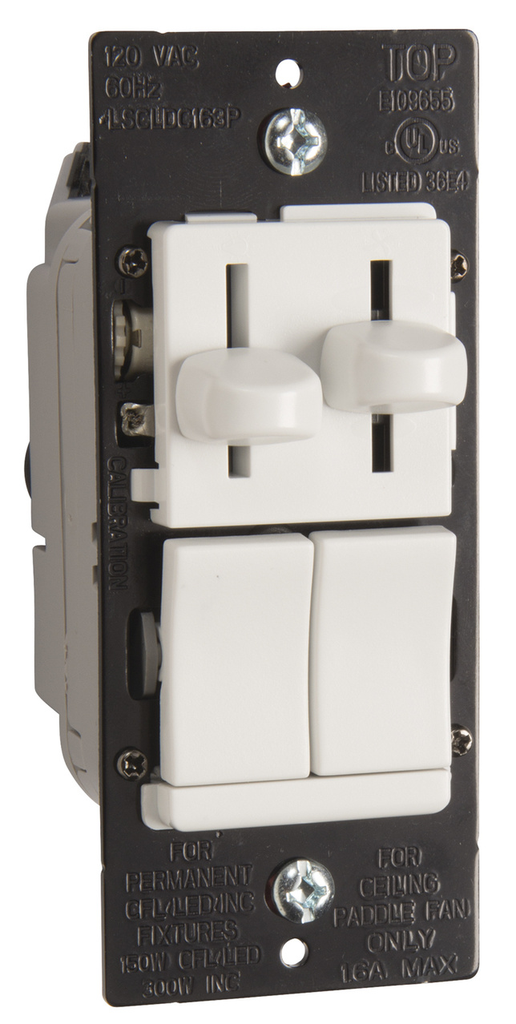

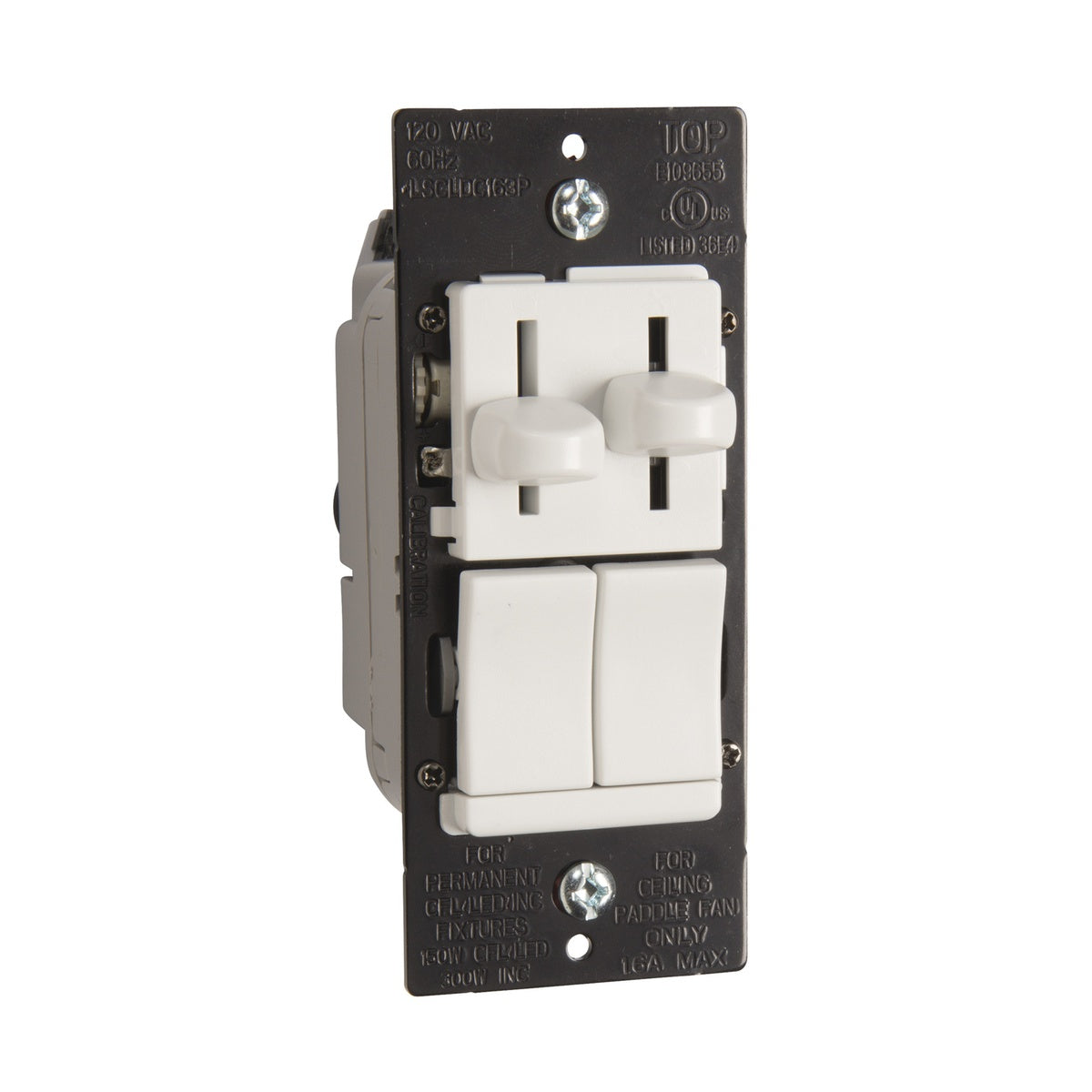

LS Series CFL/LED/Incandescent Single Pole/3-Way Slide Dimmer with Fan Speed Control

The LS Series dimmer by Pass & Seymour integrates lighting and fan speed control into a single device designed for residential applications. It supports dimmable CFL, LED, and incandescent lighting loads while providing 3-speed De-Hummer fan control. This wall-mounted control is suitable for use by electrical distributors and lighting solutions providers offering wire and cable and switchgear products for residential installations.

Specifications

• Application: Residential
• Amperage Rating: 1.6 A
• Number of Poles: 3
• Mounting Type: Box
• Mounting: Wall
• Enclosure Material: Thermoplastic
• Color: White
• Dimensions: 4.19 in (Height) x 2.5 in (Width) x 1.28 in (Depth)
• Operating Temperature: 0¬∞C to 40¬∞C
• Environmental Conditions: Indoor Only
• Manufacturer: Pass & Seymour
• Manufacturer Part Number: LSCLDC163PW
• Country of Origin: China
• Product Weight: 0.3 lbs

Features

• Controls dimmable CFL, LED, and incandescent lighting loads up to 150W for CFL/LED and 300W for incandescent
• 3-speed De-Hummer fan control for ceiling paddle fans up to 1.6A
• Sleek, ergonomic slide control design for precise adjustment of light level and fan speed
• Preset functionality for consistent lighting and fan settings
• Compatible with single pole and 3-way wiring configurations
• Includes calibration adjustment to minimize flicker and ensure smooth dimming performance
• Designed for easy installation in standard wall boxes by certified electricians
• Thermoplastic enclosure provides durability and electrical safety
• Recommended use with copper or copper-clad wire
• Meets UL listing and safety standards for residential electrical devices
