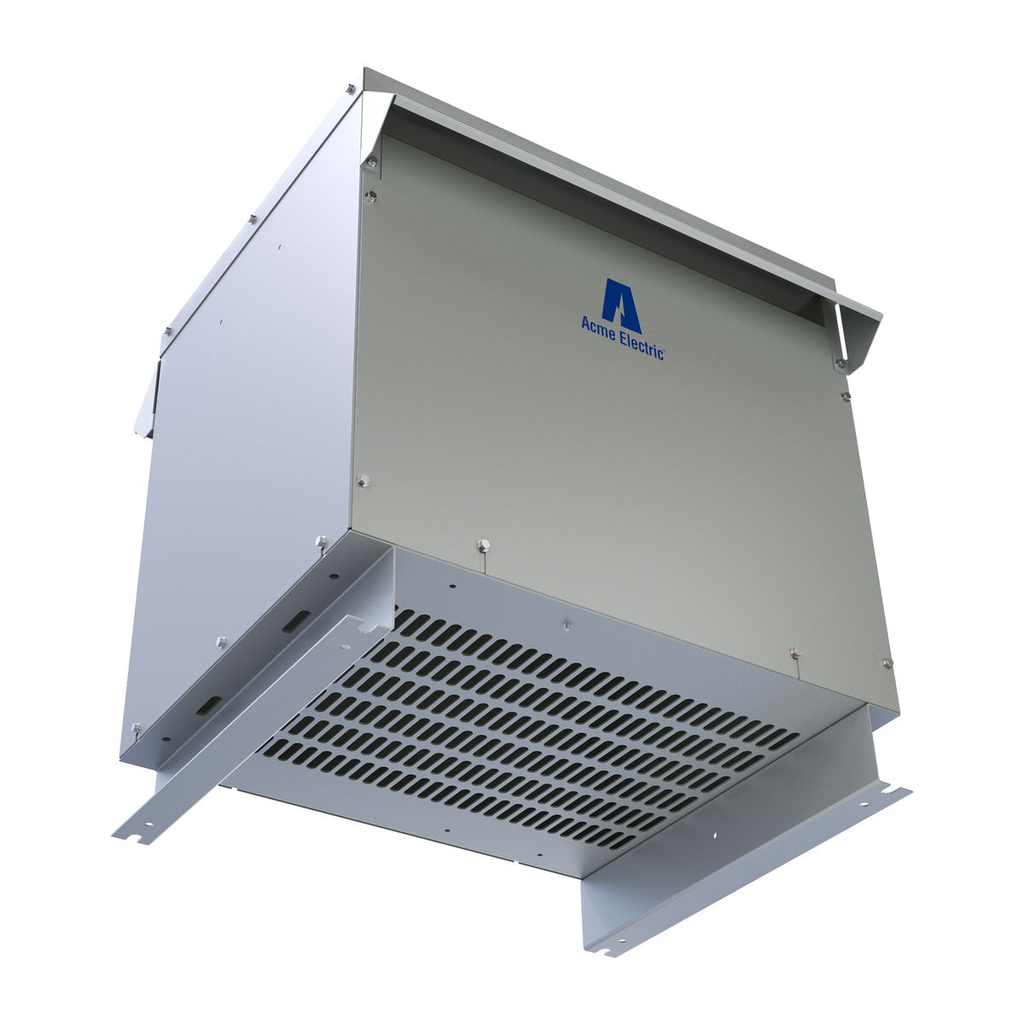

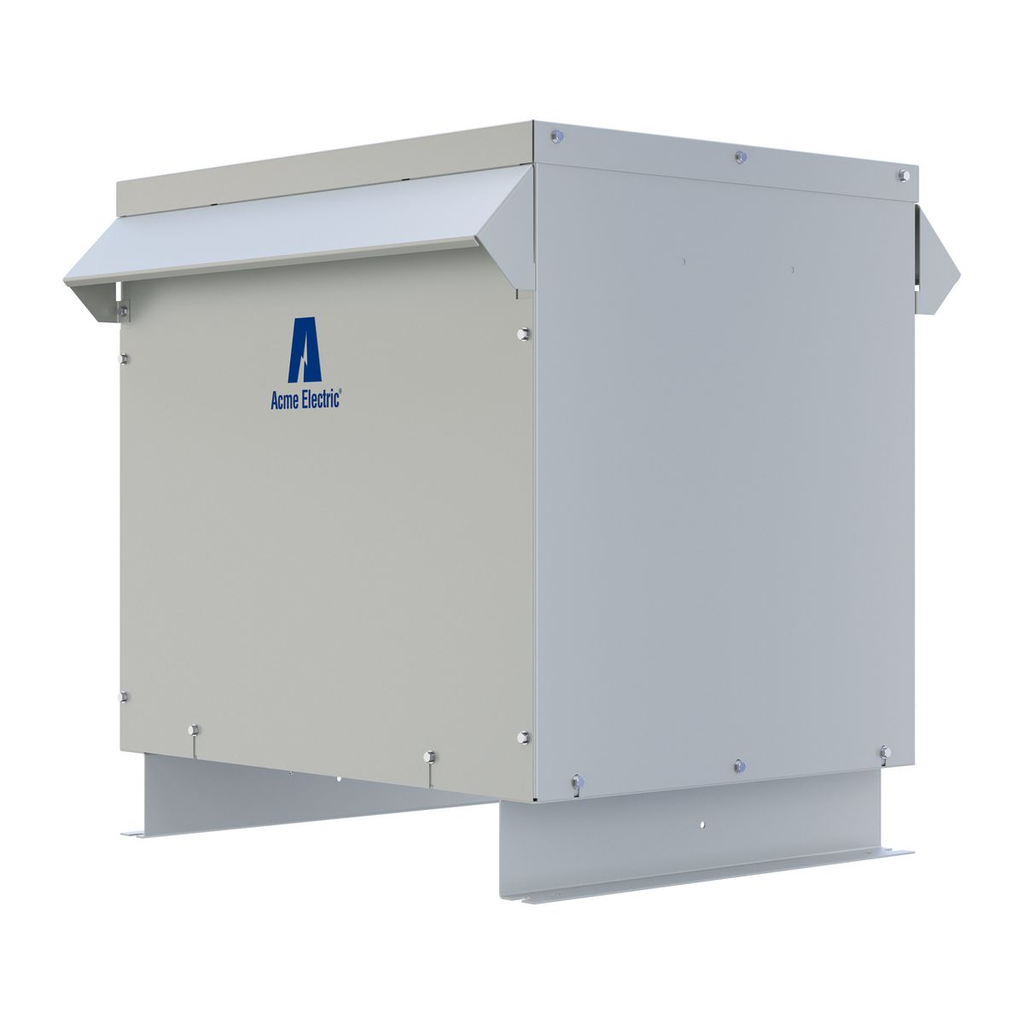

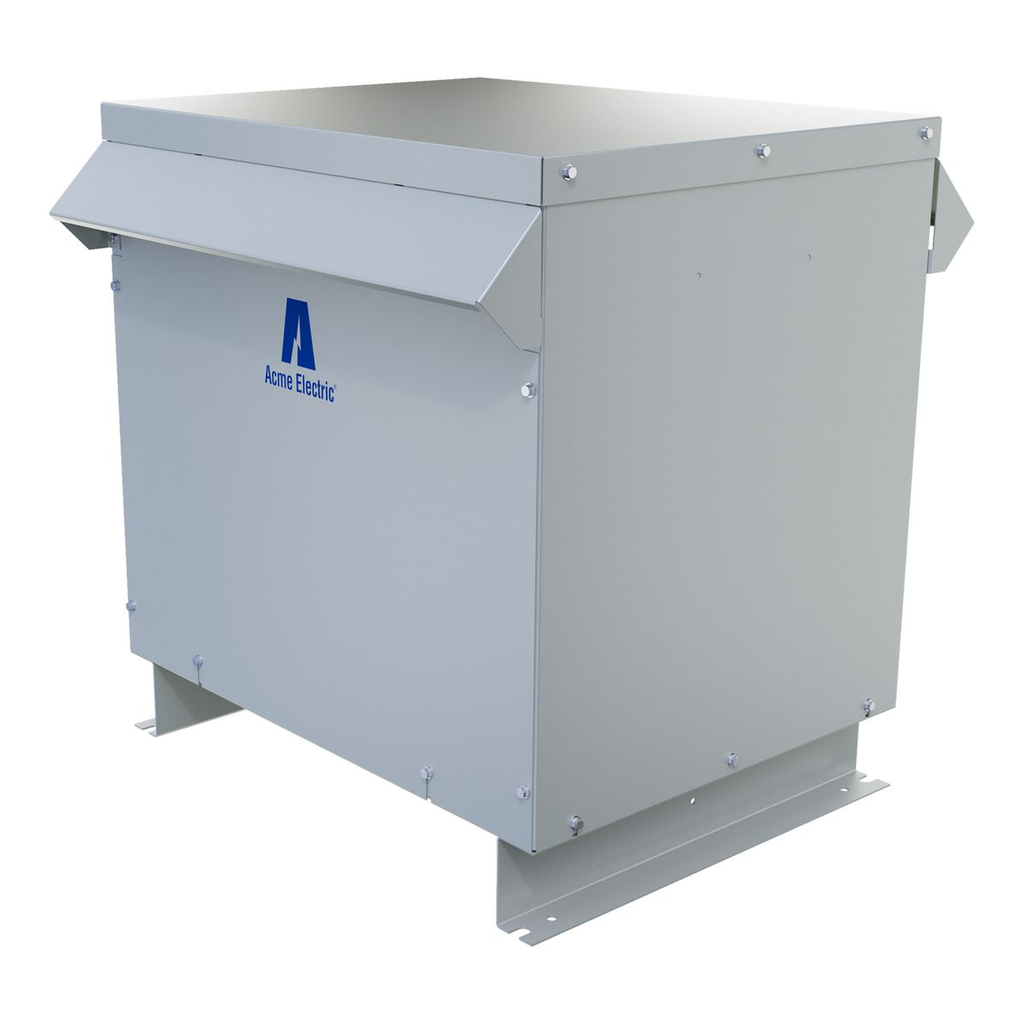

Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 45kVA
SKU: #31840
Part: #T3045K0013B
UPC: 047503091135
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 45kVA
SKU: #31840
Part: #T3045K0013B
UPC: 047503091135
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 45kVA Electrical Transformer
This Low Voltage Distribution Transformer is designed for three-phase electrical distribution applications, providing reliable voltage transformation from 480Δ primary to 208Y/120V secondary at 45kVA capacity. It is suitable for use by electrical distributors and switchgear suppliers in commercial, industrial, and residential settings where efficient power distribution and voltage regulation are required. This transformer supports low voltage distribution needs and is applicable in lighting solutions and wire and cable systems requiring stable and safe voltage conversion.
Specifications
- Product Name: Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 45kVA
- Voltage Rating: 480Δ primary, 208Y/120V secondary
- Phase: Three Phase
- Power Rating: 45 kVA
- Construction: Ventilated
- Material Type: ZFIN
- Width: 24.39 in
- Weight: 430 lbs
- Country of Origin: Mexico
- Manufacturer: Acme Electric
- Manufacturer Part Number: T3045K0013B
Features
- Ventilated construction for effective air cooling while fully encased with no exposed parts
- Designed to provide long life in general purpose applications
- Compact size and easier maintenance compared to liquid-filled transformers
- UL and cUL listed (implied by manufacturer standards and typical product certifications)
- Suitable for indoor or outdoor use in commercial electrical distribution systems
