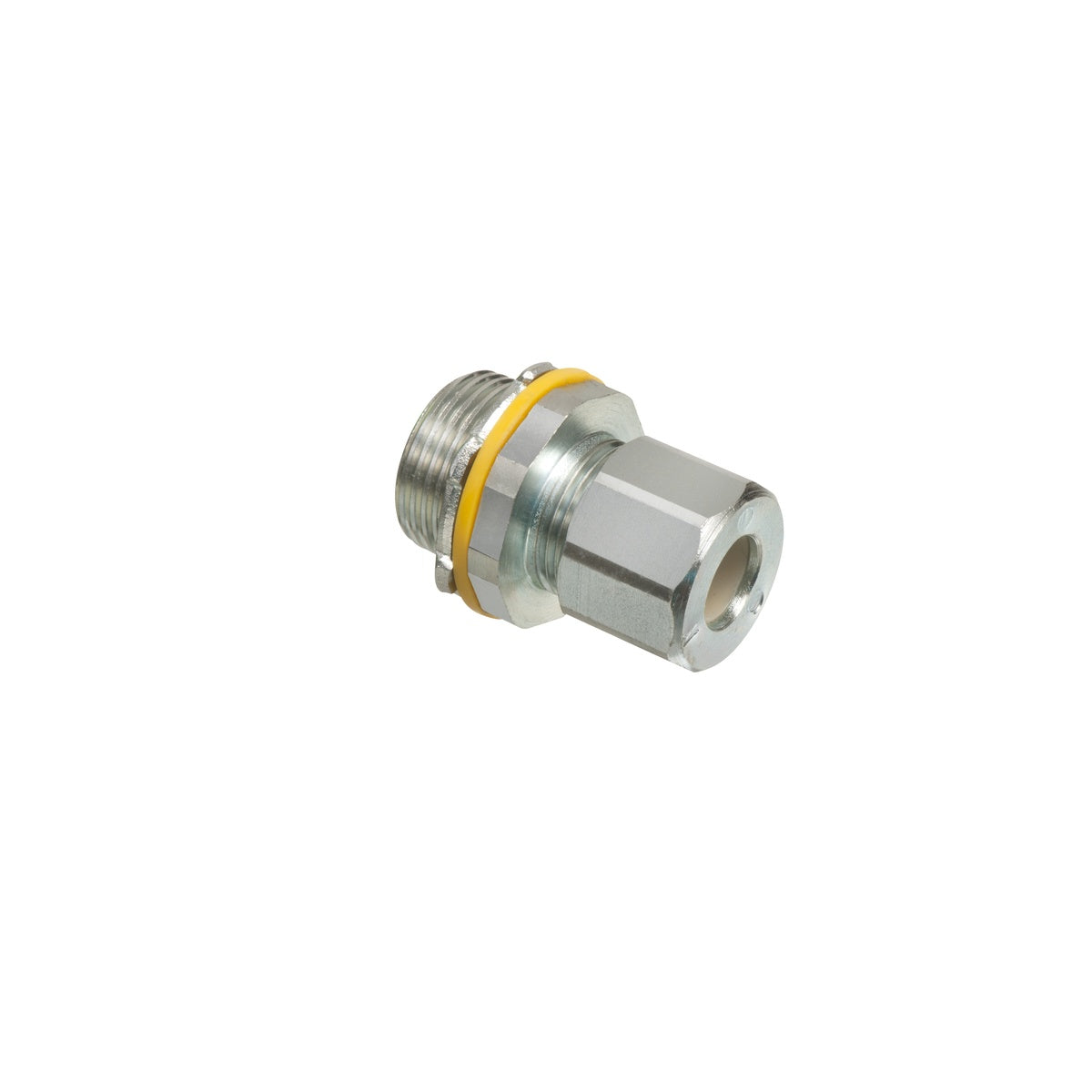

Low-profile zinc plated steel die-cast, liquid-tight, and oil-tight strain relief cord connector furnished with a sealing ring and locknut. Supports 0.240" to 0.472" cord range with a 3/4" trade size.
SKU: #73039
Part: #LPCG754S
UPC: 018997127914
Low-profile zinc plated steel die-cast, liquid-tight, and oil-tight strain relief cord connector furnished with a sealing ring and locknut. Supports 0.240" to 0.472" cord range with a 3/4" trade size.
SKU: #73039
Part: #LPCG754S
UPC: 018997127914
Description
Low-profile zinc plated steel die-cast strain relief cord connector – Cord Connector
This low-profile zinc plated steel die-cast strain relief cord connector is designed for electrical distributors and switchgear suppliers requiring reliable liquid-tight and oil-tight sealing solutions. It supports a cord diameter range from 0.240" to 0.472" with a 3/4" trade size, making it suitable for wire and cable applications needing durable strain relief and protection against environmental factors.
Specifications
- Material: Zinc-Plated Steel
- Color: Silver
- Cord Range: 0.240" to 0.472" diameter
- Trade Size: 3/4"
- Product Weight: 0.2060 lbs
- Manufacturer Part #: LPCG754S
- UPC: 018997127914
Features
- Low-profile design for compact installations
- Liquid-tight and oil-tight seal ensured by a sealing ring and locknut
- Unique grommet with gripping fingers for superior pullout resistance
- Sealing ring furnished for secure installation in non-threaded openings
- Supports widest cord range in the industry, reducing inventory needs
