Low-profile stainless steel die-cast, liquid-tight, oil-tight, and strain relief cord connector furnished with a sealing ring and locknut. Supports 0.100" to 0.360" cord range with a 1/2" trade size.
SKU: #72853
Part: #LPCG503SS
UPC: 018997127945
Low-profile stainless steel die-cast, liquid-tight, oil-tight, and strain relief cord connector furnished with a sealing ring and locknut. Supports 0.100" to 0.360" cord range with a 1/2" trade size.
SKU: #72853
Part: #LPCG503SS
UPC: 018997127945
Description

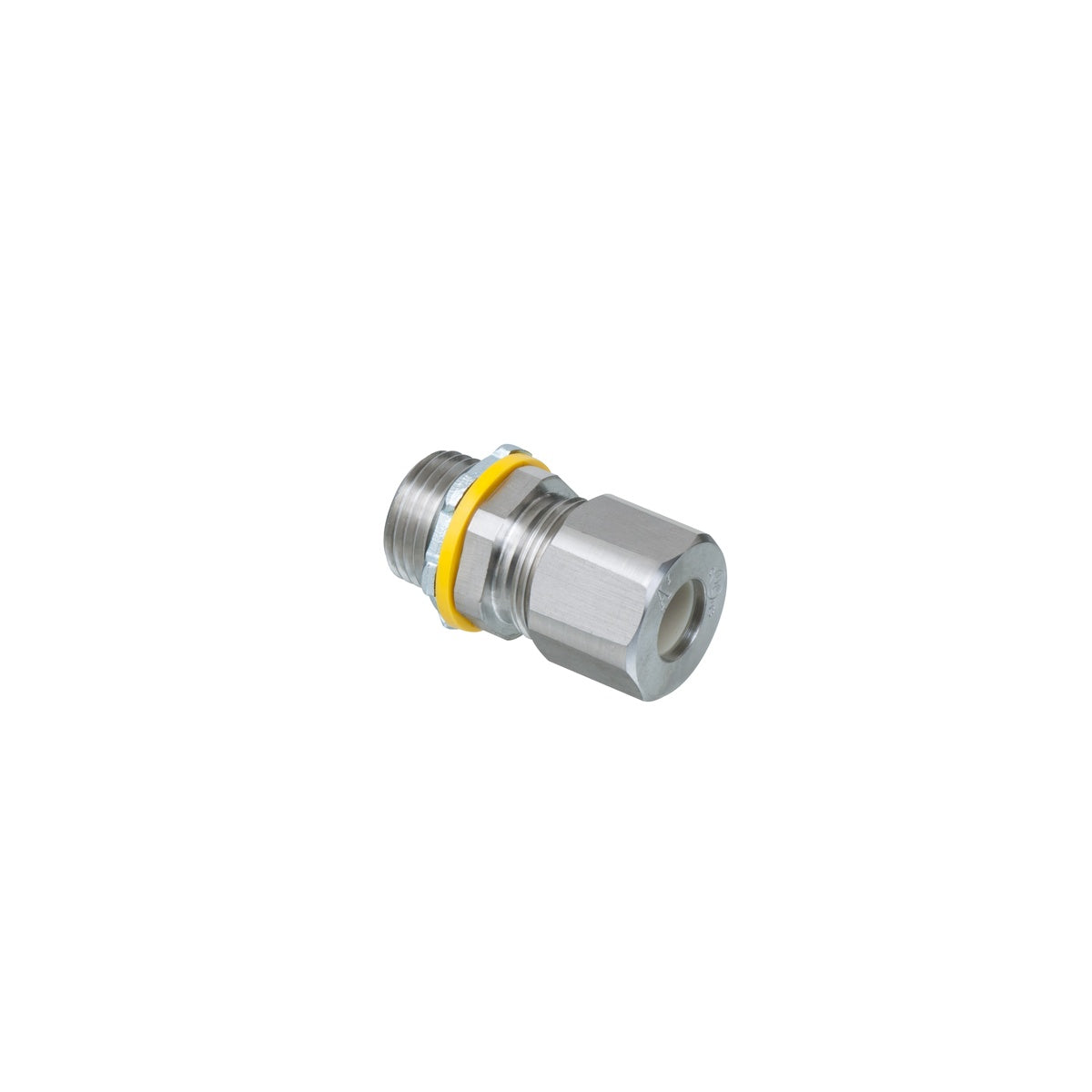

Low-profile stainless steel die-cast cord connector – Strain Relief Cord Connector
This low-profile stainless steel die-cast strain relief cord connector is designed for liquid-tight and oil-tight sealing applications. It is furnished with a sealing ring and locknut, supporting a cord diameter range from 0.100" to 0.360" with a 1/2" trade size. Suitable for electrical distributors and lighting solutions requiring durable wire and cable protection, this connector offers reliable strain relief and environmental sealing.
Specifications
- Material: Stainless Steel
- Color: Silver
- Cord Range: 0.100" to 0.360"
- Trade Size: 1/2"
- Product Weight: 0.1700 lbs
- Manufacturer Part #: LPCG503SS
- UPC: 018997127945
- Dimensions (A x B x C): 1.824" x 0.578" x 1.038"
Features
- Liquid-tight and oil-tight seal with sealing ring
- Furnished with locknut for secure installation
- Low-profile design for compact installations
- Supports wide cable range to reduce inventory needs
- 304 stainless steel construction for corrosion resistance
- Superior pullout resistance via nylon gripper that locks cord when tightened
- Suitable for use in Class I, Division I and II locations per NEC Articles 501.10 and 510.140
